FU 5z/200

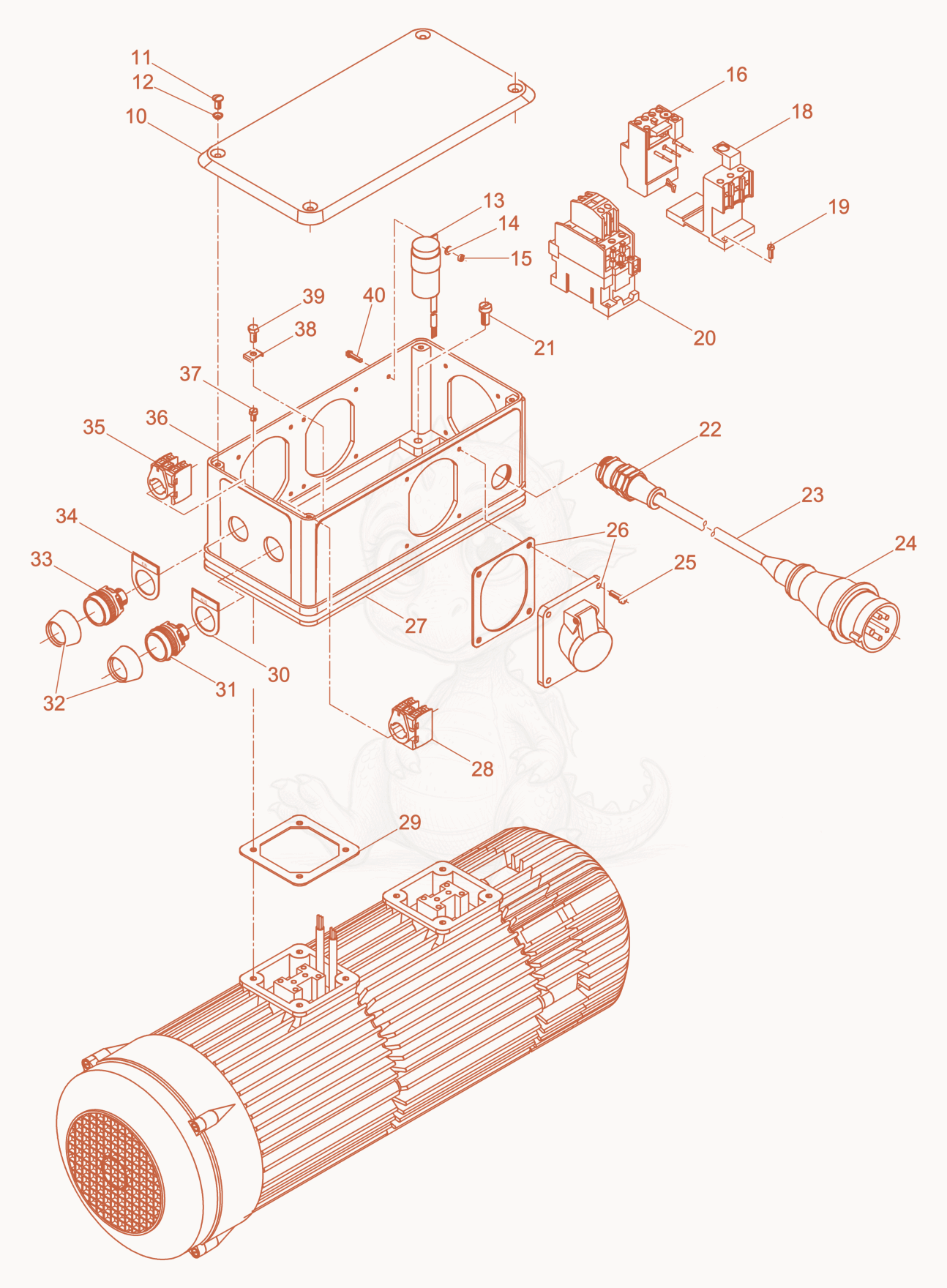

FU5Z/200 Converter cpl. Diagram
- 5000023749Not stockedI.D. sticker×1
- 105000013825Not stockedHousing cover×1
- 105000097868Not stockedSupressor×1
- 115000020997Not stockedCountersunk Screw×4
- 125000037108Not stockedAnnular element×4
- 135000020416Not stockedSuppressor×1
- WASHER A4.3 FLAT - 5000010628×1
- NUT M4 8,HEX. - 5000010872×1
- 165000216537Not stockedprotective motor switch×1
- 185000216538Not stockedmount×1
- SCREW M4 X 12 CHEESE HD. - 5000011723×1
- 205000216539Not stockedPower-break contactor×1
- 215000011693Not stockedCheese head screw×4
- 225002003471Not stockedScrew connection×1
- 235100036635Not stockedPower supply cable×1
- 245000017948Not stockedCEE-plug×1
- SCREW M5 X 16 CHEESE HD. - 5000011713×12
- RECEPTACLE-ELE,3P/32A/42V/CEE - 5000021508Unknown×4
- 265000044399Not stockedMounting socket×4
- SCREW M3 X 30 - 5000097859×1
- 285000065801Not stockedPush button mechanism (off)×1
- 295000020415Not stockedSeal×2
- 305000065806Not stockedPlate (off)×1
- 315000065804Not stockedButton switch (off)×1
- 325000065803Not stockedFront hood×2
- 335000065805Not stockedButton switch (on)×1
- 345000065807Not stockedPlate (on)×1
- 355000065802Not stockedPush button mechanism (on)×1
- 365000065835Not stockedSwitch box×1
- SCREW M5 X 16 CHEESE HD. - 5000011713×8
- 385000013861Not stockedU-shaped frame×1
- SCREW M6 X 12 HX.HD. - 5000012357×1
- SCREW M4 X 16 CHEESE HD. - 5000011722×1
