G110 Generator, Brazil, Premium

G110 Generator/Engine Diagram

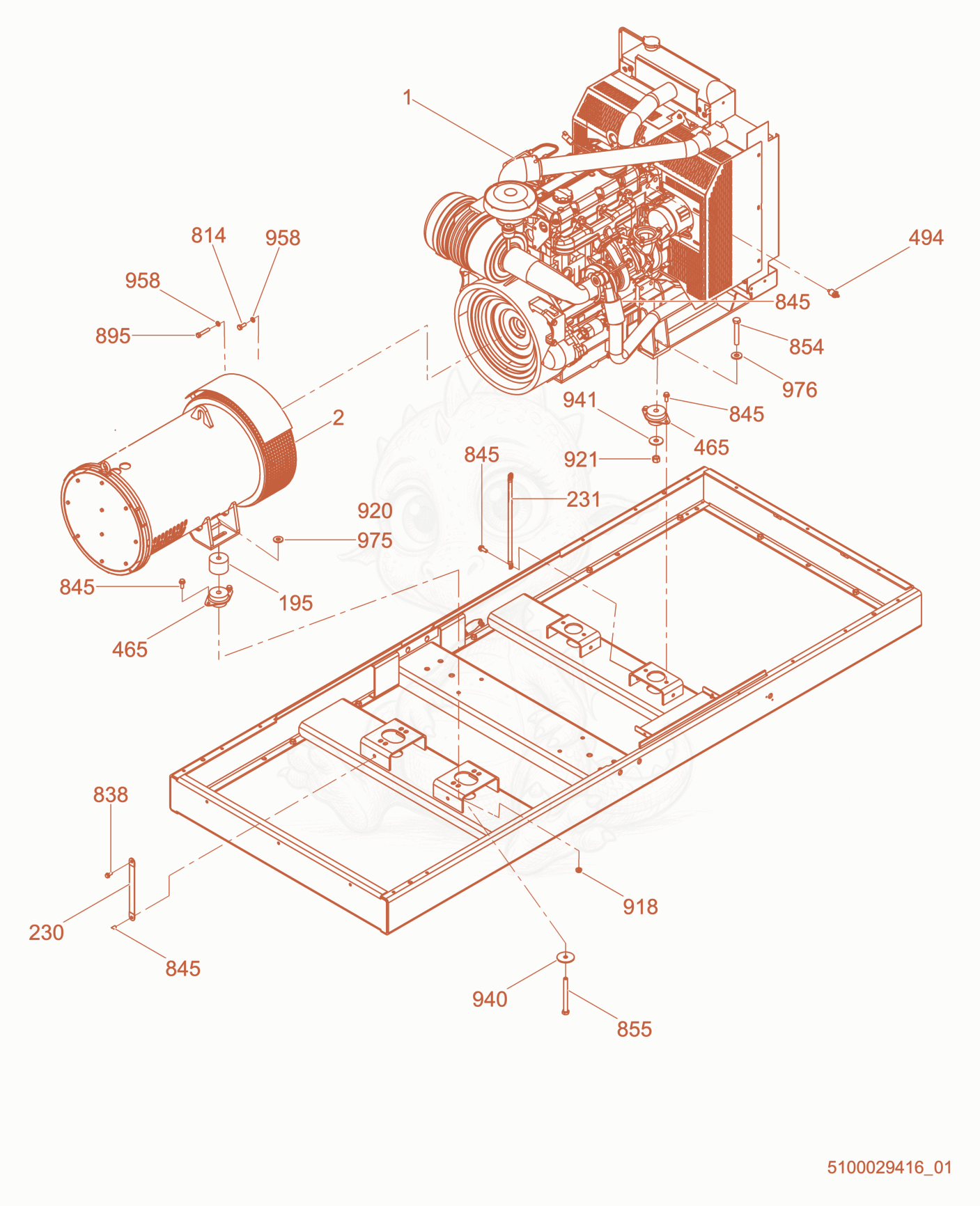

Exploded parts diagram of the Generator/Engine of a Wacker Neuson G110, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15200015540Not stocked
    Engine-Perkins×1
  • 25100026196Not stocked
    Generator×1
  • 1955100026448Not stocked
    Spacer×2
  • 2305000152978
    $17.62
    STRAP-GROUND 10 - 5000152978×1
  • 2315000152979
    $16.84
    STRAP GROUND 15IN - 5000152979×1
  • 4655000153065
    $53.87
    SHOCKMOUNT-RUBBER,690LBS - 5000153065×4
  • 4945200001043
    $48.00
    KIT-SENSOR,TEMP,MED - 5200001043×1
  • 8145200021928Not stocked
    Screw×8
  • 8385000028404
    $0.26
    SCREW M8 X 20,HX.HD,SER.FLG - 5000028404×1
  • 8455000116164
    $0.69
    SCREW M10X25 HEX,SER.FLG ZP - 5000116164×11
  • 8545200015430Not stocked
    Screw×2
  • 8555100027378Not stocked
    Screw×2
  • 8955100027621Not stocked
    Screw×12
  • 9185000089316
    $0.29
    NUT-LOCK M10,SERR.,FLANGE - 5000089316×4
  • 9205000010885
    $0.35
    NUT M14 8,HEX. - 5000010885×2
  • 9215000155244
    $0.68
    NUT M16-8.8 HX HD ZP - 5000155244×2
  • 9405100027441Not stocked
    Washer×2
  • 9415000153067
    $44.42
    WASHER-SNUBBER - 5000153067×2
  • 9585000154530
    $0.29
    WASHER M10 HARDENED BLK TP 200 - 5000154530×20
  • 9755000080596
    $2.08
    WASHER 14 SPR.LOCK,MZP - 5000080596×2
  • 9765000153532
    $3.16
    WASHER-LOCK M16 CON SPR,MZP - 5000153532×2
