G150 MOBILE GEN,COLD WEATHER

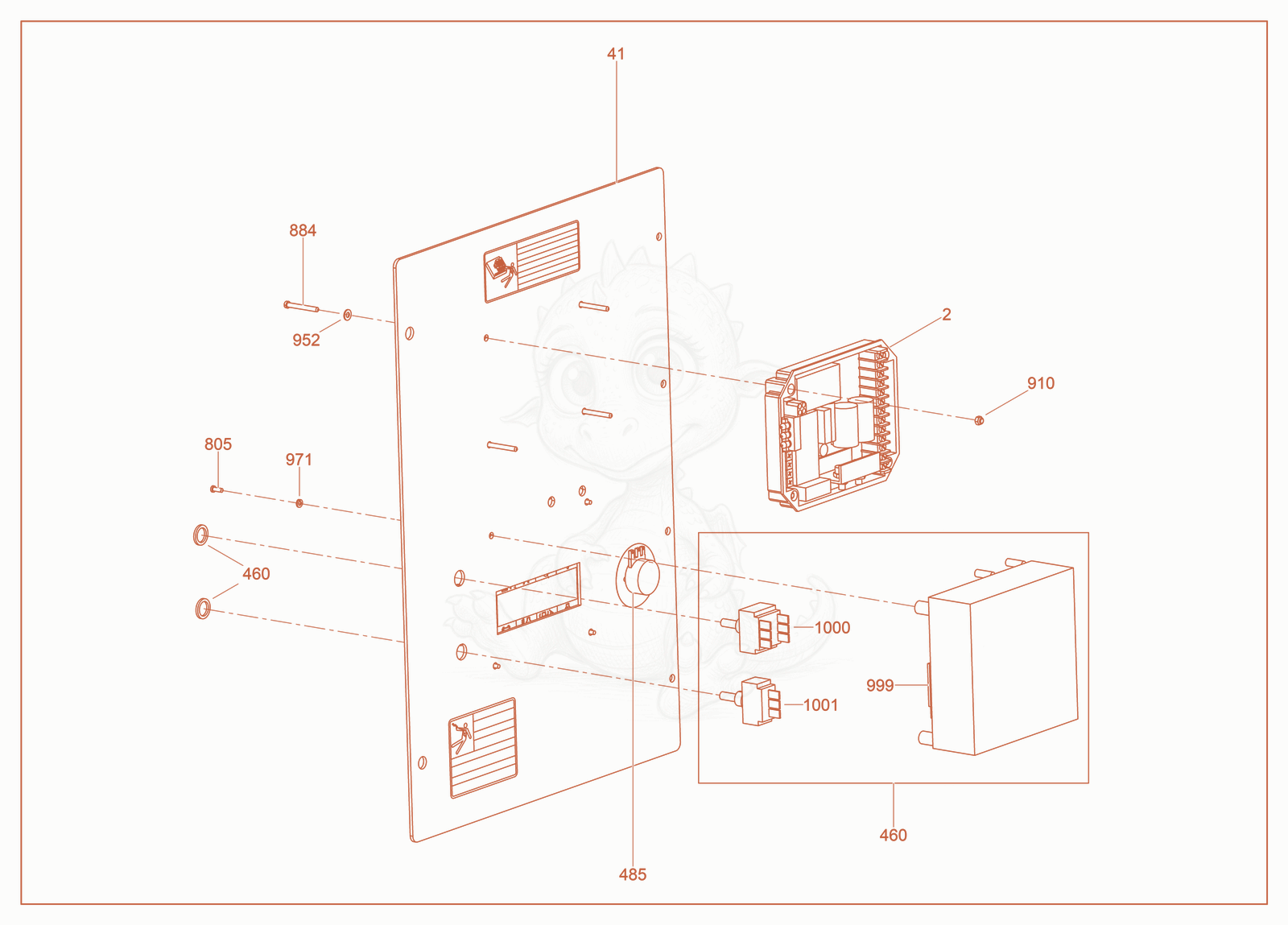

G150 Engine Control Module/VoltageRegulator Diagram

Exploded parts diagram of the Engine Control Module/VoltageRegulator of a Wacker Neuson G150, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 25000176730
    $1,456.60
    Voltage regulator - 5000176730×1
  • 25100064523
    $1,479.81
    Voltage regulator DER1 - 5100064523×1
  • 4605000171547
    $4,061.07
    MODULE-ENGINE CONTROL,G150 - 5000171547×1
  • 8055000154512
    $0.03
    SCREW 6-32 X 5/16 PAN HD,PHIL - 5000154512×4
  • 9105000010872
    $0.01
    NUT M4 8,HEX. - 5000010872×4
  • 9325000110002
    $1.97
    NUT-LOCK M3.5 HEX - 5000110002×4
  • 9525000010628
    $0.02
    WASHER A4.3 FLAT - 5000010628×4
  • 9715000154532
    $0.02
    WASHER-LOCK M3.5 ZP - 5000154532×4
  • 9995000165419
    $129.88
    DISPLAY-LIQUID CRYSTAL - 5000165419×1
  • 10005000160778
    $89.22
    SWITCH-RUN/STOP - 5000160778×1
  • 10015000163726
    $47.10
    Switch - 5000163726×1
