G150, custom

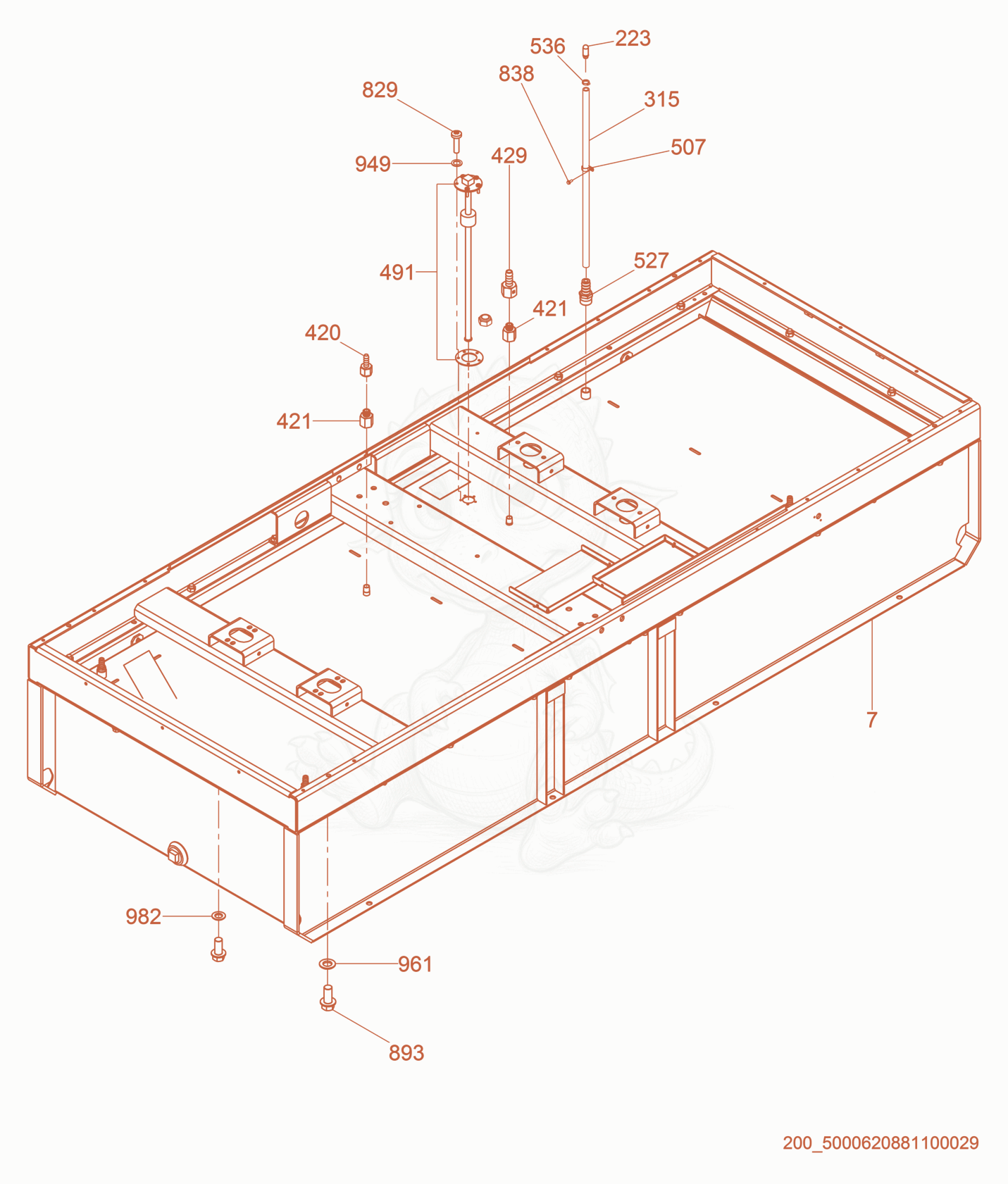

G150 Fuel Tank Diagram

Exploded parts diagram of the Fuel Tank of a Wacker Neuson G150, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 75200004628Not stocked
    Skid/Fuel Tank cpl.×1
  • 2235000171485
    $10.92
    FILTER-FUEL VENT,1/2 NPT - 5000171485×1
  • 3155000173688
    $66.70
    HOSE-FUEL 3/4 X 980 MM - 5000173688×1
  • 4205000160596
    $11.12
    FITTING-5/16 BARB X 3/8 F.NPT - 5000160596×1
  • 4215200005250
    $10.48
    FITTING-REDUCER 1/2NPTF TO 3/8NPTM - 5200005250×2
  • 4295200001006
    $182.05
    Sensor-Fuel,350w/connector - 5200001006×1
  • 4915200001007
    $178.98
    Sensor-Fuel,450mm w/connector - 5200001007×1
  • 5075000163958
    $1.10
    CLAMP-TUBE 1.188 ID COV-2011 - 5000163958×1
  • 5275000155285
    $38.76
    FITTING-FUEL VENT - 5000155285×1
  • 5365000180084
    $0.96
    CLAMP-WORM,9/16X1-1/16 ,SST - 5000180084×2
  • 8295000154517
    $0.06
    SCREW M5X20-4.8-H PAN HD - 5000154517×5
  • 8385000028404
    $0.26
    SCREW M8 X 20,HX.HD,SER.FLG - 5000028404×1
  • 8935000011522
    $0.62
    SCREW M16 X 35 HX.HD. - 5000011522×20
  • 9495000064610
    $0.20
    SEAL-RING 5 X 7.5 - 5000064610×5
  • 9615000010618
    $0.28
    WASHER B17 FLAT - 5000010618×16
  • 9825000178507
    $0.24
    WASHER-LOCK,A16 EXT.STAR - 5000178507×4
