G2.5A GENERATOR-CUL

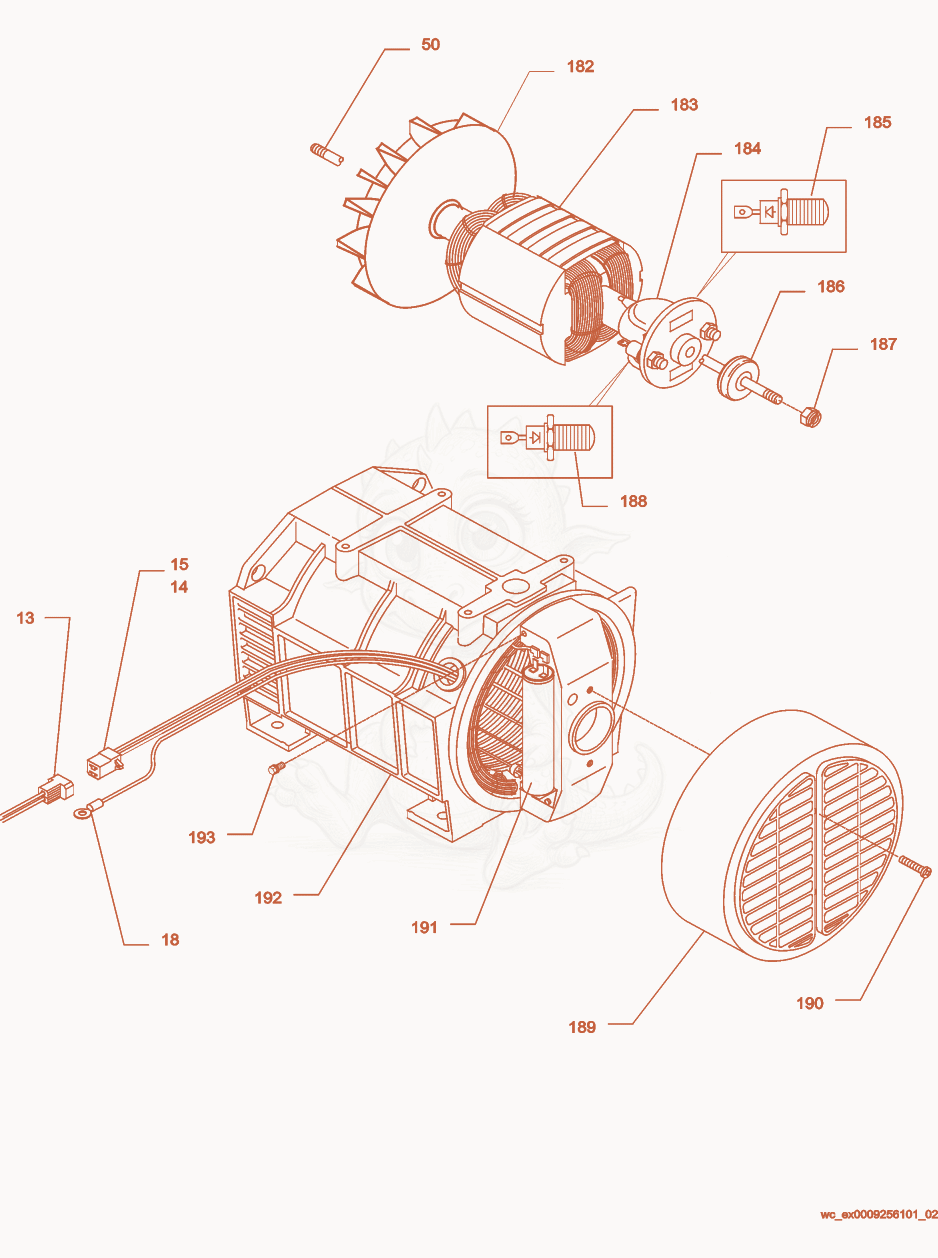

G2.5A Generator Front Diagram

Exploded parts diagram of the Generator Front of a Wacker Neuson G2.5A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 135000152791
    $37.77
    HARNESS-WIRING,G2.5A CUL - 5000152791×1
  • 145000088514
    $0.39
    TERMINAL-RCPT 16-12 .25,NON IN - 5000088514×2
  • 155000112055
    $0.91
    HOUSING-CONNECTOR 2 POLE,RCPT - 5000112055×1
  • 185000028304
    $0.29
    TERMINAL-RING 16-14 4.4 ID,INS - 5000028304×1
  • 505000087049
    $8.21
    STUD 5/16-24 X 10.45 - 5000087049×1
  • 1825000111720
    $65.10
    FAN - 5000111720×1
  • 1835000111723
    $632.47
    ROTOR-65MM STACK - 5000111723×1
  • 1845000088273
    $265.74
    BRACKET-DIODES,SURGE PROTECTOR - 5000088273×1
  • 1855000118870
    $248.51
    KIT-DIODES,1200V,16A - 5000118870×1
  • 1865000087819
    $69.30
    BEARING-ANTI CREEP - 5000087819×1
  • 1875000087054
    $1.72
    NUT-LOCK 5/16-24,BINX GRADE S - 5000087054×1
  • 1885000118870
    $248.51
    KIT-DIODES,1200V,16A - 5000118870×1
  • 1895000087815
    $87.37
    COVER-STEEL,GENERATOR - 5000087815×1
  • 1905000116462
    $4.15
    SCREW M5X30 - 5000116462×2
  • 1915000111724
    $449.30
    CAPACITOR-40UF,400V - 5000111724×1
  • 1925000118983
    $1,117.41
    KIT-STATOR,G2.5 - 5000118983×1
