G25-GENERATOR,SKID BASE

G25 Fuel/Water Separator Diagram

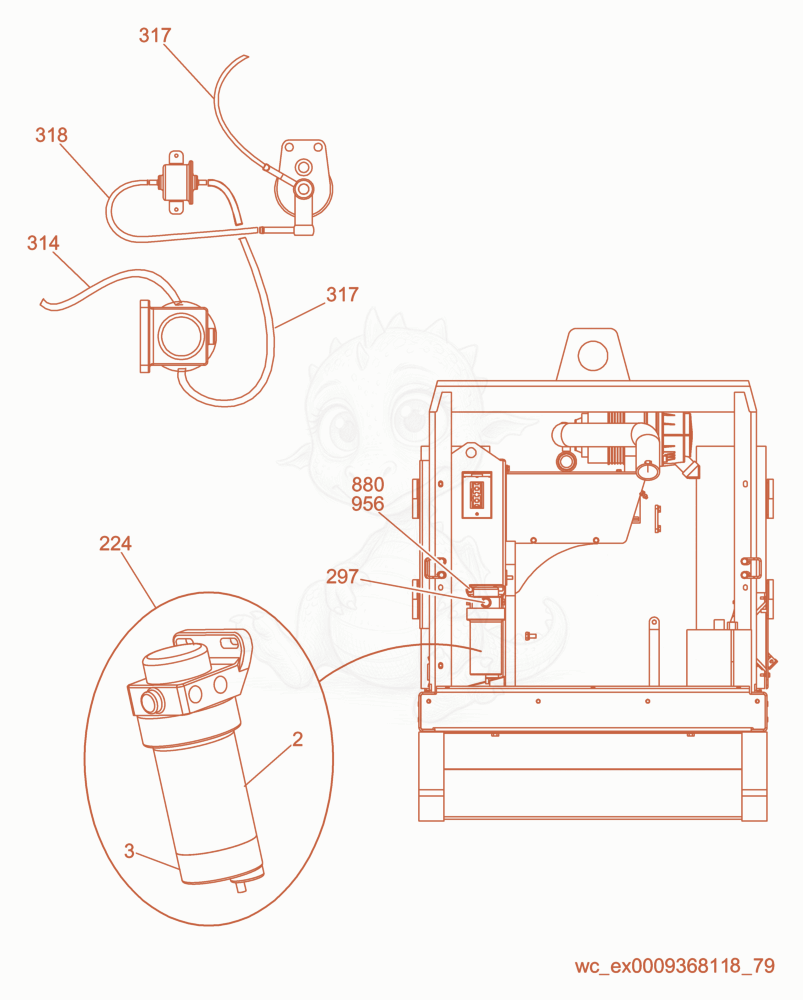

Exploded parts diagram of the Fuel/Water Separator of a Wacker Neuson G25, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 25000159432
    $22.84
    xILTER-ELEMENT,30 MICRON - 5000159432×1
  • 35000159570
    $60.60
    BOWL-FUEL/WATER SEPARATOR - 5000159570×1
  • 2245000159088
    $138.77
    FILTER-FUEL WATER SEPARATOR - 5000159088×1
  • 2975000164618
    $79.95
    FITTING-HOSE,3/8 NPT X 5/16 - 5000164618×2
  • 3145000164382
    $2.34
    HOSE-FUEL 5/16 X 450MM - 5000164382×1
  • 3175000159373
    $2.34
    HOSE-FUEL 5/16 X 300MM - 5000159373×2
  • 3185000159423
    $1.64
    HOSE-FUEL 5/16 X 350MM - 5000159423×1
  • 8805000011456
    $0.29
    SCREW M8 X 30 HX.HD. - 5000011456×2
  • 9565000010622
    $0.10
    WASHER-FLAT,M8,ZINC - 5000010622×2
