G25-GENERATOR,CUSTOM

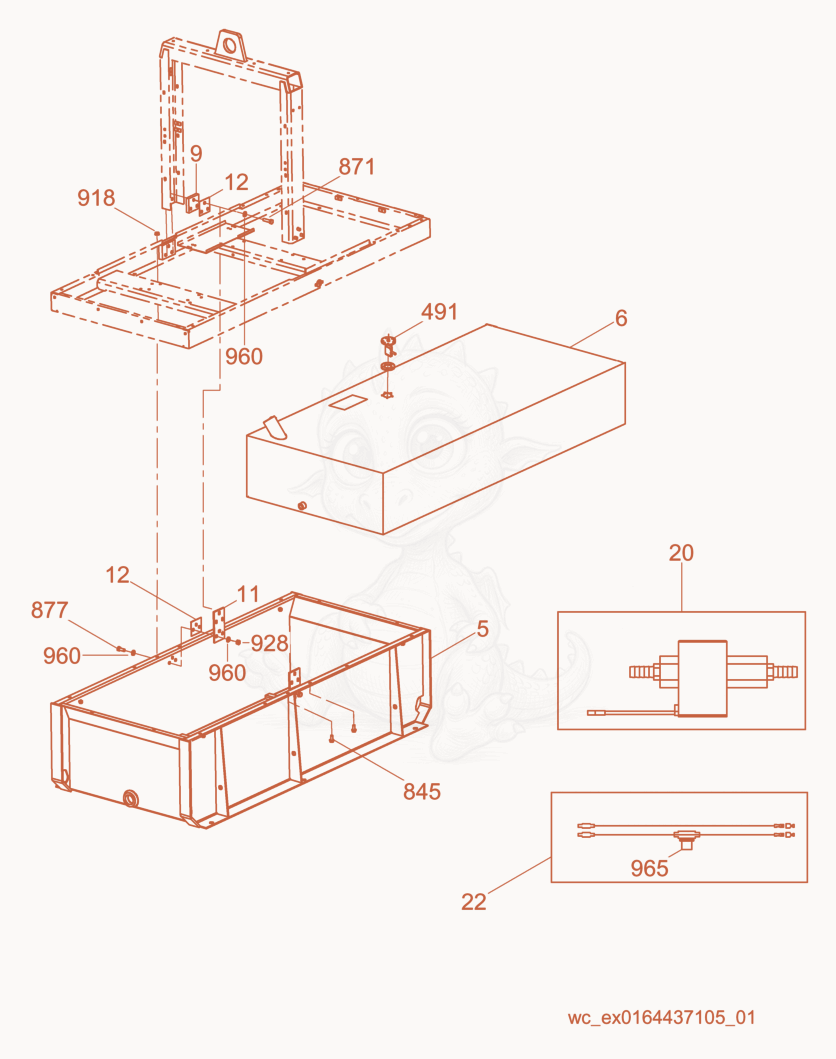

G25 Skid-72 Hour Diagram

Exploded parts diagram of the Skid-72 Hour of a Wacker Neuson G25, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 55000165451
    $3,068.49
    FRAME-SKID,LWR-72HR,SML P-5000176420 - 5000165451×1
  • 65000165448
    $1,790.89
    TANK-FUEL,135 GAL P-5000112007 - 5000165448×1
  • 95000172769
    $63.03
    BLOCK-LIFT ST,SHIM 72HR - 5000172769×2
  • 115000172315
    $56.21
    PLATE-LIFT SUPPORT,72HR P-500017642 - 5000172315×2
  • 125000172770
    $36.98
    PLATE-SHIM,SMALL ERT P-5000176420 - 5000172770×4
  • 205000175832
    $243.10
    KIT-FUEL ASSY,72 HR SML - 5000175832×1
  • 205000175813
    $5.60
    FITTING 1/8-27 X 5/16 BARB - 5000175813×2
  • 205000175834
    $0.91
    TERMINAL 18GA,MALE FASTON .25 - 5000175834×2
  • 225000175803
    $18.09
    WIRE-ASSY,FUEL 72HR SML - 5000175803×1
  • 4915000170168
    $99.91
    SENSOR-FUEL LEVEL SML72 - 5000170168×1
  • 8455000116164
    $0.69
    SCREW M10X25 HEX,SER.FLG ZP - 5000116164×4
  • 8715000172831
    $2.23
    SCREW M12X45X1.75,HX.HD.,10.9 - 5000172831×6
  • 8775000020378
    $0.58
    SCREW M12 X 30-10.9,HX HD - 5000020378×6
  • 9185000089316
    $0.29
    NUT-LOCK M10,SERR.,FLANGE - 5000089316×4
  • 9285000119288Not stocked
    Hexagon nut×6
  • 9605000010620
    $0.26
    WASHER B13 FLAT - 5000010620×18
  • 9655000175091
    $0.50
    FUSE-3 AMP - 5000175091×1
