G25 Generator, Cold Weather T4

G25 Fuel Lines/Battery Diagram

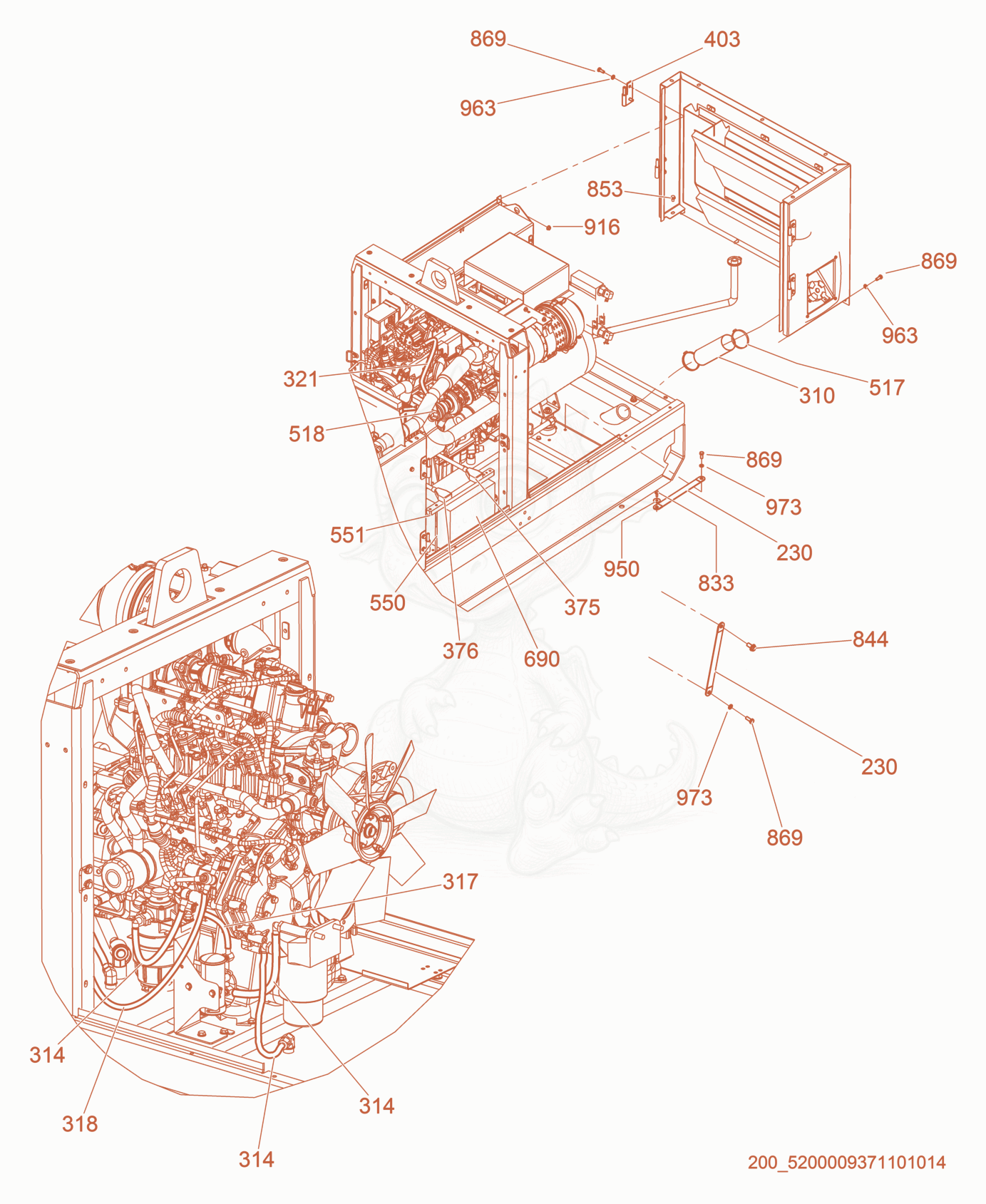

Exploded parts diagram of the Fuel Lines/Battery of a Wacker Neuson G25, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 2305000152978
    $17.62
    STRAP-GROUND 10 - 5000152978×2
  • 3105000159374
    $27.13
    HOSE-FUEL FILL 2-3/8 X 200MM - 5000159374×1
  • 3145000181825
    $7.96
    HOSE-FUEL 3/8 X 500MM - 5000181825×3
  • 3175200015821Not stocked
    Fuel hose×1
  • 3185200007891
    $8.02
    HOSE-FUEL 3/8 x 800MM - 5200007891×1
  • 3755000158985
    $28.93
    CABLE-BATTERY,POS.10 W/AUX - 5000158985×1
  • 3765000173362
    $29.26
    CABLE-NEG DISCONNECT,SML - 5000173362×1
  • 4035000164970
    $24.41
    HINGE-L.H.,PIN LEAF - 5000164970×2
  • 5175000154344
    $2.64
    CLAMP-WORM DRIVE 2.06 -3 - 5000154344×1
  • 5185000119906
    $1.28
    CLAMP-HOSE,#20,.81-1.75 - 5000119906×1
  • 5505000154319
    $2.94
    BOLT-L .25-10,BATTERY - 5000154319×2
  • 5515000159046
    $45.69
    BRACKET-BATTERY HOLD DOWN - 5000159046×1
  • 6905000159808
    $312.09
    BATTERY-WET,GR31 - 5000159808×1
  • 8335000028949
    $0.29
    SCREW M6 X 16,HX.HD,SER.FLG - 5000028949×1
  • 8445000154521
    $1.22
    SCREW M10X20-10.9 HX SFLG MZP - 5000154521×1
  • 8535000157021
    $0.57
    SCREW M8 X 14,HX.HD,SERR.FLG - 5000157021×3
  • 8695000158897
    $0.25
    SCREW M8X20 HX.HD.,SST - 5000158897×10
  • 9165000030066
    $0.16
    NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×4
  • 9505000156269
    $0.12
    WASHER-FLT .058X.281X1.00 ZP - 5000156269×1
  • 9635000158899
    $0.07
    WASHER M8 FLAT,SST - 5000158899×8
  • 9735000012397
    $0.10
    WASHER-LOCK B8 - 5000012397×2
