G3.3AE SWISS GENERATOR

G3.3AE Control Panel with Earth Leakage Circuit Breaker Diagram

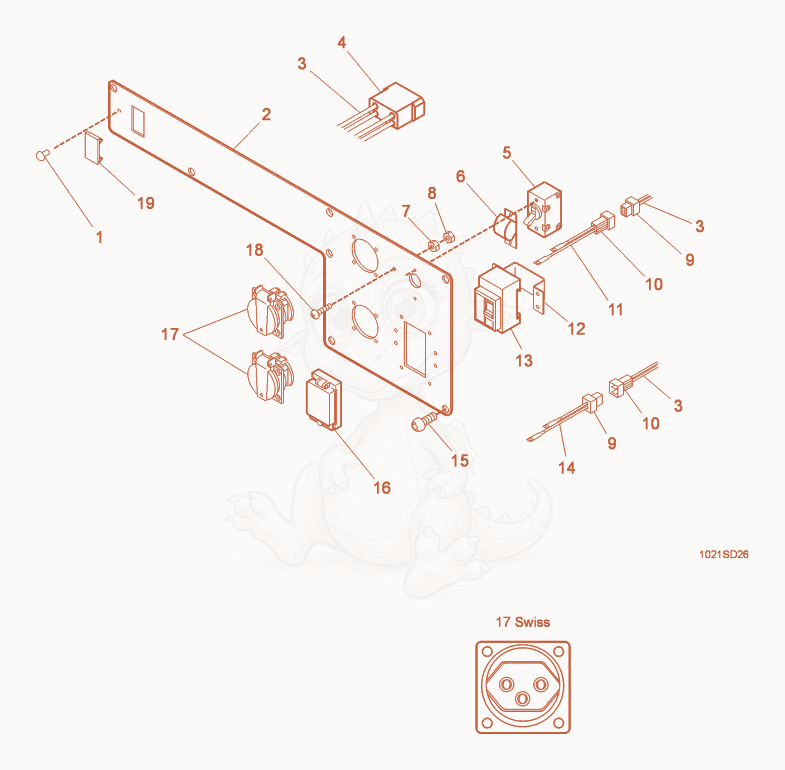

Exploded parts diagram of the Control Panel with Earth Leakage Circuit Breaker of a Wacker Neuson G3.3AE, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

15000111204
$1.85
NLA-PLUG-HOLE,.182-.192 DIA,ELCB - 5000111204×1
25000110379
$179.55
NLA PANEL-CONTROL,MED,50HZ - 5000110379×1
35000110470
$119.92
WIRING HARNESS-MAIN,MED,50HZ - 5000110470×1
45000112058
$6.50
HOUSING-CONNECTOR 4 POLE,PLG - 5000112058×1
45000083679
$0.45
TERMINAL-TAB 14-10 .250 - 5000083679×4
55000110361
$26.65
BREAKER-CIRCUIT,1-POLE,15A - 5000110361×1
55000088237
$0.03
SCREW M3 X 6 - 5000088237×2
65000111919
$30.88
COVER-CIRCUIT BREAKER,1-POLE - 5000111919×1
75000010872
$0.01
NUT M4 8,HEX. - 5000010872×1
85000010370
$0.03
NUT-LOCK M4 HEX. - 5000010370×1
95000112055
$0.91
HOUSING-CONNECTOR 2 POLE,RCPT - 5000112055×1
95000088514
$0.39
TERMINAL-RCPT 16-12 .25,NON IN - 5000088514×1
105000112056
$0.48
HOUSING-CONNECTOR 2 POLE,PLG - 5000112056×1
105000083679
$0.45
TERMINAL-TAB 14-10 .250 - 5000083679×2
115000110472
$24.87
NLA WIRING HARNESS-ELCB,2P,LINE - 5000110472×1
125000110476
$27.01
BRACKET-DIN RAIL, 2P, ELCB - 5000110476×1
135000110369
$207.15
BREAKER-ELCB,2P,230V,.03A,25A - 5000110369×1
135000010370
$0.03
NUT-LOCK M4 HEX. - 5000010370×4
135000110405
$0.06
SCREW M4 X 14 PHIL HD - 5000110405×4
145000110473
$27.39
WIRING HARNESS-ELCB,2P,LOAD - 5000110473×1
155000085172
$0.52
SCREW M8 X 12,SOC BUTN - 5000085172×9
165000110366
$22.74
COVER-CIRCUIT BREAKER,EL,2-POL - 5000110366×1
165000110636
$0.19
SCREW M3 X 8 C PHIL HD - 5000110636×4
175000112377
$38.95
RECEPTACLE 230V,16A,SWISS - 5000112377×2
175000010370
$0.03
NUT-LOCK M4 HEX. - 5000010370×8
175000110405
$0.06
SCREW M4 X 14 PHIL HD - 5000110405×8
185000110951
$0.03
SCREW M4 X 20 PHIL HD - 5000110951×1
195000110747Not stocked
Cover×1
