G320 Generator,Standard,T4F

G320 Generator/Engine Diagram

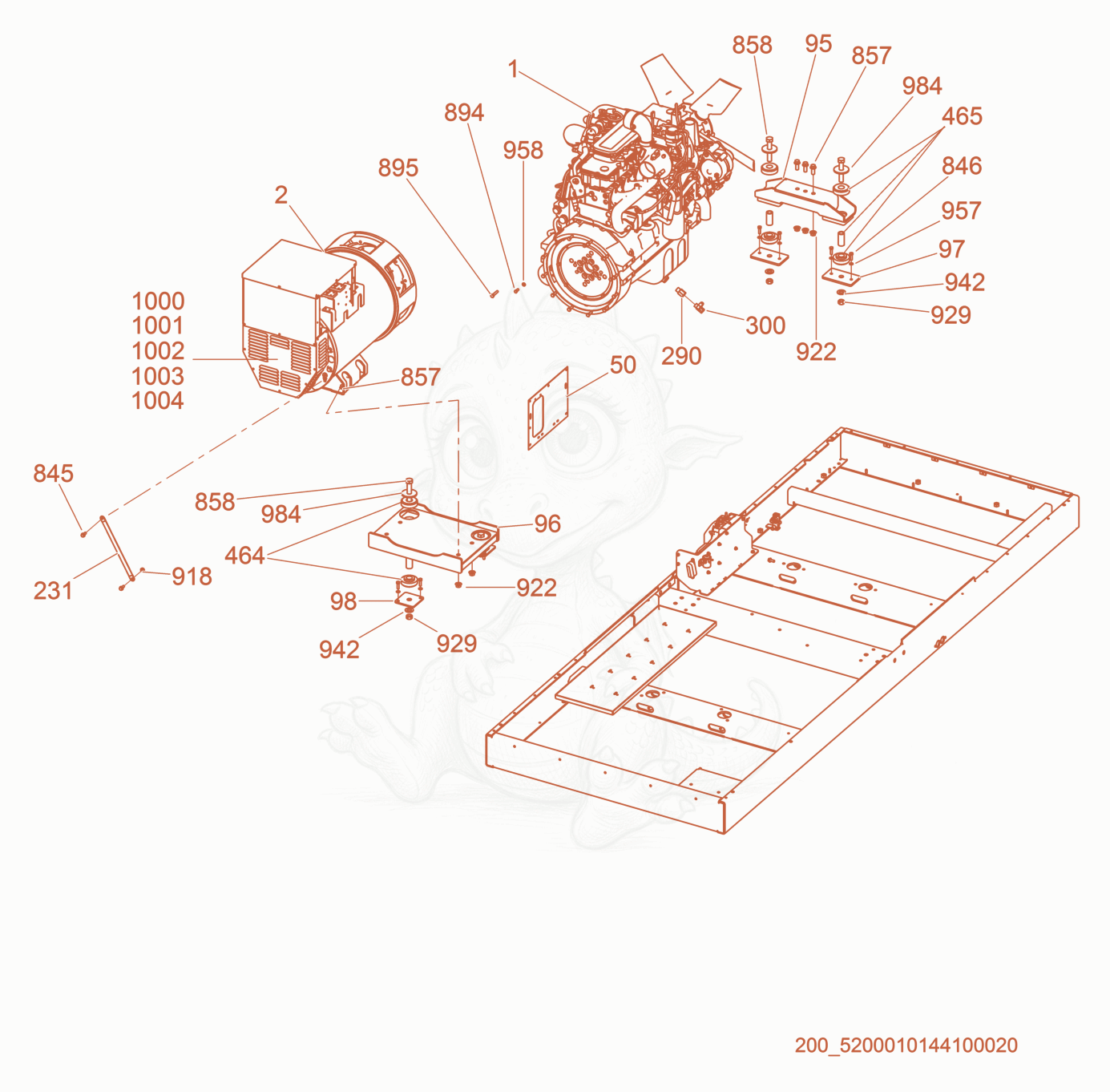

Exploded parts diagram of the Generator/Engine of a Wacker Neuson G320, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

15200013343Not stocked
Engine-Cummins×1
25200016309Not stocked
Generator×1
505000174539
$181.89
PANEL-GENERATOR,G240/180 - 5000174539×1
955200010540Not stocked
Bracket×1
965200010541Not stocked
Bracket×1
975200011483Not stocked
Adapter plate×2
985200011484Not stocked
Adapter plate×2
2315000152979
$16.84
STRAP GROUND 15IN - 5000152979×1
2905000153962
$40.66
FITTING M22 X 1/2 NPT - 5000153962×1
3005000154305
$31.79
VALVE-BALL 1/2 MALE X FEMALE - 5000154305×1
4645200010099Not stocked
Shockmount×2
4655200010110Not stocked
Shockmount×2
8455000116164
$0.69
SCREW M10X25 HEX,SER.FLG ZP - 5000116164×2
8465000011438
$0.58
SCREW M10 X 35 HX.HD. - 5000011438×11
8575000155246
$4.27
SCREW M16X40-10.9 HX SR FL MZP - 5000155246×8
8585200011564Not stocked
Screw×4
8945000183123
$0.22
SCREW 3/8-16 X .875 GR8,HX.HD. - 5000183123×8
8955000011321
$0.51
SCREW M10 X 55 HX.HD. - 5000011321×12
9185000089316
$0.29
NUT-LOCK M10,SERR.,FLANGE - 5000089316×8
9225000155245
$0.50
NUT M16-10.9 HX SER FLG MCH ZP - 5000155245×17
9295200011047Not stocked
Nut×4
9425200010991Not stocked
Washer×4
9575000010621
$0.13
WASHER B10.5 FLAT - 5000010621×8
9585000154530
$0.29
WASHER M10 HARDENED BLK TP 200 - 5000154530×12
9845200010981Not stocked
Washer×4
10005200005593
$1,414.48
EXCITER STATOR - 5200005593×1
10015100028828
$444.19
BEARING-REAR, 193252 - 5100028828×1
10025000164609
$94.79
RING-DIODE - 5000164609×3
10035100028632
$17,356.52
Main Stator cpl. -Gen 0193252 - 5100028632×1
10045100027224
$4,767.62
ROTOR CPL., ECO382LN 115W - 5100027224×1
