G50 GENERATOR, COLD WEATHER

G50 Generator cpl. Diagram

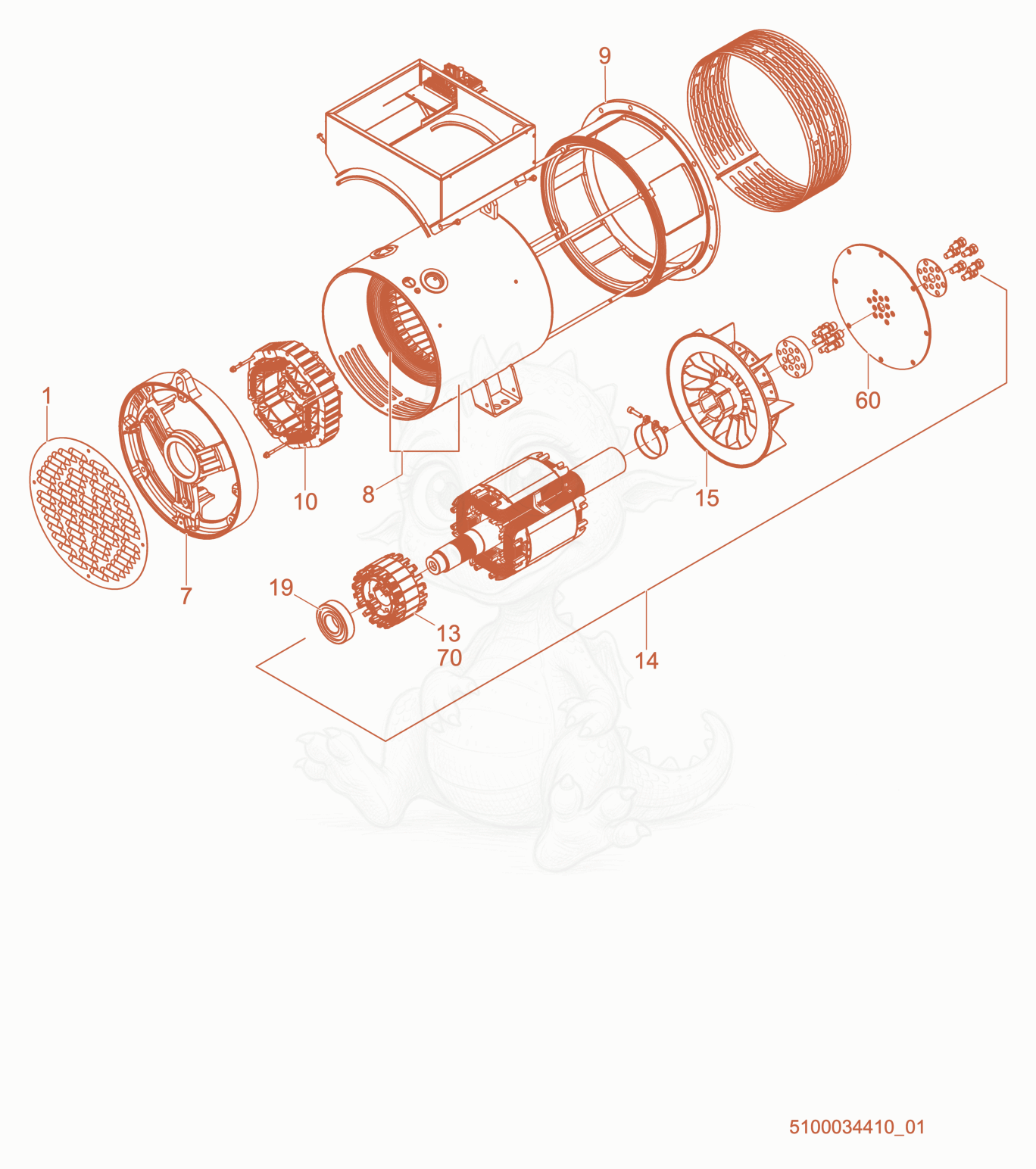

Exploded parts diagram of the Generator cpl. of a Wacker Neuson G50, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100034423
    $47.26
    SEAL-REAR - 5100034423×1
  • 75100027454
    $487.60
    BRACKET, NON DRIVE END - 5100027454×1
  • 85100034424
    $6,084.78
    Main Stator cpl. -Gen 5100031909 - 5100034424×1
  • 95100034422
    $1,009.49
    BRACKET-DRIVE END MD 35/5 - 5100034422×1
  • 105000183341
    $1,224.23
    EXCITER STATOR - 5000183341×1
  • 135000183342
    $1,066.37
    EXCITER ARMATURE - 5000183342×1
  • 145100034425
    $5,016.45
    ROTOR CPL., ECP32 1M4 - 5100034425×1
  • 155100034420
    $188.67
    Fan - 5100034420×1
  • 195000183344
    $160.67
    BEARING-REAR - 5000183344×1
  • 605100034421
    $169.07
    PLATE-FLEX SAE10 - 5100034421×1
  • 705000176415
    $112.38
    KIT-DIODE,GENERATOR END - 5000176415×1
