GP4000 GENERATOR,EPA

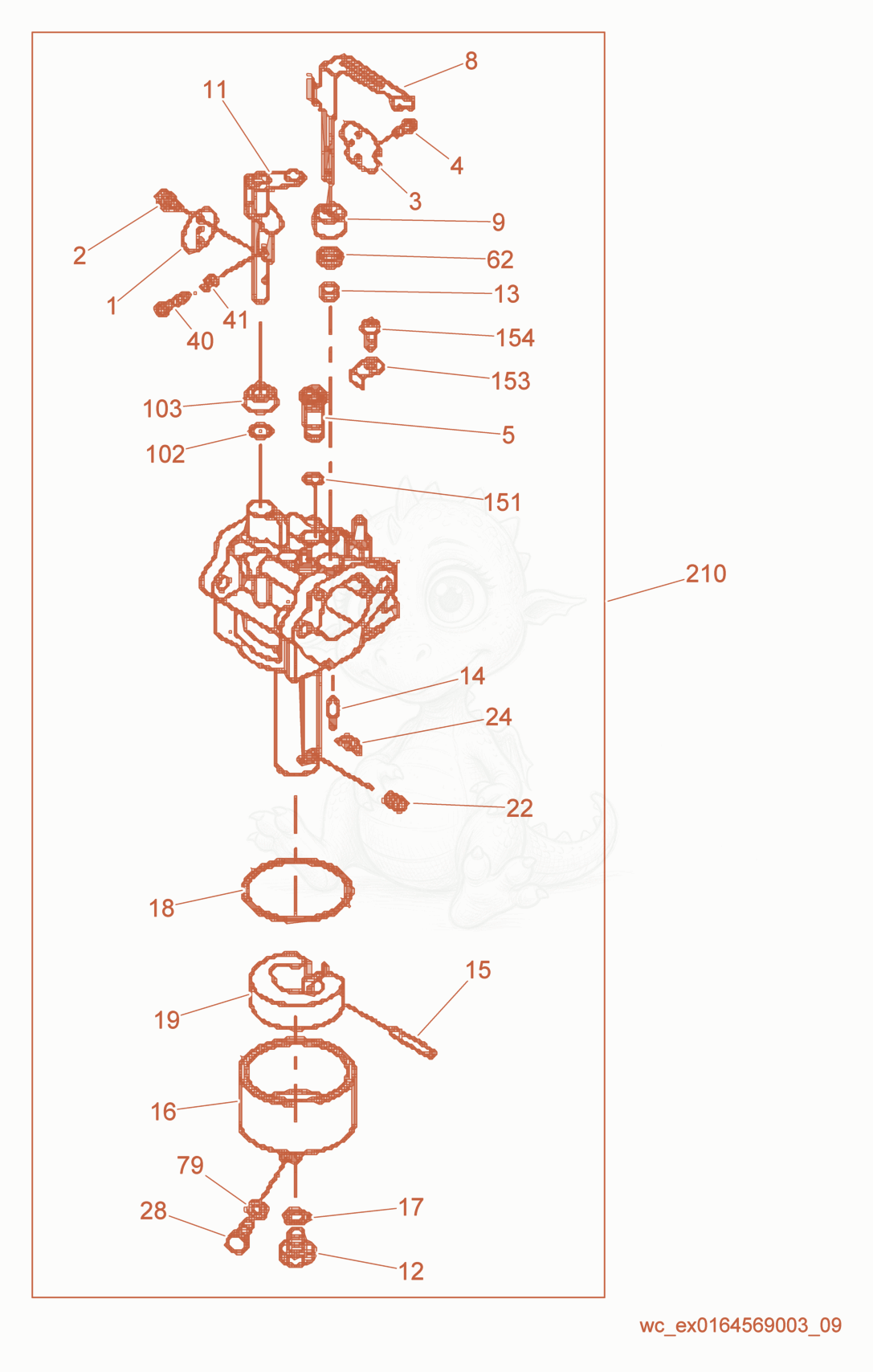

GP4000 Carburetor Diagram
- VALVE-THROTTLE - 5000213447×1
- screw - 5000088468×1
- VALVE-CHOKE - 5000213445×1
- Screw - 5000156408×2
- JET-PILOT - 5000213442×1
- LEVER-CHOKE - 5000213444×1
- Ring - 5000213450×1
- SHAFT-THROTTLE,A - 5000213446×1
- BOLT - 5000205676×1
- Ring - 5000213436×1
- VALVE-NEEDLE - 5000213428×1
- PIN-CARBURETOR FLOAT PIVOT - 5000053686×1
- Bowl - 5000213443×1
- RING-SEALING - 5000119383×1
- GASKET-FLOAT CHAMBER - 5000077496×1
- Float - 5000119384×1
- JET-SLOW - 5000156621×1
- Bolt - 5000213440×1
- Screw - 5000210058×1
- Spring - 5000210059×1
- seal - 5000084503×1
- Washer - 5000213448×1
- seal - 5000156546×1
- Ring - 5000213449×1
- O-Ring - 5000213427×1
- Plate - 5000213439×1
- Screw - 5000213438×1
- Carburetor cpl. - 5000213441×1
