GP5600A GEN NON-CARB W/WHL KIT

GP5600A Control Panel cpl. Diagram

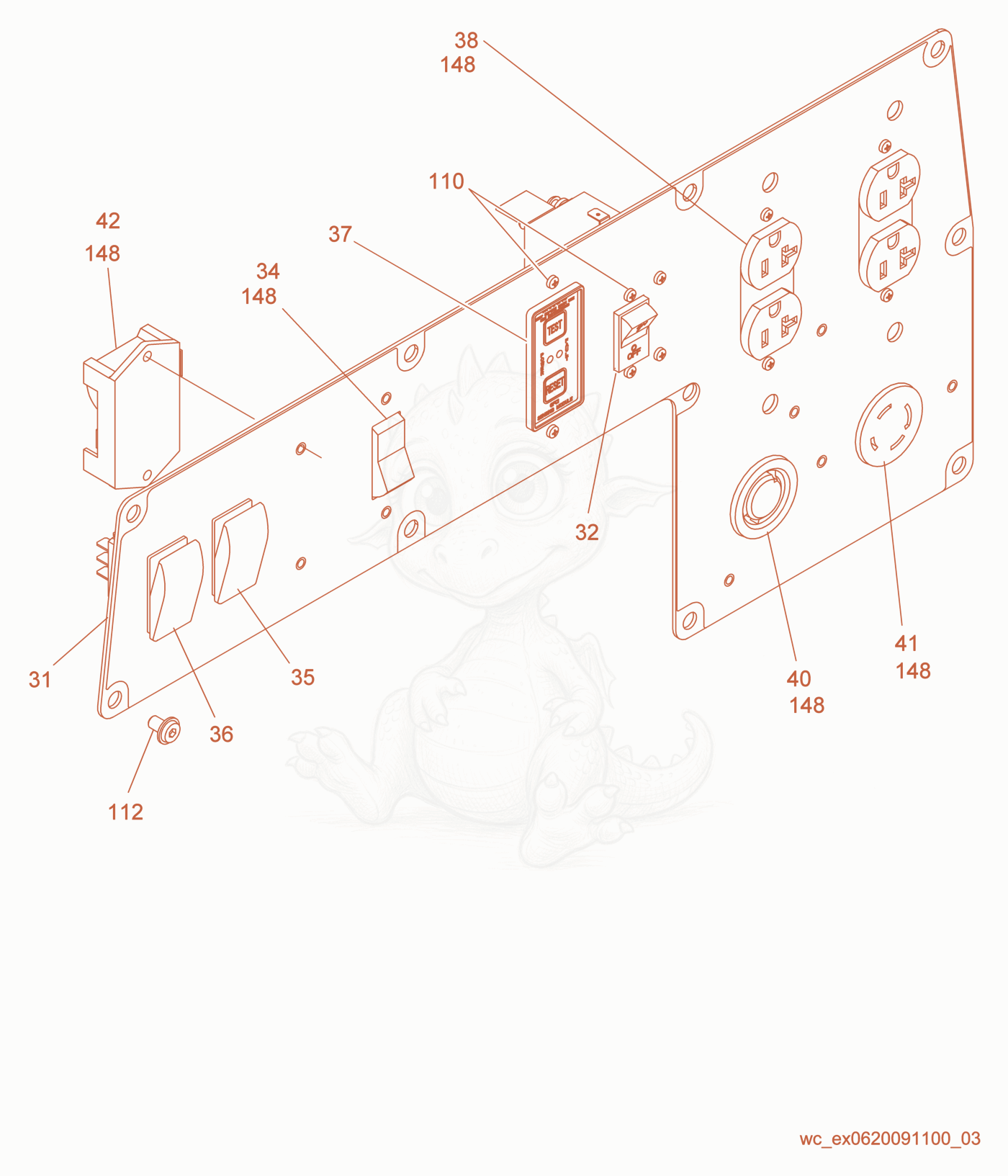

Exploded parts diagram of the Control Panel cpl. of a Wacker Neuson GP5600A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 315000162895
    $95.28
    CONTROL PANEL W/LABEL GP56-66 - 5000162895×1
  • 325000164428
    $1,224.75
    BREAKER-CIRCUIT,16A W/SWITCH - 5000164428×1
  • 345000161013
    $20.31
    SWITCH-4PDT - 5000161013×1
  • 355000162739
    $11.12
    SWITCH-ROCKER,SPST - 5000162739×1
  • 365000192405
    $19.18
    SWITCH-DPST - 5000192405×1
  • 375000163895
    $223.83
    MODULE-GFCI - 5000163895×1
  • 375000163871
    $4.55
    WIRE-GFCI AUX SWITCH - 5000163871×1
  • 385000082951
    $10.49
    RECEPTACLE-DUPLEX, 20A, 120V - 5000082951×2
  • 405000082948
    $26.06
    RECEPTACLE 30A, 125V - 5000082948×1
  • 415000088827
    $41.94
    RECEPTACLE-L14-30, 30 AMP - 5000088827×1
  • 425000165596
    $100.87
    KIT-AUTO IDLE MODULE - 5000165596×1
  • 1005000162264
    $0.28
    SCREW M3X6,PPHMS CL4.8,BL.C - 5000162264×4
  • 1125000162712
    $1.97
    SCREW M6X10,SBHD,FLGE 10.9,BC - 5000162712×10
  • 1485000010370
    $0.03
    NUT-LOCK M4 HEX. - 5000010370×13
