GPSi3200-GEN,INVERTER,NONCARB

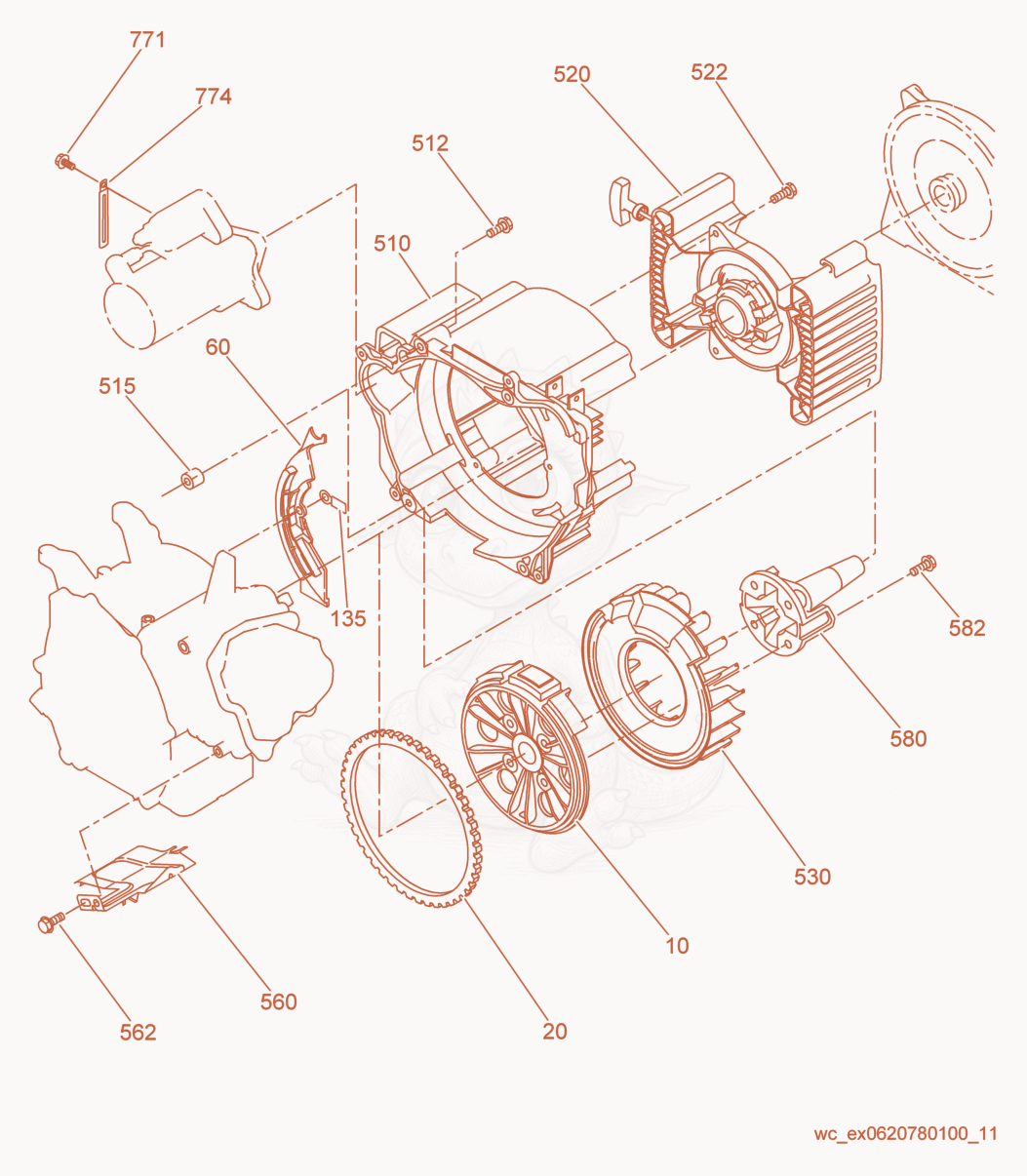

GPSI3200 Flywheel/Blower Housing Diagram

Exploded parts diagram of the Flywheel/Blower Housing of a Wacker Neuson GPSI3200, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

105000226103
$378.48
Flywheel - 5000226103×1
205000226101
$322.15
Ring gear - 5000226101×1
605000226082
$41.01
Baffle - 5000226082×1
1355000226102
$6.49
Clamp - 5000226102×1
5105000226081
$281.25
HOUSING-BLOWER - 5000226081×1
5125000226000
$0.37
BOLT W/ WASHER - 5000226000×1
5135000226001
$3.10
BOLT W/ WASHER - 5000226001×3
5155000226238
$4.84
Pin - 5000226238×2
5205000226072
$332.90
Recoil starter - 5000226072×1
5225000084361
$2.07
BOLT-FLANGE - 5000084361×3
5305000226083
$32.01
Flywheel - 5000226083×1
5605000156525
$95.66
BAFFLE - 5000156525×1
5625000156597
$2.49
BOLT-FLANGE - 5000156597×1
5805000226065
$140.60
SHAFT-DRIVE - 5000226065×1
5825000226016
$2.66
BOLT-FLANGE - 5000226016×4
7715000156645
$2.46
BOLT-FLANGE - 5000156645×1
7745000205689
$5.61
clamp - 5000205689×1
