GPSi3200

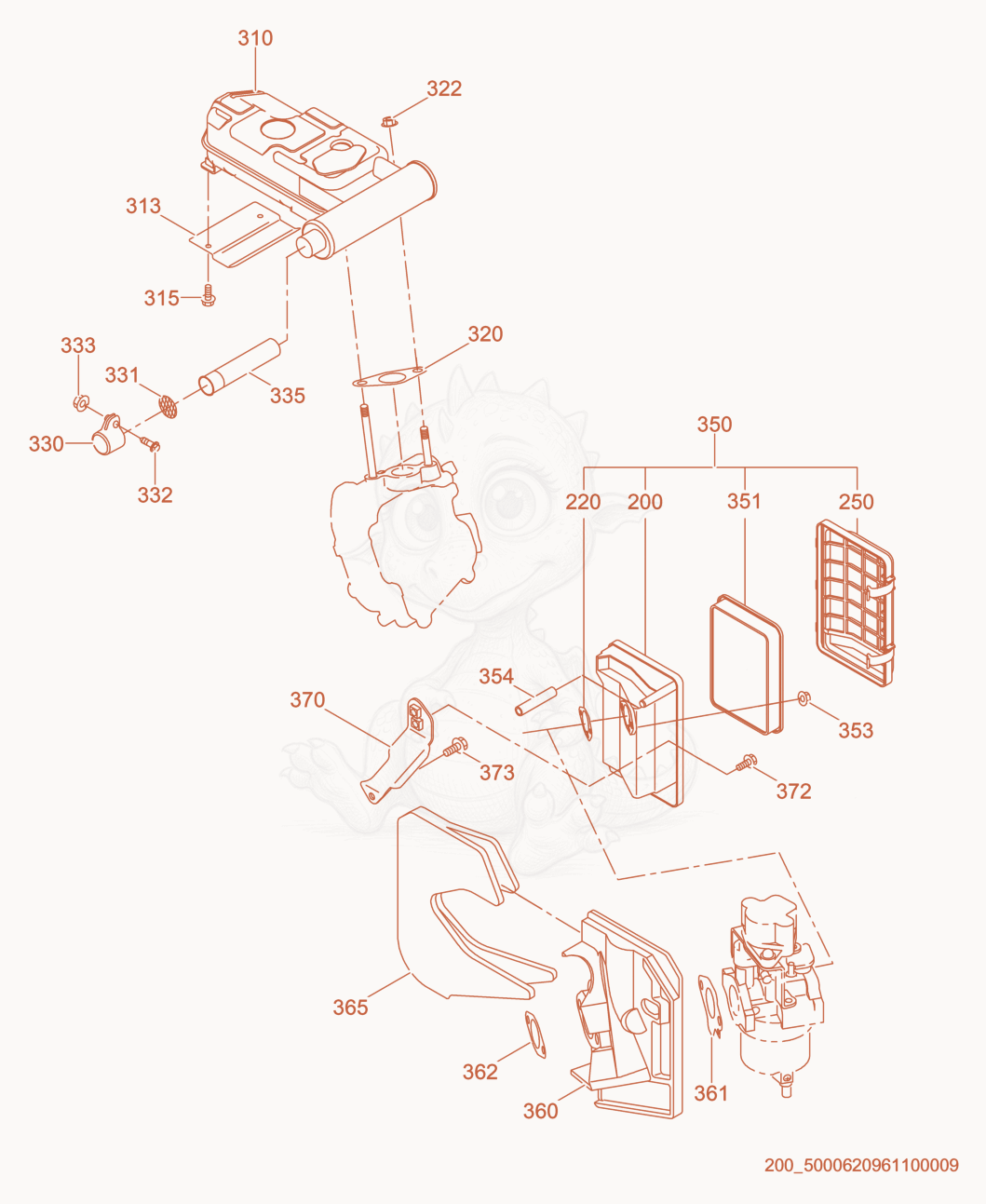

GPSI3200 Air Cleaner/Carburetor Diagram
- HOLDER-AIR CLEANER - 5000214847×1
- GASKET-AIR CLEANER - 5000156748×1
- COVER-AIR CLEANER - 5000214848×1
- MUFFLER - 5200001102×1
- Baffle - 5000226210×1
- BOLT-FLANGE - 5000226010×2
- GASKET-MUFFLER - 5000203771×1
- X-5000075270 NUT-FLANGE - 5000156497×2
- Cover - 5000226067×1
- Screen - 5000226068×1
- SCREW W/ WASHER - 5000226006×1
- Nut - 5000226005×1
- Spark arrester - 5000226120×1
- AIR CLEANER CPL - 5000214846×1
- ELEMENT - 5000214850×1
- NUT M6,HEX,FLANGE - 5000053616×2
- HOSE 8 X 11 X 75MM LG,RUBBER - 5000053608×1
- Insulator - 5000226066×1
- GASKET-CARBURETOR - 5000205147×1
- GASKET-CARBURETOR - 5000205148×1
- INSULATOR,SPONGE - 5000226106×1
- BRACKET,AIR CLEANER - 5000226069×1
- BOLT-FLANGE - 5000156503×1
- BOLT-FLANGE - 5000156597×1
