GS10003G

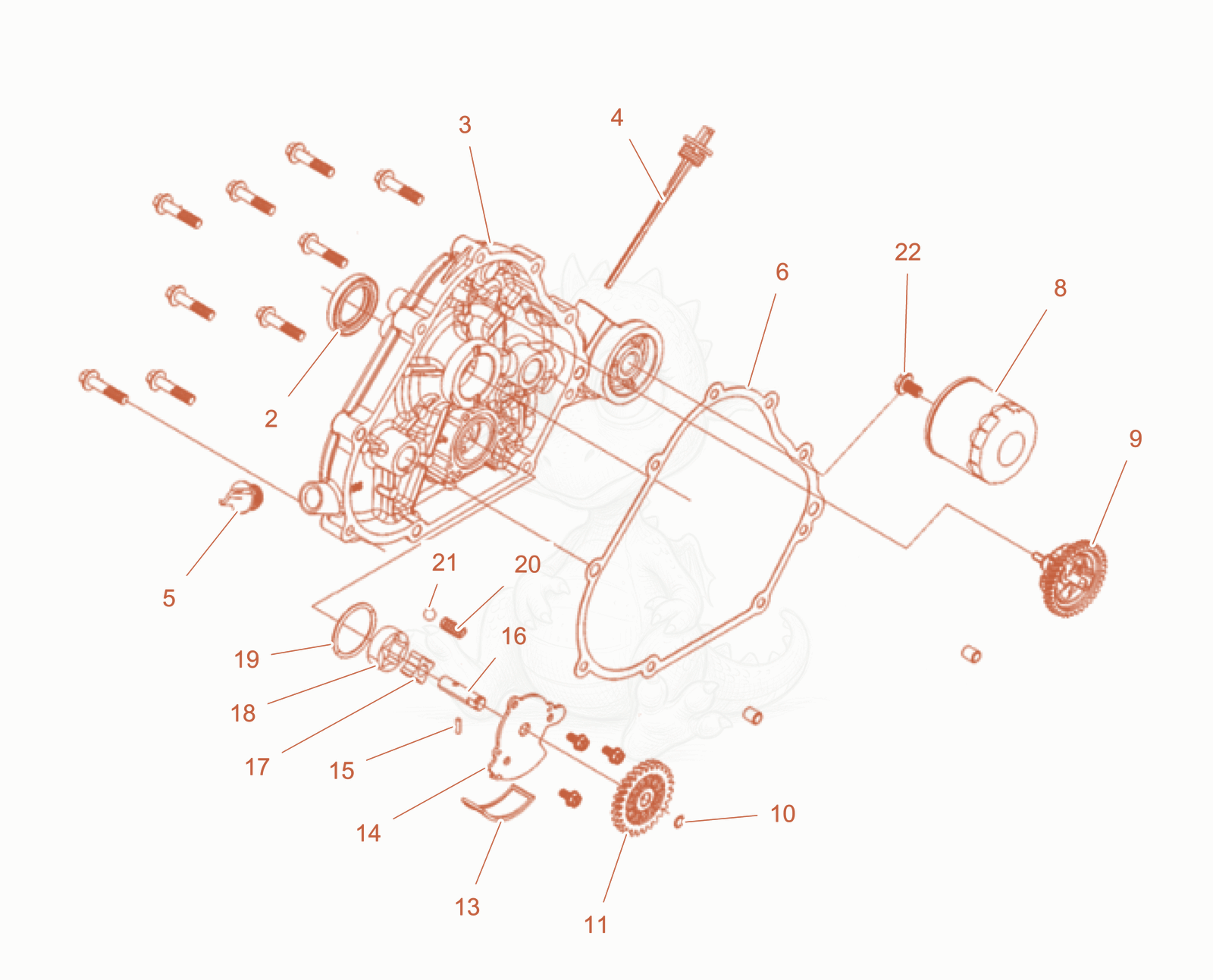

GS10003G(NO-CE) Crankcase cover cpl. Diagram

Exploded parts diagram of the Crankcase cover cpl. of a Wacker Neuson GS10003G(NO-CE), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 25000408583
    $13.24
    Oil seal - 5000408583×1
  • 35000408882
    $84.84
    Crankcase cover - 5000408882×1
  • 45000408883Not stocked
    Dipstick cpl.×1
  • 55000408884Not stocked
    Dipstick cpl.×1
  • 65000408885
    $12.43
    Gasket - 5000408885×1
  • 85000408886
    $34.24
    Oil Filter - 5000408886×1
  • 95000408887Not stocked
    Governor cpl.×1
  • 105000408613
    $0.21
    Ring - 5000408613×1
  • 115000408888
    $6.00
    oil pump Driven wheel - 5000408888×1
  • 135000408890
    $4.90
    Engine oil Strainer - 5000408890×1
  • 145000408891
    $3.22
    Oil pump cover - 5000408891×1
  • 155000408892
    $0.30
    oil pump Drive Pin - 5000408892×1
  • 165000408893
    $2.27
    oil pump Transmission shaft - 5000408893×1
  • 175000408894
    $6.68
    inner rotor - 5000408894×1
  • 185000408895
    $6.68
    outer rotor - 5000408895×1
  • 195000408896
    $1.62
    Seal ring - 5000408896×1
  • 205000408897
    $0.26
    Compression spring - 5000408897×1
  • 215000408898
    $0.34
    Steel ball - 5000408898×1
  • 225000408899Not stocked
    Screws×1
