GS4.6A FRENCH GENERATOR

GS4.6A Engine Diagram

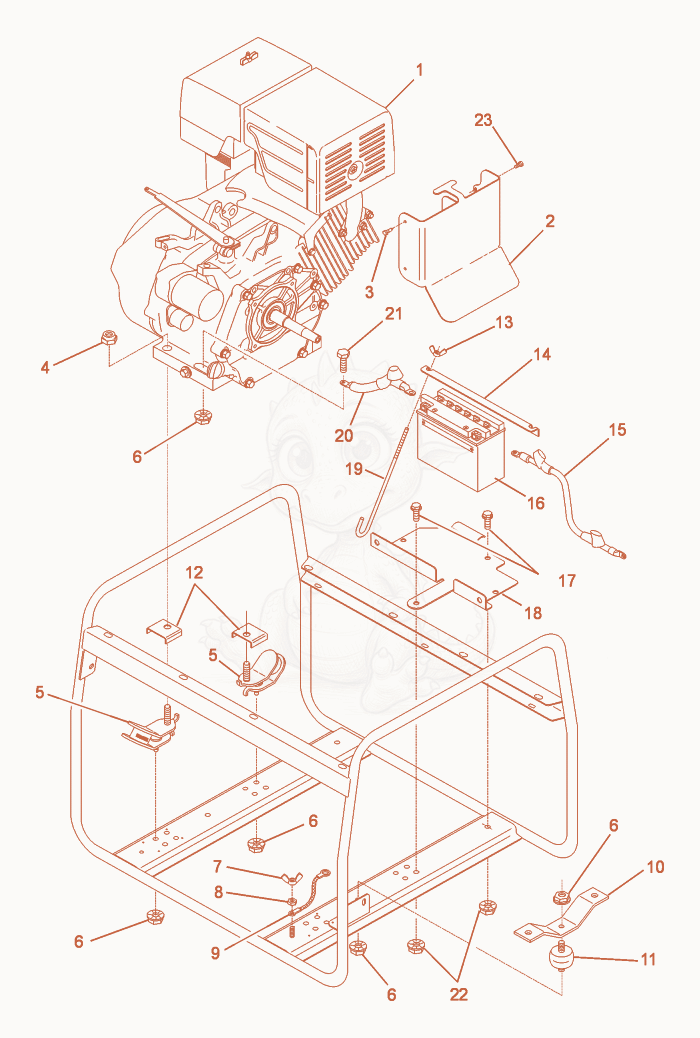

Exploded parts diagram of the Engine of a Wacker Neuson GS4.6A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000111239Not stocked
    Honda engine×1
  • 25000089691
    $51.04
    HEATSHIELD-PAINTED - 5000089691×1
  • 35000089750
    $2.63
    RIVET-POP,HIGH STRENGTH - 5000089750×4
  • 45000089316
    $0.29
    NUT-LOCK M10,SERR.,FLANGE - 5000089316×2
  • 55000087734
    $24.95
    SHOCKMOUNT-ENGINE,.787 X 1.5 - 5000087734×2
  • 65000030066
    $0.16
    NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×5
  • 75000010895
    $0.58
    NUT-WING M6,STAINLESS STEEL - 5000010895×1
  • 85000010880
    $0.03
    NUT M6 8,HEX - 5000010880×1
  • 95000088180
    $2.31
    WIRE-GROUND - 5000088180×1
  • 105000088153
    $28.84
    BRACKET-GENERATOR SUPPORT,MED - 5000088153×1
  • 115000088535
    $8.13
    SHOCKMOUNT 40 X 20, 45 SHORE - 5000088535×1
  • 125000089327
    $0.94
    BRACKET-SHOCKMOUNT SUPPORT - 5000089327×2
  • 135000025679
    $0.25
    NUT-WING 3/8-16 - 5000025679×2
  • 145000088176
    $86.27
    HOLDER-BATTERY TOP P-5000112006 - 5000088176×1
  • 155000088810
    $63.16
    CABLE-BATTERY,POSITIVE - 5000088810×1
  • 165000075444
    $173.68
    BATTERY-DRY - 5000075444×1
  • 175000079363
    $0.36
    SCREW M8 X 16,HX.HD,SER.FLG - 5000079363×2
  • 185000088175
    $156.13
    HOLDER-BATTERY BOTTOM - 5000088175×1
  • 195000088177
    $2.54
    ROD-BATTERY HOLD DOWN - 5000088177×2
  • 205000088811
    $24.88
    CABLE-BATTERY,NEGATIVE - 5000088811×1
  • 215000011341
    $0.36
    SCREW M8 X 40 HX.HD. - 5000011341×1
  • 225000030066
    $0.16
    NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×2
  • 235000071073
    $0.12
    SCREW M4 X 6,C - 5000071073×1
