GS4.6A SWISS GENERATOR

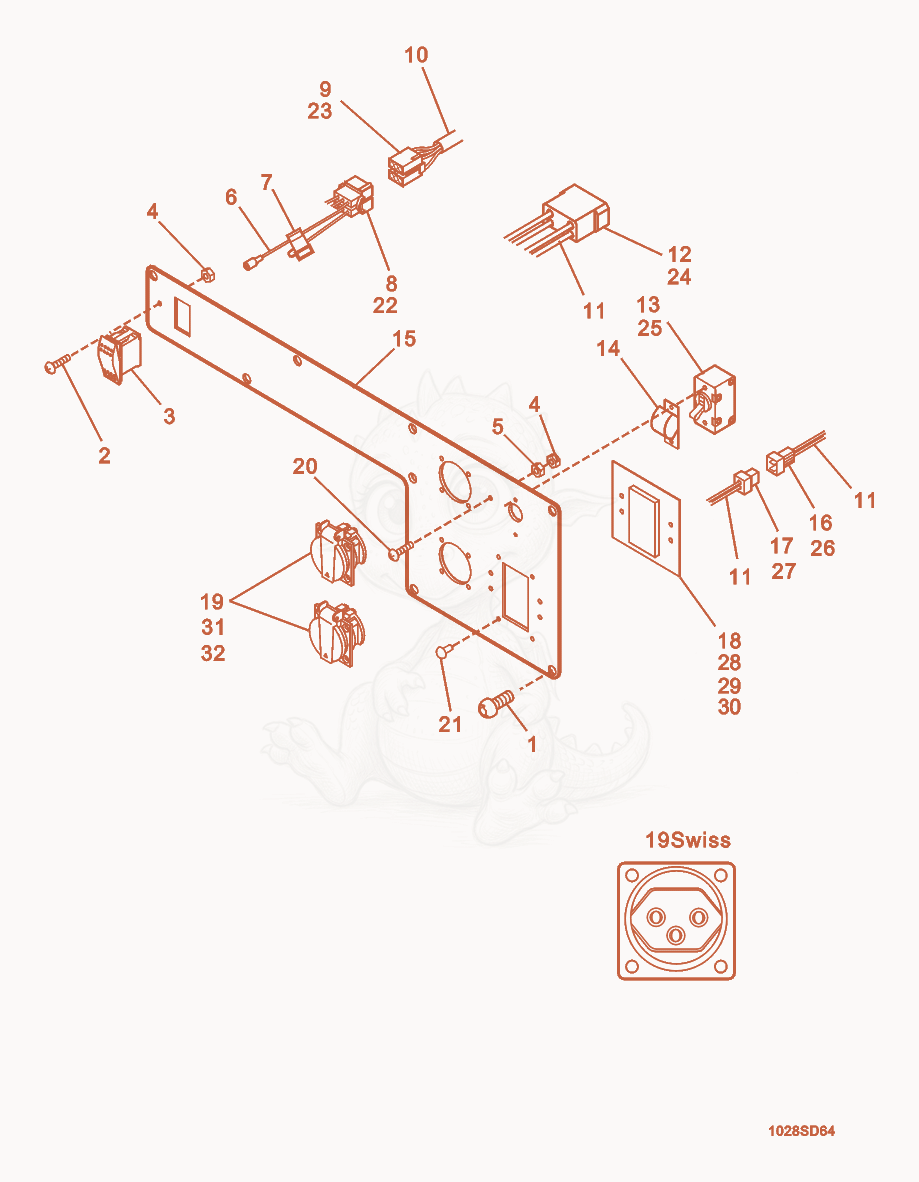

GS4.6A Control Panel w/o Earth Leakage Circuit Breaker Diagram

Exploded parts diagram of the Control Panel w/o Earth Leakage Circuit Breaker of a Wacker Neuson GS4.6A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000085172
    $0.52
    SCREW M8 X 12,SOC BUTN - 5000085172×9
  • 25000110405
    $0.06
    SCREW M4 X 14 PHIL HD - 5000110405×1
  • 35000087078
    $15.93
    SWITCH-ROCKER,DPDT - 5000087078×1
  • 45000010370
    $0.03
    NUT-LOCK M4 HEX. - 5000010370×2
  • 55000010872
    $0.01
    NUT M4 8,HEX. - 5000010872×1
  • 65000086159
    $67.16
    WIRING HARNESS-ELE.START - 5000086159×1
  • 75000077219
    $0.54
    FUSE 15AMP,BLADE TYPE - 5000077219×1
  • 85000089113
    $1.05
    HOUSING-PLUG,6 PIN - 5000089113×1
  • 95000089115
    $1.13
    HOUSING-SOCKET,6 PIN - 5000089115×1
  • 105000086156
    $65.10
    WIRING HARNESS-ENGINE - 5000086156×1
  • 115000110470
    $119.92
    WIRING HARNESS-MAIN,MED,50HZ - 5000110470×1
  • 125000112058
    $6.50
    HOUSING-CONNECTOR 4 POLE,PLG - 5000112058×1
  • 135000110362
    $29.32
    BREAKER-CIRCUIT,1-POLE,20A - 5000110362×1
  • 145000111919
    $30.88
    COVER-CIRCUIT BREAKER,1-POLE - 5000111919×1
  • 155000110379
    $179.55
    NLA PANEL-CONTROL,MED,50HZ - 5000110379×1
  • 165000112056
    $0.48
    HOUSING-CONNECTOR 2 POLE,PLG - 5000112056×2
  • 175000112055
    $0.91
    HOUSING-CONNECTOR 2 POLE,RCPT - 5000112055×2
  • 185000111564
    $20.93
    COVER-PLATE,ELCB,2 POLE - 5000111564×1
  • 195000112377
    $38.95
    RECEPTACLE 230V,16A,SWISS - 5000112377×2
  • 205000110951
    $0.03
    SCREW M4 X 20 PHIL HD - 5000110951×1
  • 215000111204
    $1.85
    NLA-PLUG-HOLE,.182-.192 DIA,ELCB - 5000111204×4
  • 225000089114
    $0.66
    PIN 20-14 GA .084 DIA. - 5000089114×5
  • 235000089116
    $0.81
    SLEEVE 20-14 GA .084 DIA. - 5000089116×5
  • 245000083679
    $0.45
    TERMINAL-TAB 14-10 .250 - 5000083679×4
  • 255000088237
    $0.03
    SCREW M3 X 6 - 5000088237×2
  • 265000088514
    $0.39
    TERMINAL-RCPT 16-12 .25,NON IN - 5000088514×2
  • 275000083679
    $0.45
    TERMINAL-TAB 14-10 .250 - 5000083679×2
  • 285000110485
    $0.18
    SCREW M3 X 16 PHIL HD - 5000110485×4
  • 295000010632
    $0.03
    WASHER B3.2 FLAT - 5000010632×4
  • 305000086710
    $0.14
    NUT-LOCK M3 HEX - 5000086710×4
  • 315000110405
    $0.06
    SCREW M4 X 14 PHIL HD - 5000110405×8
  • 325000010370
    $0.03
    NUT-LOCK M4 HEX. - 5000010370×8
