GS5.6A-GENERATOR

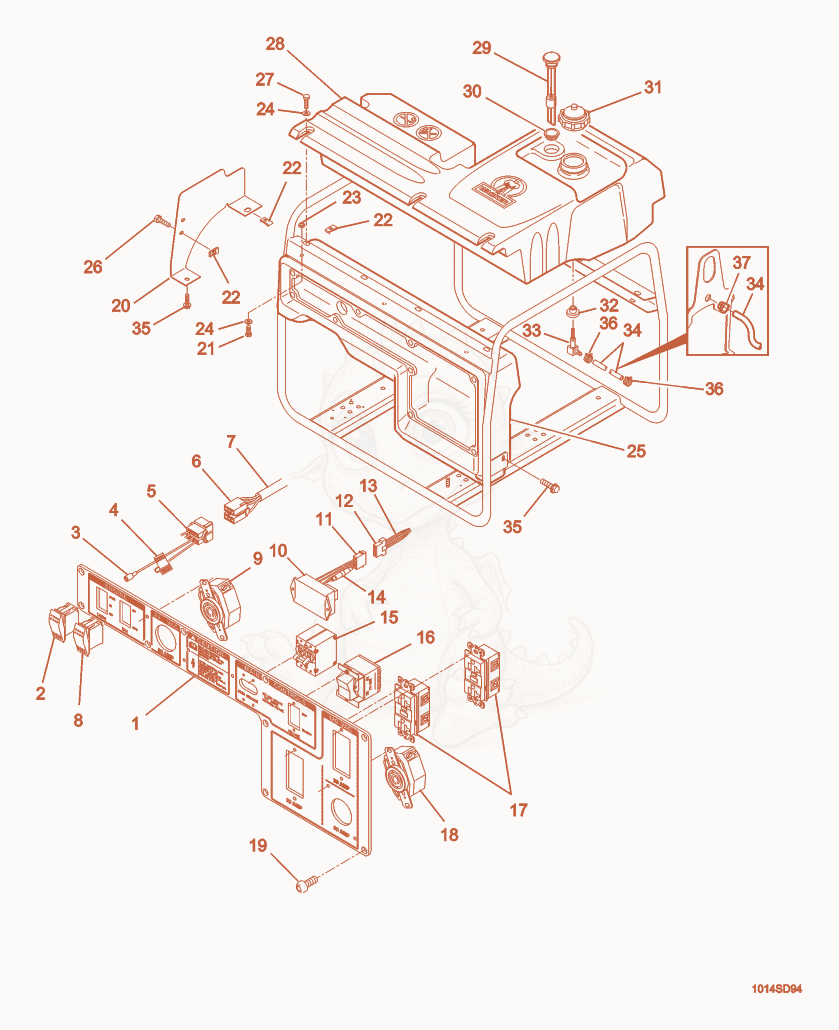

GS5.6A Control Box/Fuel Tank cpl. Diagram

Exploded parts diagram of the Control Box/Fuel Tank cpl. of a Wacker Neuson GS5.6A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000088171
    $112.78
    NLA PANEL-CONTROL BOX FRONT - 5000088171×1
  • 25000087078
    $15.93
    SWITCH-ROCKER,DPDT - 5000087078×1
  • 35000086159
    $67.16
    WIRING HARNESS-ELE.START - 5000086159×1
  • 45000077219
    $0.54
    FUSE 15AMP,BLADE TYPE - 5000077219×1
  • 55000089113
    $1.05
    HOUSING-PLUG,6 PIN - 5000089113×1
  • 55000089114
    $0.66
    PIN 20-14 GA .084 DIA. - 5000089114×5
  • 65000089115
    $1.13
    HOUSING-SOCKET,6 PIN - 5000089115×1
  • 65000089116
    $0.81
    SLEEVE 20-14 GA .084 DIA. - 5000089116×5
  • 75000086156
    $65.10
    WIRING HARNESS-ENGINE - 5000086156×1
  • 85000088489
    $15.08
    SWITCH-ROCKER,SPST - 5000088489×1
  • 95000116711Not stocked
    Receptacle Kit×1
  • 95000110951
    $0.03
    SCREW M4 X 20 PHIL HD - 5000110951×2
  • 95000082949
    $21.92
    RECEPTACLE 20A, 250V - 5000082949×1
  • 95000010370
    $0.03
    NUT-LOCK M4 HEX. - 5000010370×2
  • 105000010370
    $0.03
    NUT-LOCK M4 HEX. - 5000010370×2
  • 105000088174
    $0.18
    SCREW M4 X 12 - 5000088174×2
  • 105000115479
    $199.49
    NLA CONTROL MODULE-AUTO IDLE - 5000115479×1
  • 115000089117
    $1.13
    PLUG-4 PIN - 5000089117×1
  • 115000089118
    $0.66
    PIN 20-14 AWG. BRASS - 5000089118×4
  • 125000089119
    $0.81
    RECEPTACLE-SOCKET 4 PIN - 5000089119×1
  • 125000089120
    $102.95
    SLEEVE 20-14 AWG - 5000089120×4
  • 135000089594
    $52.31
    WIRING HARNESS-MAIN - 5000089594×1
  • 145000089121
    $1.63
    FUSE 1.6 AMP - 5000089121×1
  • 155000088170
    $56.00
    BREAKER-CIRCUIT,2POLE,24AMP - 5000088170×1
  • 155000088237
    $0.03
    SCREW M3 X 6 - 5000088237×4
  • 165000088237
    $0.03
    SCREW M3 X 6 - 5000088237Unknown×2
  • 165000082945Not stocked
    Rocker switch×1
  • 175000010370
    $0.03
    NUT-LOCK M4 HEX. - 5000010370×4
  • 175000088174
    $0.18
    SCREW M4 X 12 - 5000088174×4
  • 175000089849
    $145.30
    KIT-GFI RECEPTACLE - 5000089849×2
  • 185000010370
    $0.03
    NUT-LOCK M4 HEX. - 5000010370×2
  • 185000082948
    $26.06
    RECEPTACLE 30A, 125V - 5000082948×1
  • 185000088174
    $0.18
    SCREW M4 X 12 - 5000088174×2
  • 195000085172
    $0.52
    SCREW M8 X 12,SOC BUTN - 5000085172×9
  • 205000088399
    $48.57
    BRACKET-CONT.BOX,FUEL,PAINTED - 5000088399×1
  • 215000014663
    $0.06
    SCREW M6 X 16 HX.HD. - 5000014663×3
  • 225000088190
    $0.57
    NUT M6 CLIP ZINC PLATED - 5000088190×8
  • 235000010368
    $0.10
    NUT-LOCK M6 HEX. - 5000010368×3
  • 245000010373
    $0.03
    WASHER B6.4 FLAT - 5000010373×9
  • 255000114555
    $219.24
    BOX-CONTROL ASSEMBLY - 5000114555×1
  • 265000012356
    $0.33
    SCREW M6 X 10 HX.HD. - 5000012356×2
  • 275000088806
    $0.83
    SCREW-LOCK M6X25,HEX - 5000088806×6
  • 285000088154
    $283.16
    TANK-FUEL - 5000088154×1
  • 295000088165
    $10.59
    Gauge-fuel - 5000088165×1
  • 305000088166
    $5.33
    BUSHING-FUEL GAUGE - 5000088166×1
  • 315000119500
    $8.15
    CAP-FUEL - 5000119500×1
  • 325000053577
    $0.69
    BUSHING-TANK VALVE MOUNTING - 5000053577×1
  • 335000088179
    $8.97
    PENDX 5000162771-FITTING-ELBOW W/SCREEN - 5000088179×1
  • 345000114088
    $13.85
    HOSE-FUEL,3/16 X 28.25 - 5000114088×1
  • 355000028949
    $0.29
    SCREW M6 X 16,HX.HD,SER.FLG - 5000028949×2
  • 355000089386
    $0.79
    NUT-JACK THD.,INSERT - 5000089386×2
  • 365000114201
    $0.26
    CLAMP-HOSE 3/16 - 5000114201×2
  • 375000114199
    $1.00
    BUSHING-SNAP .50 ID - 5000114199×1
