GS5.6A-GENERATOR

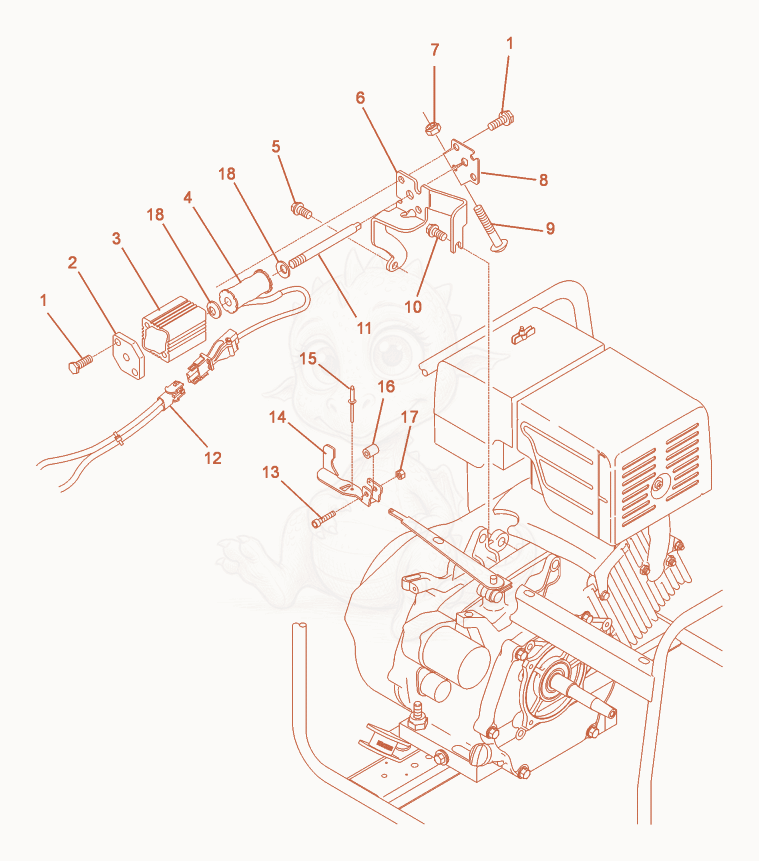

GS5.6A Engine Auto Idle cpl. Diagram

Exploded parts diagram of the Engine Auto Idle cpl. of a Wacker Neuson GS5.6A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000086994
    $0.12
    SCREW M6 X 16 D,FLANGE - 5000086994×4
  • 25000085908
    $10.92
    COVER-ELECTROMAGNET,FRONT - 5000085908×1
  • 35000085910
    $15.76
    HOUSING-ELECTROMAGNET - 5000085910×1
  • 45000085953
    $57.28
    ACTUATOR-COIL ELECTROMAGNET - 5000085953×1
  • 55000053990
    $2.33
    SCREW M6 X 12,HX.FLANGE HD. - 5000053990×1
  • 65000086747
    $42.00
    BRACKET-AUTO IDLE,11&13 HP HDA - 5000086747×1
  • 75000010368
    $0.10
    NUT-LOCK M6 HEX. - 5000010368×1
  • 85000085909
    $6.67
    COVER,ELECTROMAGNET,BACK - 5000085909×1
  • 95000086995
    $0.50
    BOLT-CARRIAGE M6X45 ZN - 5000086995×1
  • 105000086994
    $0.12
    SCREW M6 X 16 D,FLANGE - 5000086994×1
  • 115000085911
    $18.99
    CORE-ELECTROMAGNET - 5000085911×1
  • 125000089122
    $1.35
    RECEPTACLE-2 PIN - 5000089122×1
  • 125000089123
    $0.81
    SLEEVE 20-14 AWG - 5000089123×2
  • 135000011570
    $0.20
    SCREW M4 X 16 SOC.HD. - 5000011570×1
  • 145000086702
    $18.71
    LEVER-AUTO IDLE,11&13 HP HONDA - 5000086702×1
  • 155000084619
    $0.29
    RIVET-POP,OPEN END - 5000084619×1
  • 165000087058
    $0.19
    SPACER .25 OD X .25 L - 5000087058×1
  • 175000010370
    $0.03
    NUT-LOCK M4 HEX. - 5000010370×1
  • 185000013601
    $0.12
    WASHER-LOCK A8 - 5000013601×2
