GS5.6A-GENERATOR,CAN

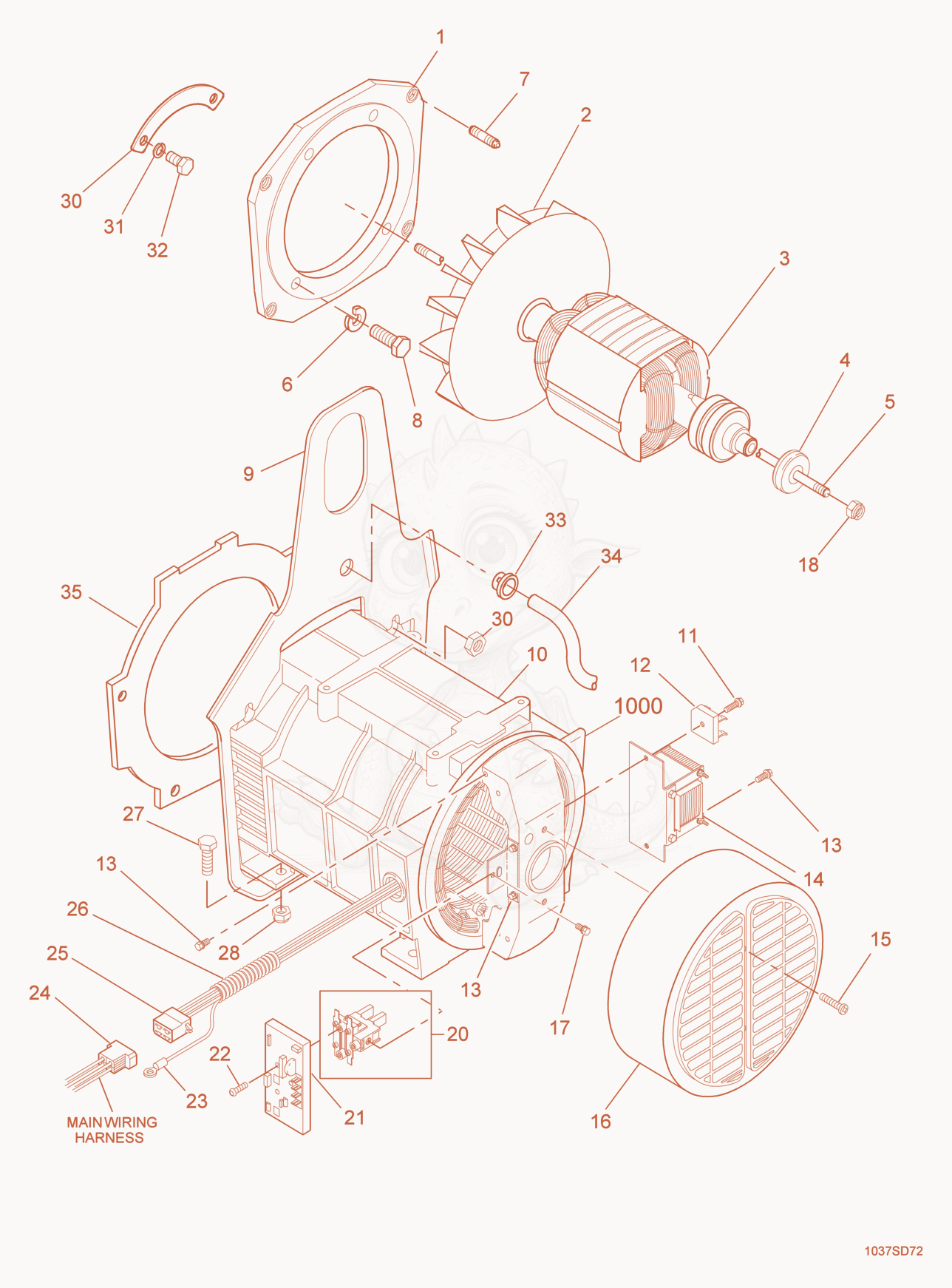

GS5.6A Generator Front Diagram

Exploded parts diagram of the Generator Front of a Wacker Neuson GS5.6A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000087825
    $56.73
    ADAPTER-ENGINE,FLANGE B - 5000087825×1
  • 25000111720
    $65.10
    FAN - 5000111720×1
  • 35000111721
    $812.33
    ROTOR-95MM STACK - 5000111721×1
  • 45000087819
    $69.30
    BEARING-ANTI CREEP - 5000087819×1
  • 55000087050
    $8.21
    STUD 5/16-24 X 8.860 - 5000087050×1
  • 65000025649
    $0.04
    WASHER-LOCK 3/8,MED. - 5000025649×4
  • 75000089664
    $5.88
    STUD-M8 X 34 - 5000089664×4
  • 85000025554
    $0.14
    SCREW 3/8-16 X 1 GR5,HX.HD. - 5000025554×4
  • 95000087333
    $73.23
    BRACKET-LIFTING - 5000087333×1
  • 105000118997
    $1,368.99
    KIT-STATOR,G5.6 CANADIAN - 5000118997×1
  • 115000111764
    $1.39
    Screw - 5000111764×1
  • 125000087841
    $88.21
    DIODE-BRIDGE RECTIFIER,GEN. - 5000087841×1
  • 135000116378Not stocked
    Screw×4
  • 145000088274
    $880.72
    Choke - 5000088274×1
  • 155000116462
    $4.15
    SCREW M5X30 - 5000116462×2
  • 165000087815
    $87.37
    COVER-STEEL,GENERATOR - 5000087815×1
  • 175000116464
    $9.56
    SCREW M5X10 - 5000116464×1
  • 185000087054
    $1.72
    NUT-LOCK 5/16-24,BINX GRADE S - 5000087054×1
  • 205000087838
    $474.27
    BRUSH-HOLDER,WITH BRUSHES - 5000087838×1
  • 215000087839
    $445.36
    REGULATOR-VOLTAGE,GENERATOR - 5000087839×1
  • 225000116465
    $2.56
    SCREW M5X20 - 5000116465×3
  • 235000028304
    $0.29
    TERMINAL-RING 16-14 4.4 ID,INS - 5000028304×1
  • 245000112058
    $6.50
    HOUSING-CONNECTOR 4 POLE,PLG - 5000112058×1
  • 245000083679
    $0.45
    TERMINAL-TAB 14-10 .250 - 5000083679×4
  • 255000112057
    $1.42
    HOUSING-CONNECTOR 4 POLE,RCPT - 5000112057×1
  • 255000088514
    $0.39
    TERMINAL-RCPT 16-12 .25,NON IN - 5000088514×4
  • 265000088168
    $4.46
    HOUSING-WIREWAY - 5000088168×1
  • 275000011439
    $0.23
    SCREW M10 X 30 HX.HD - 5000011439×4
  • 285000010365
    $0.20
    NUT-LOCK M10 HEX. - 5000010365×4
  • 295000030066
    $0.16
    NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×4
  • 305000112206
    $2.34
    NLA PLATE-GENERATOR - 5000112206×1
  • 315000025648
    $0.29
    WASHER-LOCK 5/16,MED - 5000025648×2
  • 325000052203
    $0.19
    SCREW 5/16-24 X 7/8 GR5,HX.HD. - 5000052203×2
  • 335000114199
    $1.00
    BUSHING-SNAP .50 ID - 5000114199×1
  • 345000114088
    $13.85
    HOSE-FUEL,3/16 X 28.25 - 5000114088×1
  • 355000112161
    $26.00
    BAFFLE-AIR - 5000112161×1
