GS5.7A SCHUKO GENERATOR

GS5.7A Control Panel w/o Earth Leakage Circuit Breaker Diagram

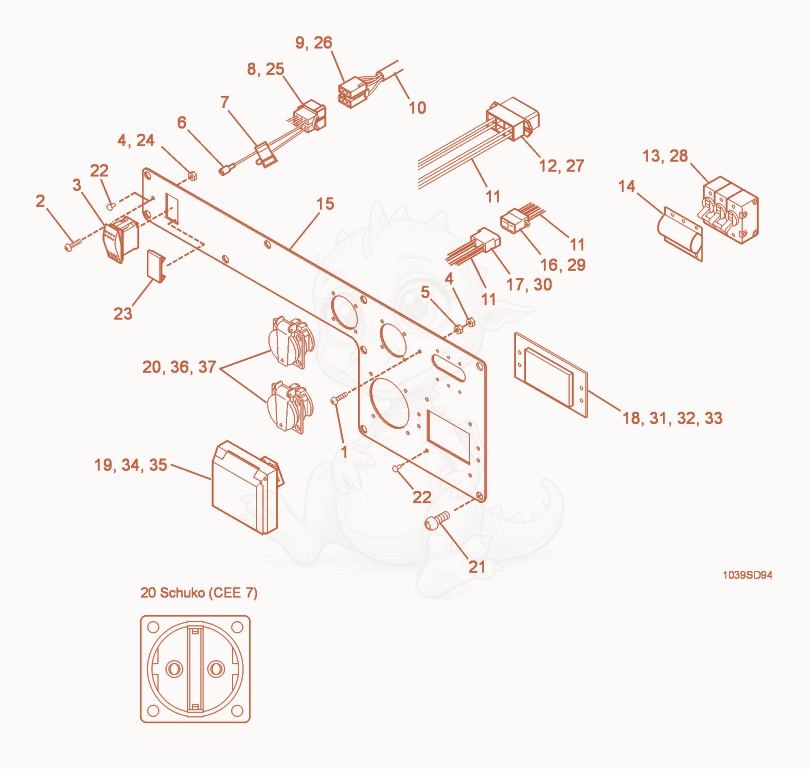

Exploded parts diagram of the Control Panel w/o Earth Leakage Circuit Breaker of a Wacker Neuson GS5.7A, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

15000110951
$0.03
SCREW M4 X 20 PHIL HD - 5000110951×1
45000010370
$0.03
NUT-LOCK M4 HEX. - 5000010370×1
55000010872
$0.01
NUT M4 8,HEX. - 5000010872×1
115000110554
$140.70
WIRING HARNESS-MAIN,3PH,50HZ - 5000110554×1
125000111881
$3.36
HOUSING-CONNECTOR 6 POLE,PLUG - 5000111881×1
135000110363
$113.55
BREAKER-CIRCUIT,3-POLE,9A - 5000110363×1
145000110365
$44.55
COVER-CIRCUIT BREAKER,3-POLE - 5000110365×1
155000115690Not stocked
Control panel×1
165000112057
$1.42
HOUSING-CONNECTOR 4 POLE,RCPT - 5000112057×2
175000112058
$6.50
HOUSING-CONNECTOR 4 POLE,PLG - 5000112058×2
185000111565Not stocked
Cover×1
195000115701
$105.11
RECEPTACLE,5-PIN,400V,16A - 5000115701×1
205000110358
$41.76
RECEPTACLE-SHKO,230V,16A,IP44 - 5000110358×2
215000085172
$0.52
SCREW M8 X 12,SOC BUTN - 5000085172×9
225000111204
$1.85
NLA-PLUG-HOLE,.182-.192 DIA,ELCB - 5000111204×5
235000165482
$1.84
COVER-SWITCH RECTANGULAR - 5000165482×1
275000083679
$0.45
TERMINAL-TAB 14-10 .250 - 5000083679×4
285000088237
$0.03
SCREW M3 X 6 - 5000088237×6
295000088514
$0.39
TERMINAL-RCPT 16-12 .25,NON IN - 5000088514×2
305000083679
$0.45
TERMINAL-TAB 14-10 .250 - 5000083679×2
315000110405
$0.06
SCREW M4 X 14 PHIL HD - 5000110405×4
325000010628
$0.02
WASHER A4.3 FLAT - 5000010628×4
335000010370
$0.03
NUT-LOCK M4 HEX. - 5000010370×4
345000110405
$0.06
SCREW M4 X 14 PHIL HD - 5000110405×4
355000010370
$0.03
NUT-LOCK M4 HEX. - 5000010370×4
365000110405
$0.06
SCREW M4 X 14 PHIL HD - 5000110405×8
375000010370
$0.03
NUT-LOCK M4 HEX. - 5000010370×8
