GS5.7A SWISS GENERATOR

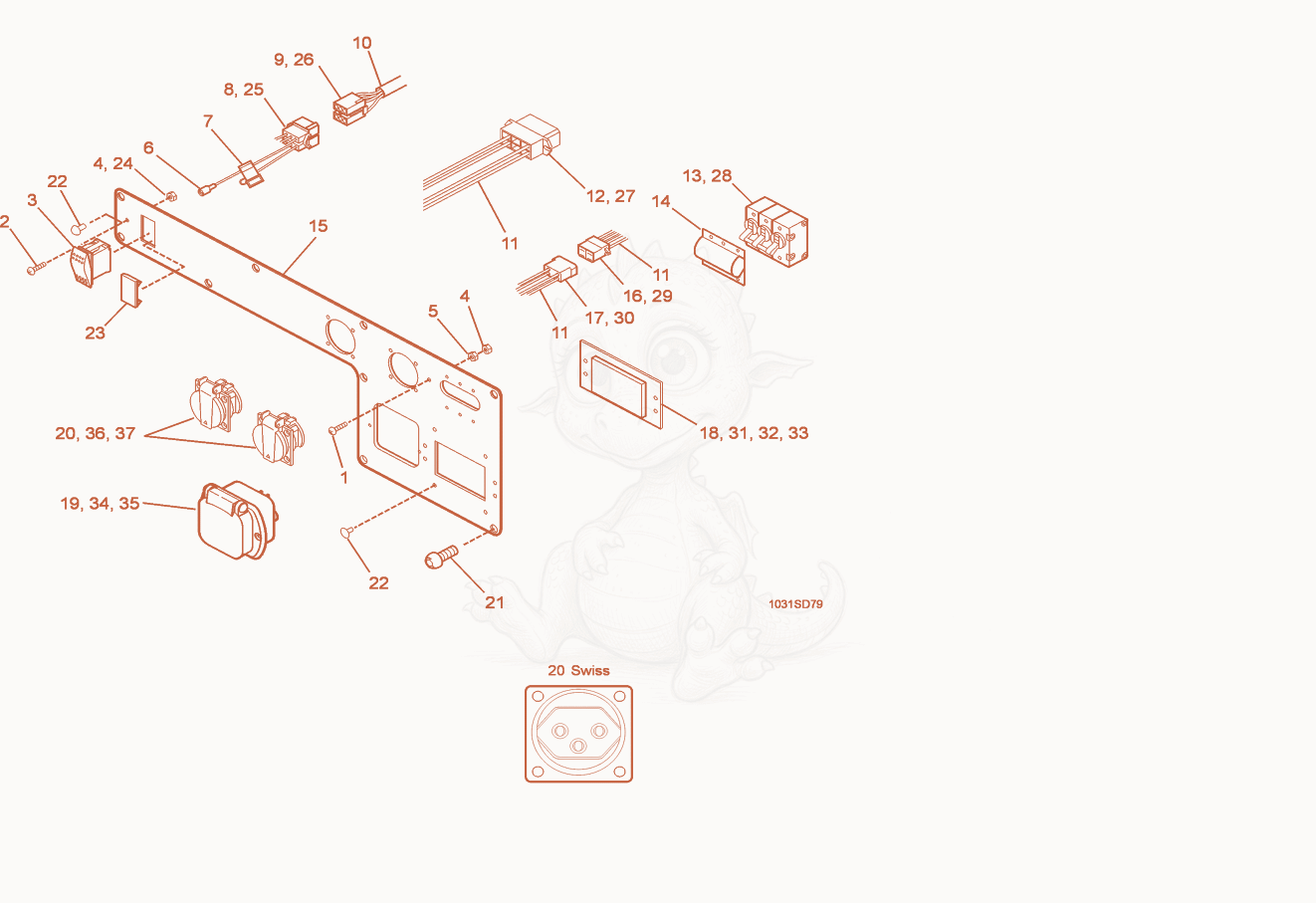

GS5.7A Control Panel w/o Earth Leakage Circuit Breaker Diagram

Exploded parts diagram of the Control Panel w/o Earth Leakage Circuit Breaker of a Wacker Neuson GS5.7A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000110951
    $0.03
    SCREW M4 X 20 PHIL HD - 5000110951×1
  • 25000110405
    $0.06
    SCREW M4 X 14 PHIL HD - 5000110405×1
  • 35000087078
    $15.93
    SWITCH-ROCKER,DPDT - 5000087078×1
  • 45000010370
    $0.03
    NUT-LOCK M4 HEX. - 5000010370×2
  • 55000010872
    $0.01
    NUT M4 8,HEX. - 5000010872×1
  • 65000086159
    $67.16
    WIRING HARNESS-ELE.START - 5000086159×1
  • 75000077219
    $0.54
    FUSE 15AMP,BLADE TYPE - 5000077219×1
  • 85000089113
    $1.05
    HOUSING-PLUG,6 PIN - 5000089113×1
  • 95000089115
    $1.13
    HOUSING-SOCKET,6 PIN - 5000089115×1
  • 105000086156
    $65.10
    WIRING HARNESS-ENGINE - 5000086156×1
  • 115000110554
    $140.70
    WIRING HARNESS-MAIN,3PH,50HZ - 5000110554×1
  • 125000111881
    $3.36
    HOUSING-CONNECTOR 6 POLE,PLUG - 5000111881×1
  • 135000110363
    $113.55
    BREAKER-CIRCUIT,3-POLE,9A - 5000110363×1
  • 145000110365
    $44.55
    COVER-CIRCUIT BREAKER,3-POLE - 5000110365×1
  • 155000112378Not stocked
    Control panel×1
  • 165000112057
    $1.42
    HOUSING-CONNECTOR 4 POLE,RCPT - 5000112057×2
  • 175000112058
    $6.50
    HOUSING-CONNECTOR 4 POLE,PLG - 5000112058×2
  • 185000111565Not stocked
    Cover×1
  • 195000112376
    $317.91
    RECEPTACLE-5 PIN,400V,15A,SWIS - 5000112376×1
  • 205000112377
    $38.95
    RECEPTACLE 230V,16A,SWISS - 5000112377×2
  • 215000085172
    $0.52
    SCREW M8 X 12,SOC BUTN - 5000085172×9
  • 225000111204
    $1.85
    NLA-PLUG-HOLE,.182-.192 DIA,ELCB - 5000111204×4
  • 255000089114
    $0.66
    PIN 20-14 GA .084 DIA. - 5000089114×5
  • 265000089116
    $0.81
    SLEEVE 20-14 GA .084 DIA. - 5000089116×5
  • 275000083679
    $0.45
    TERMINAL-TAB 14-10 .250 - 5000083679×4
  • 285000088237
    $0.03
    SCREW M3 X 6 - 5000088237×6
  • 295000088514
    $0.39
    TERMINAL-RCPT 16-12 .25,NON IN - 5000088514×2
  • 305000083679
    $0.45
    TERMINAL-TAB 14-10 .250 - 5000083679×2
  • 315000110405
    $0.06
    SCREW M4 X 14 PHIL HD - 5000110405×4
  • 325000010628
    $0.02
    WASHER A4.3 FLAT - 5000010628×4
  • 335000010370
    $0.03
    NUT-LOCK M4 HEX. - 5000010370×4
  • 345000110405
    $0.06
    SCREW M4 X 14 PHIL HD - 5000110405×2
  • 355000010370
    $0.03
    NUT-LOCK M4 HEX. - 5000010370×2
  • 365000110405
    $0.06
    SCREW M4 X 14 PHIL HD - 5000110405×8
  • 375000010370
    $0.03
    NUT-LOCK M4 HEX. - 5000010370×8
