GS8.5V-GENERATOR

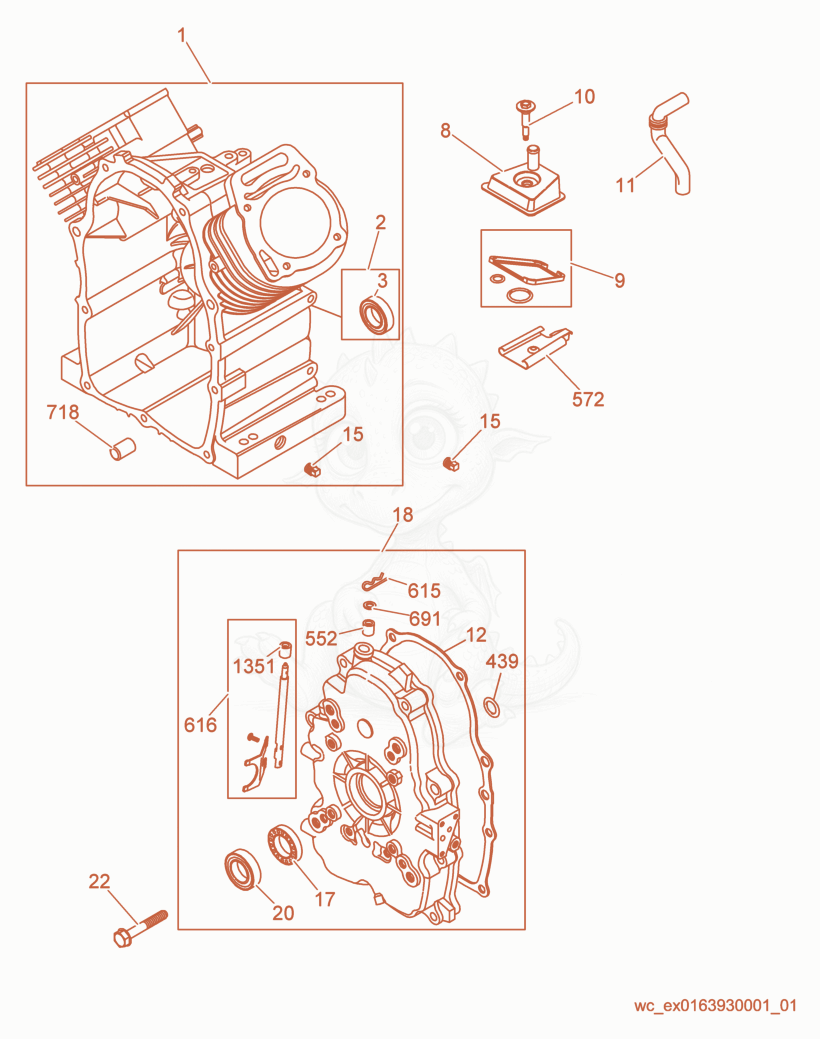

GS8.5V Cylinder/Crankcase Cover Diagram

Exploded parts diagram of the Cylinder/Crankcase Cover of a Wacker Neuson GS8.5V, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000118517
    $1,144.12
    CYLINDER BLOCK ASSY. - 5000118517×1
  • 25000118519
    $33.80
    Bushing - 5000118519×1
  • 35000081053
    $8.23
    SEAL-SHAFT - 5000081053×1
  • 85000160159
    $86.27
    BREATHER ASSEMBLY - 5000160159×1
  • 95000160160
    $11.01
    X-5200002290 GASKET-BREATHER - 5000160160×1
  • 105000118451
    $11.33
    SCREW-BREATHER - 5000118451×1
  • 115000081049
    $33.72
    TUBE - 5000081049×1
  • 125000081020
    $73.01
    GASKET-CRANKCASE COVER - 5000081020×1
  • 155000039610Not stocked
    Oil plug×1
  • 175000110082
    $59.57
    BEARING-BALL - 5000110082×1
  • 185000116554Not stocked
    Crankcase cover×1
  • 205000081018
    $15.51
    SEAL-SHAFT - 5000081018×1
  • 225000208196
    $5.56
    Screw - 5000208196×8
  • 4395000118494
    $9.19
    O-ring - 5000118494×1
  • 5525000118441
    $12.47
    BUSHING-CRANK,GOVERNOR - 5000118441×1
  • 5725000080981
    $24.94
    Baffle - 5000080981×1
  • 6155000118478
    $7.25
    PIN-COTTER - 5000118478×1
  • 6165000080988
    $52.34
    YOKE-GOVERNOR CONTROL - 5000080988×1
  • 6915000118432
    $8.24
    X-5200001345 SEAL-SHAFT,GOVERNOR - 5000118432×1
  • 7185000118435
    $9.43
    PIN-LOCATING - 5000118435×1
  • 13515000119790
    $13.05
    BUSHING-CRANK - 5000119790×1
