GS8.5V-GENERATOR

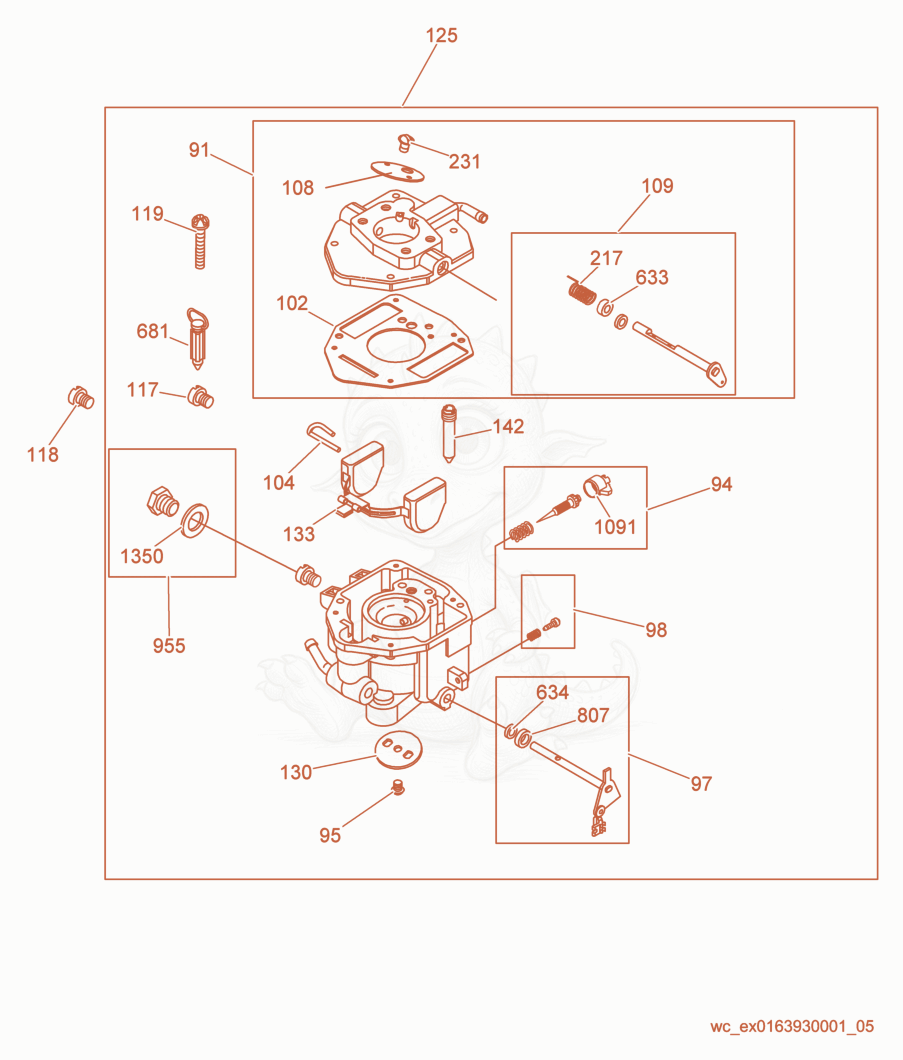

GS8.5V Carburetor Diagram

Exploded parts diagram of the Carburetor of a Wacker Neuson GS8.5V, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 915000208203Not stocked
    Body×1
  • 945000116541Not stocked
    Valve×1
  • 955000118446Not stocked
    Screw×1
  • 975000208204Not stocked
    Throttle shaft×1
  • 985000116537Not stocked
    Idle speed screw×1
  • 1025000079783Not stocked
    Gasket×1
  • 1045000080895Not stocked
    Pin×1
  • 1085000080008Not stocked
    Valve×1
  • 1095000208205Not stocked
    Choke shaft×1
  • 1175000110086Not stocked
    Main jet×1
  • 1185000208206Not stocked
    Main jet×1
  • 1195000080894Not stocked
    Screw×1
  • 1255000110085Not stocked
    Carburetor×1
  • 1305000080901Not stocked
    Valve×1
  • 1335000160172Not stocked
    Float×1
  • 1425000080898Not stocked
    Jet×1
  • 2175000208208Not stocked
    Spring×1
  • 2315000118446Not stocked
    Screw×2
  • 6335000116524Not stocked
    Shaft seal×1
  • 6345000080799Not stocked
    Seal×1
  • 6815000118489Not stocked
    Valve needle×1
  • 8075000080902Not stocked
    Ring×1
  • 9555000080907Not stocked
    Plug (threaded)×1
  • 10915000118474Not stocked
    Limiter cap×1
  • 13505000080908Not stocked
    Sealing ring×1
