GS8003G

GS8003GCN Cylinder head cpl. Diagram

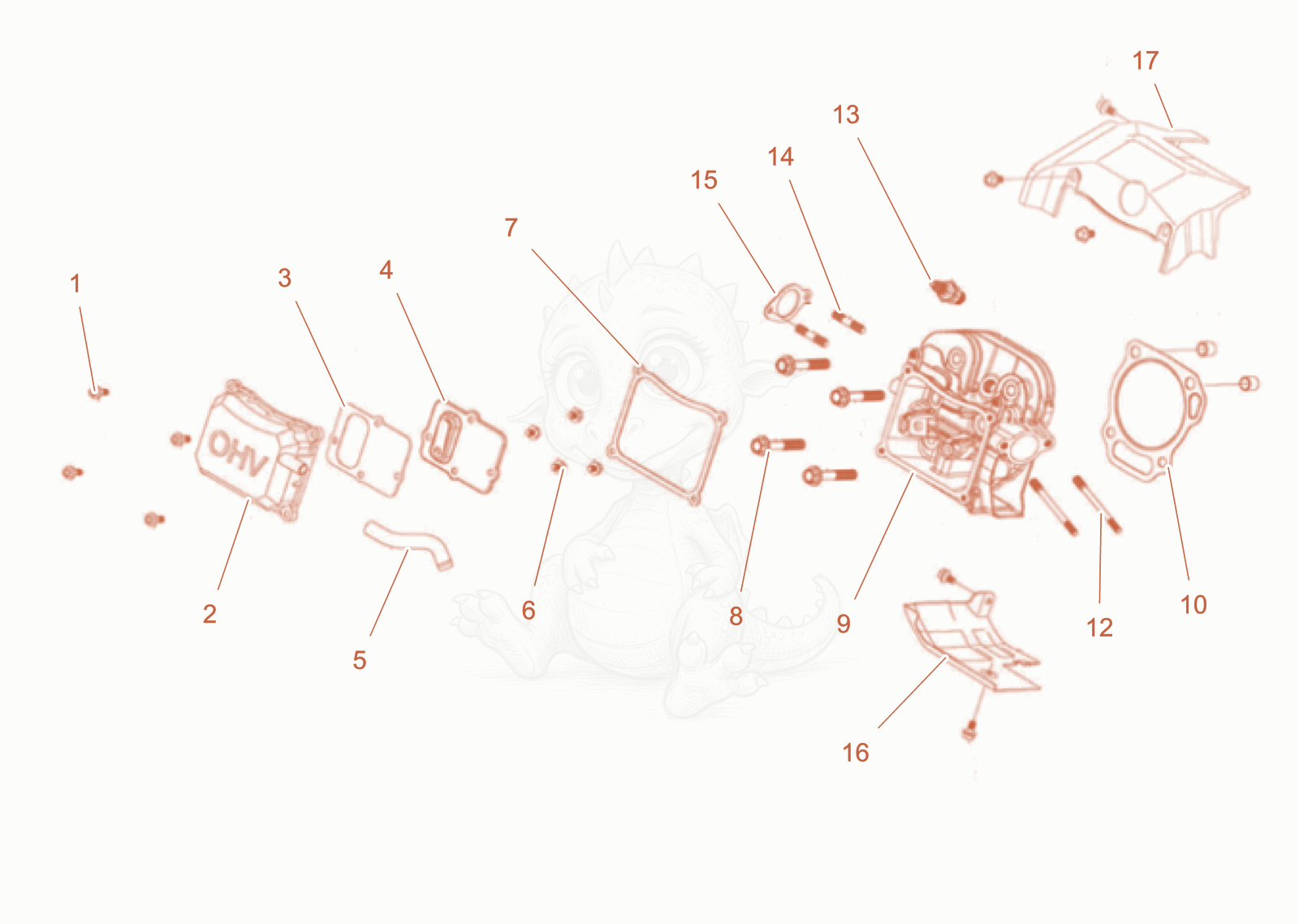

Exploded parts diagram of the Cylinder head cpl. of a Wacker Neuson GS8003GCN, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000409025Not stocked
    Hexagonal head cap screw×4
  • 25100086371Not stocked
    Cylinder head cover×1
  • 35100086372Not stocked
    PACKING，BREATHER CHAMBER×1
  • 45100086373Not stocked
    CAP,BREATHER CHAMBER×1
  • 55100084214Not stocked
    Breather tube×1
  • 65000408861Not stocked
    Hexagonal head cap screw×10
  • 75100084213Not stocked
    Gasket for cylinder head cover×1
  • 85000408568Not stocked
    Flange bolt×4
  • 95100084232Not stocked
    Cylinder end×1
  • 105100084231Not stocked
    Gasket for cylinder head×1
  • 125000408735Not stocked
    Stud×2
  • 135000408439
    $15.70
    Spark plug - 5000408439×1
  • 145000408438Not stocked
    Stud×2
  • 155000408933Not stocked
    Outlet gasket×1
  • 165100084230Not stocked
    Air deflector×1
  • 175100084229Not stocked
    Air deflector×1
