GV2500A

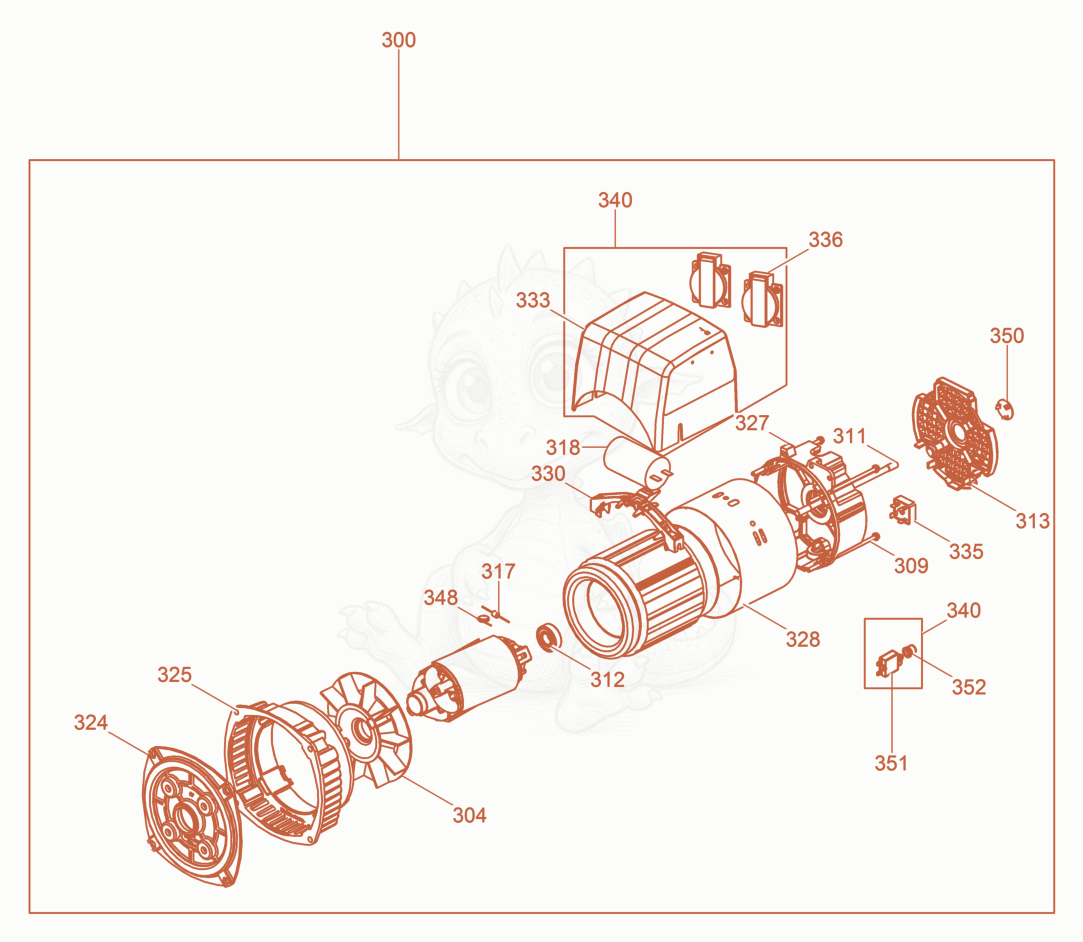

GV2500A Alternator cpl. Diagram

Exploded parts diagram of the Alternator cpl. of a Wacker Neuson GV2500A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 3005100001383
    $963.28
    Alternator cpl. - 5100001383×1
  • 3045000192527Not stocked
    Fan×1
  • 3095000192528Not stocked
    Screw×1
  • 3115000192529Not stocked
    Tension rod×1
  • 3125000157397Not stocked
    Bearing×1
  • 3135000192530Not stocked
    Grid×1
  • 3175000157415Not stocked
    Diode×1
  • 3185000157401Not stocked
    Capacitor×1
  • 3245000192531Not stocked
    Adapter plate×1
  • 3255000192532Not stocked
    Housing×1
  • 3275000192533Not stocked
    Cover×1
  • 3285000192534Not stocked
    Enclosure cylinder×1
  • 3305000192535Not stocked
    Bracket×1
  • 3335000192536Not stocked
    Cover×1
  • 3355000192520Not stocked
    Rectifier×1
  • 3365000156665Not stocked
    Socket Schuko×2
  • 3405200002500Not stocked
    Protective cover×1
  • 3485000192537Not stocked
    Resistor×1
  • 3505000192538Not stocked
    Plug×1
  • 3515000156696Not stocked
    Protective switch×1
  • 3525000156732Not stocked
    Protective cover×1
