GV2500A

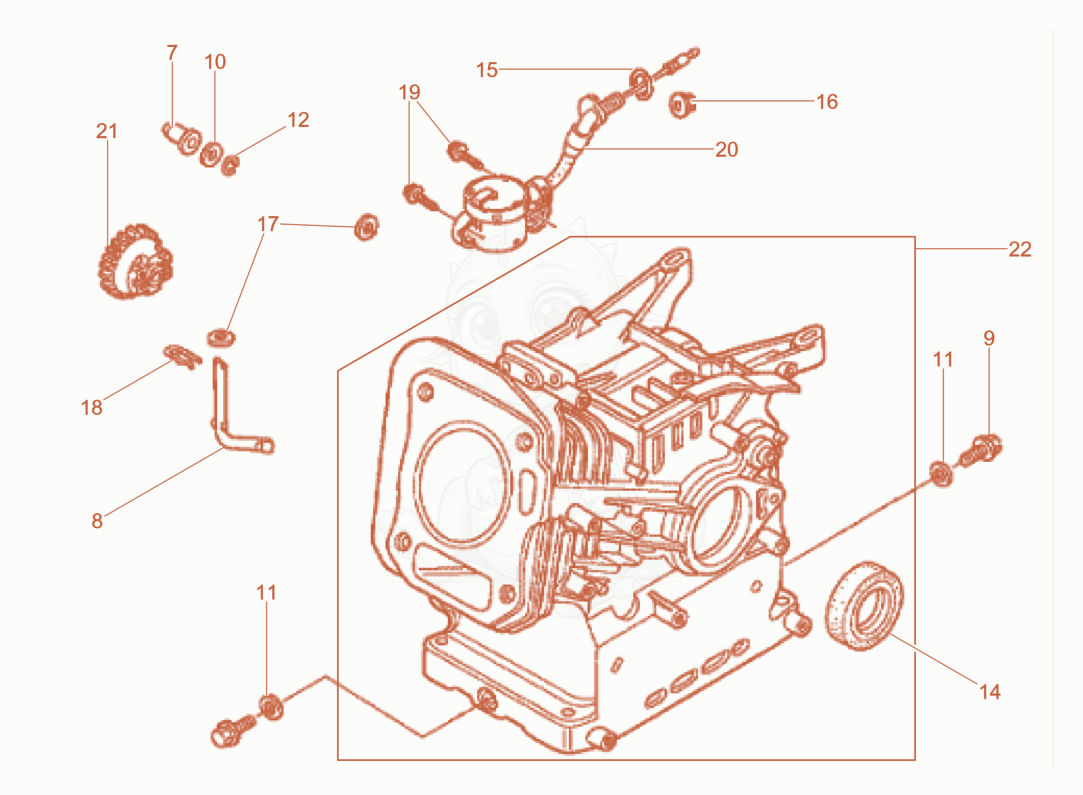

GV2500A Cylinder housing Diagram

Exploded parts diagram of the Cylinder housing of a Wacker Neuson GV2500A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 75100036258Not stocked
    Speed control module×1
  • 85100036259Not stocked
    Speed control module×1
  • 95000070964
    $3.65
    PLUG - 5000070964×2
  • 105100036260Not stocked
    Thrust washer×1
  • 115000070963
    $1.63
    Washer - 5000070963×2
  • 125000081615
    $2.07
    RET.RING 7.7MM,FORM C - 5000081615×1
  • 145100036262Not stocked
    Ring×1
  • 155100036263Not stocked
    O-ring×1
  • 165000072332
    $4.18
    NUT M10,HEX.FLANGE - 5000072332×1
  • 175000071639
    $0.98
    WASHER 6MM,PLAIN - 5000071639×2
  • 185000054033
    $1.84
    PIN - 5000054033×1
  • 195000072333
    $2.43
    SCREW M6 X 12,HX.FLANGE - 5000072333Unknown×2
  • 195100003498Not stocked
    Flange screw×2
  • 205000216513
    $91.52
    SWITCH - 5000216513×1
  • 215100050558Not stocked
    Speed control module cpl.×1
  • 225100050559
    $1,650.42
    Motor housing cpl. - 5100050559×1
