GV2500A

GV2500A Camshaft Diagram

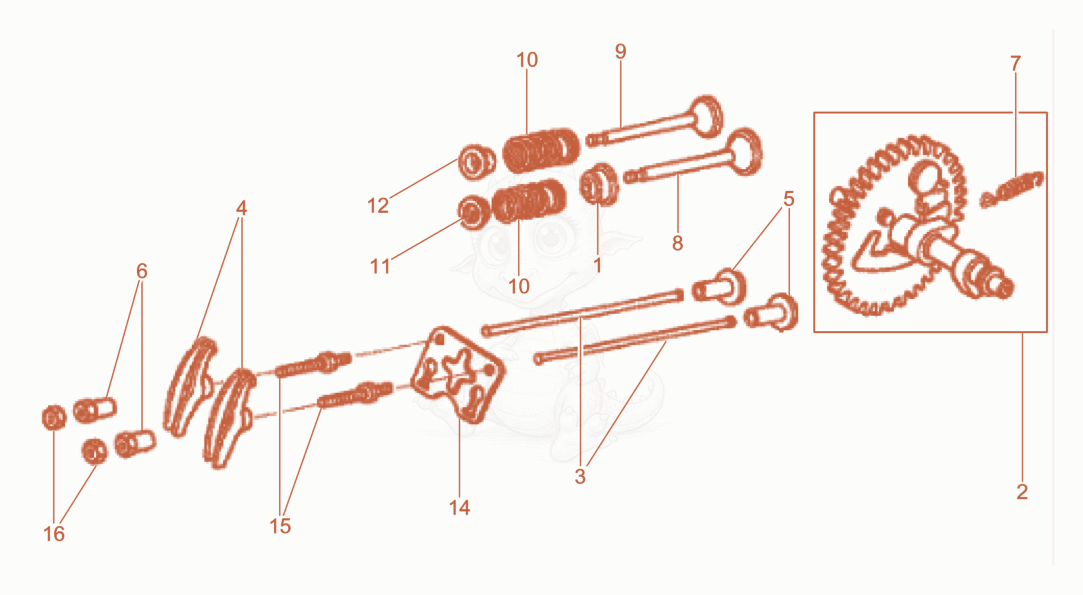

Exploded parts diagram of the Camshaft of a Wacker Neuson GV2500A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000162615
    $10.30
    SEAL-VALVE STEM - 5000162615×1
  • 25100050572
    $362.09
    Camshaft - 5100050572×1
  • 35000071637
    $10.22
    ROD-PUSH - 5000071637×2
  • 45000070986
    $9.08
    ROCKER ARM-VALVE,ENGINE - 5000070986×2
  • 55000070990
    $17.34
    TAPPET-VALVE,ENGINE - 5000070990×2
  • 65100036280Not stocked
    Pivot×2
  • 75000151028
    $3.98
    SPRING-WEIGHT RETURN - 5000151028×1
  • 85100050573
    $33.30
    Intake valve - 5100050573×1
  • 95100005442Not stocked
    Outlet valve×1
  • 105000081760
    $5.49
    SPRING-ENGINE VALVE - 5000081760×2
  • 115100050574Not stocked
    Plate×1
  • 125100050574Not stocked
    Plate×1
  • 145000073265
    $4.88
    PLATE - 5000073265×1
  • 155000072778
    $10.09
    STUD-ROCKER ARM PIVOT - 5000072778×2
  • 165000070984
    $4.97
    NUT 1/4-28,PIVOT ADJUSTMENT - 5000070984×2
