GV 2500A

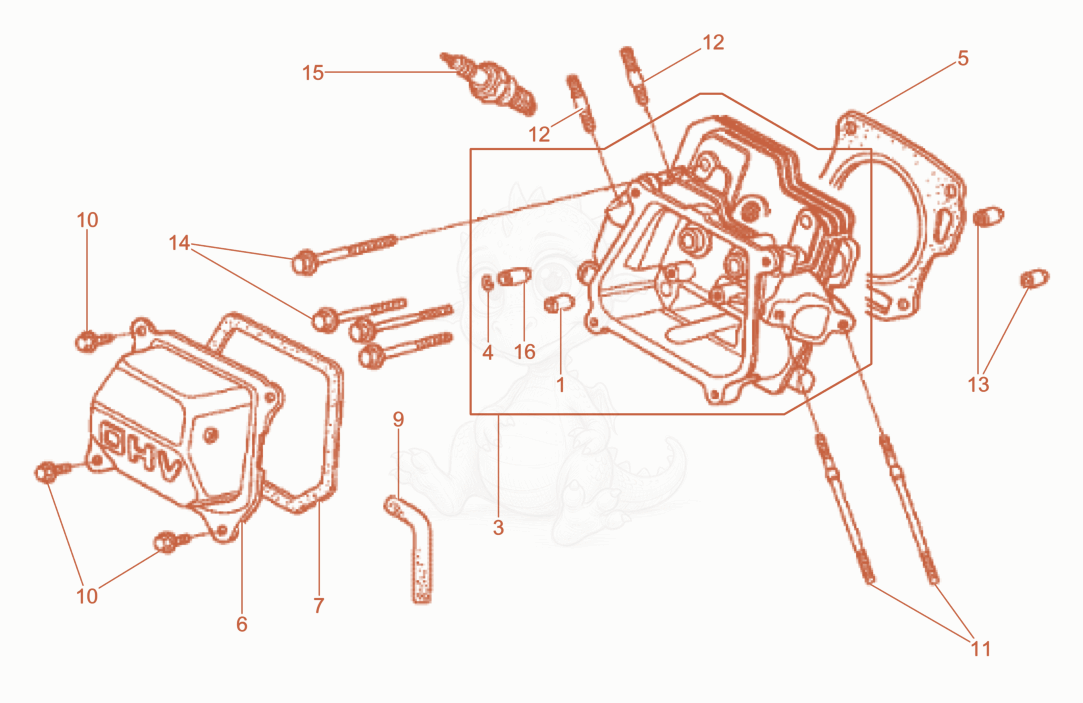

GV2500A Cylinder head Diagram

Exploded parts diagram of the Cylinder head of a Wacker Neuson GV2500A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100050548
    $25.71
    Guide of intake valve - 5100050548×1
  • 35100050549
    $590.30
    Cylinder head cpl. - 5100050549×1
  • 45000081744
    $2.07
    CLIP-VALVE GUIDE - 5000081744×1
  • 55100005329Not stocked
    Cylinder head gasket×1
  • 65100050550Not stocked
    Cover-Cylinder Head×1
  • 75100036252Not stocked
    Cylinder head gasket×1
  • 95100003390Not stocked
    Breather tube×1
  • 105000053990
    $2.33
    SCREW M6 X 12,HX.FLANGE HD. - 5000053990×4
  • 115100050551Not stocked
    Stud×2
  • 125100050552Not stocked
    Stud×2
  • 135000070950
    $5.75
    PIN-DOWEL - 5000070950×2
  • 145000213398
    $2.28
    BOLT-FLANGE,8 X 60 - 5000213398×4
  • 155000207671
    $12.43
    Spark plug - 5000207671×1
  • 165100036253Not stocked
    Guide×1
