Oil-fired space heater with chimney

HIM117 Oil pump cpl. Diagram

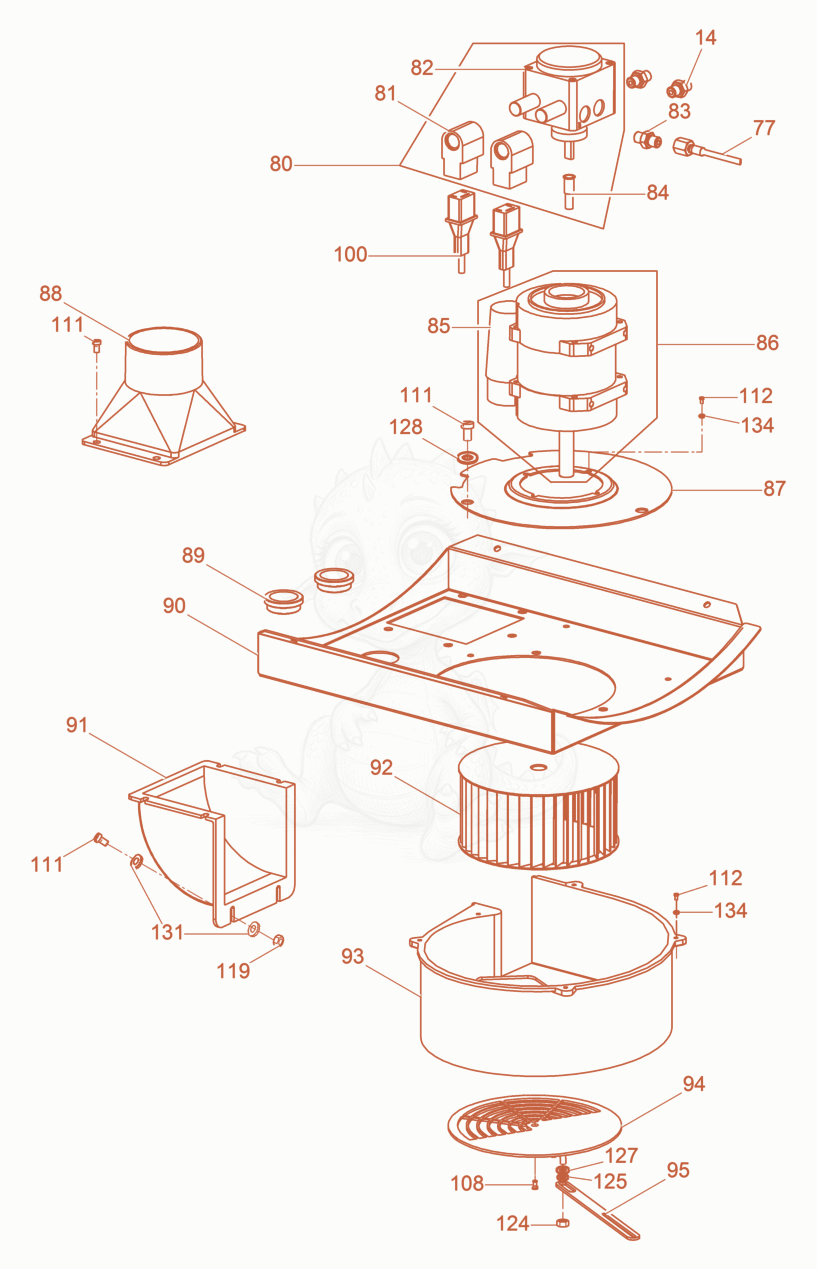

Exploded parts diagram of the Oil pump cpl. of a Wacker Neuson HIM117, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 145000227935Not stocked
    Connector×1
  • 805000227983Not stocked
    Pump×1
  • 815000211521Not stocked
    Solenoid valve actuator×1
  • 825000227973Not stocked
    Solenoid×1
  • 835000227936Not stocked
    Connector×1
  • 845000210765Not stocked
    Coupling element×1
  • 845000227824Not stocked
    Coupling×1
  • 855000210800Not stocked
    Capacitor×1
  • 855000227831Not stocked
    Capacitor×1
  • 865000227816Not stocked
    Engine complete×1
  • 865000227905Not stocked
    Console×1
  • 875000227905Not stocked
    Console×1
  • 885000227800Not stocked
    line channel×1
  • 895000227809Not stocked
    Cable bushing×1
  • 905000227906Not stocked
    Console×1
  • 915000227801Not stocked
    Elbow×1
  • 925000227969Not stocked
    Ventilator×1
  • 935000227799Not stocked
    Clamp×1
  • 945000227907Not stocked
    Fan thermostat×1
  • 955000227908Not stocked
    Lever×1
  • 1085000229069Not stocked
    Screw×1
  • 1115000229072Not stocked
    Screw×7
  • 1125000211177Not stocked
    Screw×9
  • 1195000211557Not stocked
    Nut×2
  • 1245000229088Not stocked
    Nut×2
  • 1255000229090Not stocked
    Disc×2
  • 1275000211709Not stocked
    Washer×2
  • 1285000211190Not stocked
    Washer×3
  • 1315000229092Not stocked
    Disc×4
  • 1345000211567Not stocked
    Washer×9
