Oil-fired space heater with chimney

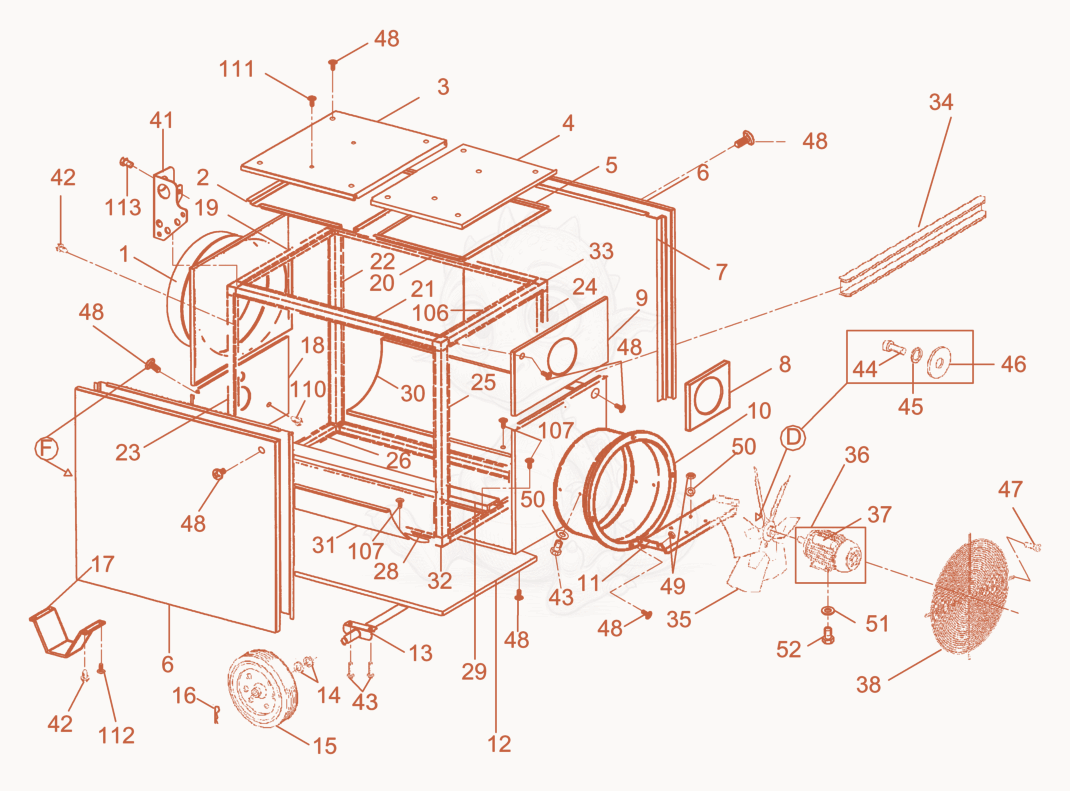

HM174 Fire-place heater Diagram
- 15000210869Not stockedCasing panel×1
- 25000210874Not stockedIsolating sheet metal×1
- 35000210868Not stockedCasing panel×1
- 45000210903Not stockedCasing panel×1
- 55000210905Not stockedIsolating sheet metal×1
- 65000210907Not stockedCasing panel×2
- 75000210909Not stockedIsolating sheet metal×2
- 85000210898Not stockedFlange×1
- 95000210911Not stockedChimney casing panel×1
- 105000210913Not stockedCasing panel with louver×1
- 115000210915Not stockedConsole×1
- 125000210917Not stockedCasing panel×1
- 135000211010Not stockedAxle×1
- 145000211191Not stockedWasher×4
- 155000210691Not stockedWheel×2
- 165000211205Not stockedSpring pin×2
- 175000211005Not stockedSupport×2
- 185000211016Not stockedCasing panel×1
- 195000210919Not stockedFrame profile element×1
- 205000210921Not stockedFrame profile element×1
- 215000210923Not stockedFrame profile element×1
- 225000210925Not stockedFrame element×1
- 235000210927Not stockedFrame element×1
- 245000210929Not stockedFrame element×1
- 255000210931Not stockedFrame element×1
- 265000210933Not stockedFrame element×2
- 285000210937Not stockedFrame element×1
- 295000210939Not stockedPlate×1
- 305000210941Not stockedIsolating sheet metal×1
- 315000210943Not stockedIsolating sheet metal×1
- 325000211285Not stockedCorner element×4
- 335000211286Not stockedCorner element with thread×4
- 345000210977Not stockedFixing bar×1
- 355000211239Not stockedFan blade×1
- 365000210776Not stockedMotor×1
- 375000210799Not stockedCapacitor×1
- 385000211221Not stockedScreen grid×1
- 415000219171Not stockedClamp×4
- 425000211182Not stockedScrew×19
- 435000211170Not stockedHexagonal head cap screw×4
- 445000211172Not stockedScrew×1
- 455000211198Not stockedLockwasher×1
- 465000211194Not stockedWasher×1
- 475000211169Not stockedScrew×4
- 485000211183Not stockedScrew×116
- 495000211187Not stockedNut×16
- 505000211197Not stockedLockwasher×10
- 515000211189Not stockedWasher×4
- 525000211170Not stockedHexagonal head cap screw×6
- 1065000219172Not stockedFrame profile element×1
- 1075000211181Not stockedOval head screw×24
- 1105000211180Not stockedOval head screw×4
- 1115000211166Not stockedScrew×4
- 1125000211167Not stockedScrew×4
- 1135000226252Not stockedHexagonal head cap screw×12
