IREN 57 ST1

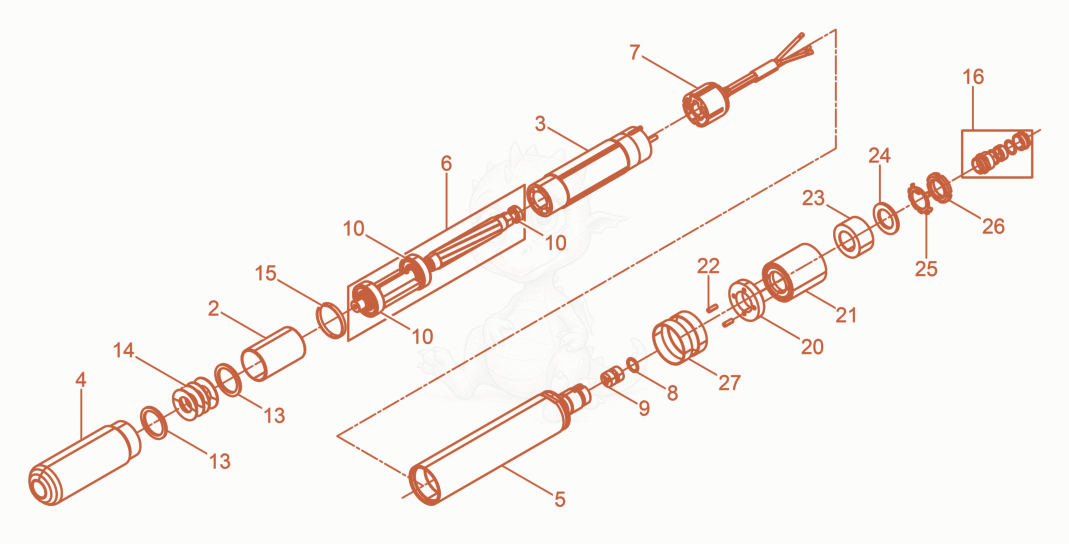

IREN57ST1 Internal Vibrator cpl. Diagram

Exploded parts diagram of the Internal Vibrator cpl. of a Wacker Neuson IREN57ST1, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 25000202834
    $49.73
    SLEEVE-DISTANCE - 5000202834×1
  • 35100015088
    $590.87
    Stator (ND) - 5100015088×1
  • 45000202835
    $241.15
    TUBE-LOWER - 5000202835×1
  • 55000108404Not stocked
    Upper tube×1
  • 65000202830
    $432.03
    ROTOR-COMPLETE - 5000202830×1
  • 75000203409
    $88.01
    CONNECTOR-ELECTRIC - 5000203409×1
  • 85002000058
    $0.22
    RING SEAL 16 X 20.5 X 0.8,PG16 - 5002000058×1
  • 95100002126
    $2.48
    3 hole plug - 5100002126×2
  • 105000202267
    $215.91
    BEARING SET - 5000202267×1
  • 135000218381
    $13.09
    RING-SPACER - 5000218381×2
  • 145000202829
    $1.10
    SPRING-CUP - 5000202829×4
  • 155000202836
    $6.81
    RING - 5000202836×1
  • 165100002432
    $5.75
    Screw connection cpl. - 5100002432×1
  • 205000034123Not stocked
    Thrust washer×1
  • 215000034114Not stocked
    Intermediate pipe×1
  • 225000017097Not stocked
    Notched pin×4
  • 235000034122Not stocked
    Rubber ring×1
  • 245000034117Not stocked
    Washer×1
  • 255000034147Not stocked
    Locking plate×1
  • 265000034146Not stocked
    Groove nut×1
  • 275000037581Not stocked
    Ring×2
