Internal Vibrator IREN 65

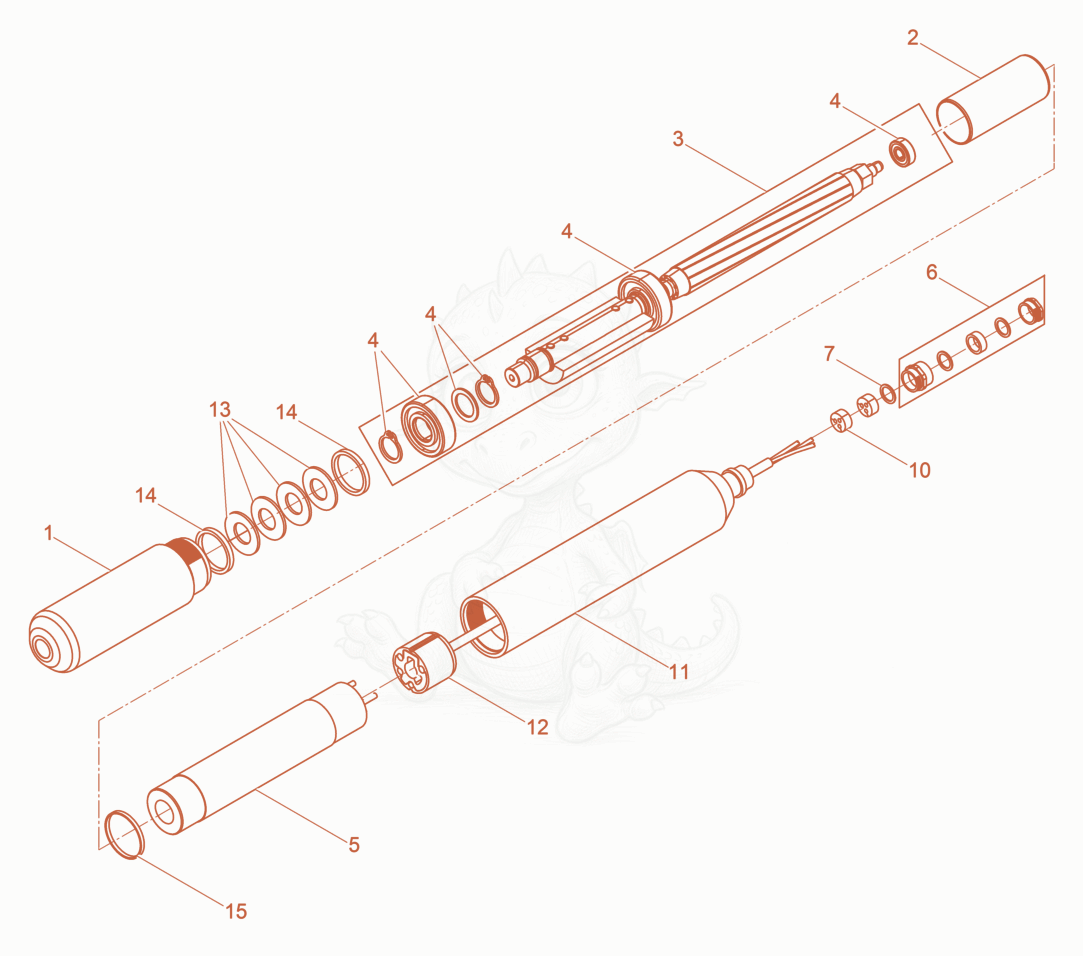

IREN65 Internal Vibrator cpl. Diagram
- TUBE-LOWER - 5000205407×1
- SLEEVE-DISTANCE - 5000205426×1
- COUPLING-MOTOR ARMATURE - 5000205412×1
- BEARING SET - 5000202267×1
- Stator (ND) - 5100002591×1
- Screw connection cpl. - 5100002432×1
- RING SEAL 16 X 20.5 X 0.8,PG16 - 5002000058×1
- 3 hole plug - 5100002126×2
- TUBE-UPPER - 5000105722×1
- CONNECTOR-ELECTRIC - 5000203409×1
- SPRING-CUP - 5000202829×4
- RING-SPACER - 5000218381×2
- RING - 5000202836×1
