IRSE-FU 45/230/03

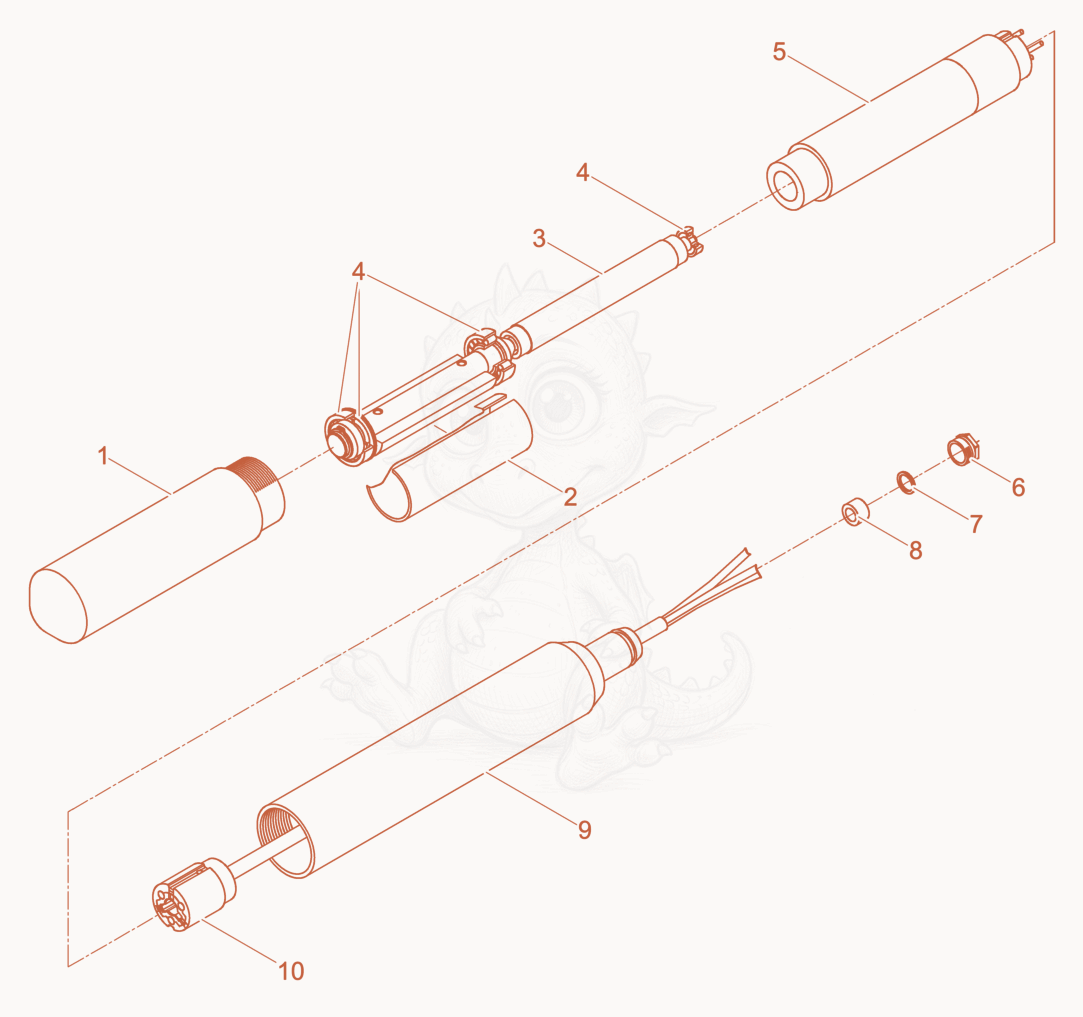

IRSE-FU45/230LASER Internal Vibrator cpl. Diagram
- TUBE-LOWER - 5000105719×1
- SLEEVE-DISTANCE - 5000106438×1
- ROTOR-COMPLETE - 5000108242×1
- BEARING SET - 5000202269×1
- Stator X-5000219476 - 5000106979×1
- CONNECTOR-BODY - 5002003793×1
- RING SEAL 10 X 13.5 X 0.8,PG9 - 5002003795×1
- SEAL-RING 9 X 13.5 X 5.5 - 5002003792×1
- Tube-Upper - 5000218502×1
- CONNECTOR-ELECTRIC - 5000218808×1
