Converter KTU 2/250/200W

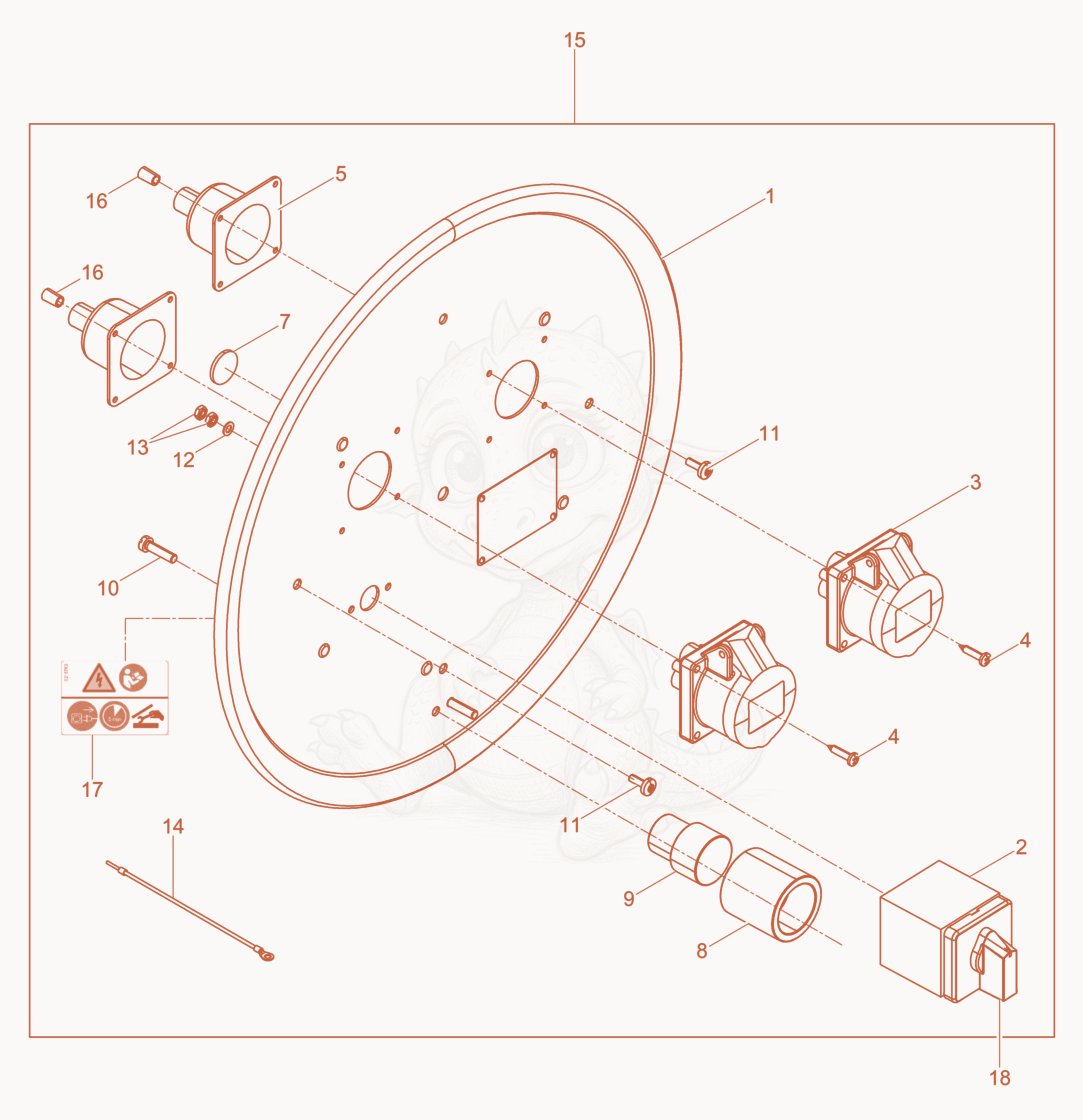

KTU2/250/200W Washer cpl. Diagram

Exploded parts diagram of the Washer cpl. of a Wacker Neuson KTU2/250/200W, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000204170Not stocked
    Washer riveted×1
  • 25000200920
    $107.09
    SWITCH-EMERGENCY STOP - 5000200920×1
  • 35000203425Not stocked
    Mounting socket×2
  • 45000069468
    $0.13
    SCREW B3.9 X 19, - 5000069468×8
  • 55000212677
    $3.48
    Protective cap - 5000212677×2
  • 75000099898
    $11.41
    Filter - 5000099898×1
  • 85000201919
    $71.40
    Knob - 5000201919×1
  • 95000201920
    $95.34
    Crank - 5000201920×1
  • 105000013176Not stocked
    Cheese head screw×2
  • 115000201251
    $0.13
    SCREW-TORX - 5000201251×4
  • 125000200988
    $0.40
    WASHER-LOCK,TOOTHED - 5000200988×1
  • 135000010872
    $0.01
    NUT M4 8,HEX. - 5000010872×1
  • 145000204106Not stocked
    Ground wire cpl.×2
  • 155000204171Not stocked
    Washer cpl.×1
  • 165000219422Not stocked
    Protective cap×8
  • 175000218763
    $8.79
    LABEL-WARNING - 5000218763×1
  • 185000219558
    $73.29
    HANDLE-REPLACEMENT,SWITCH - 5000219558×1
