LTC4L-LIGHT TOWER,LOMBARDINI

LTC4L Mast cpl./Manual Winch System Diagram

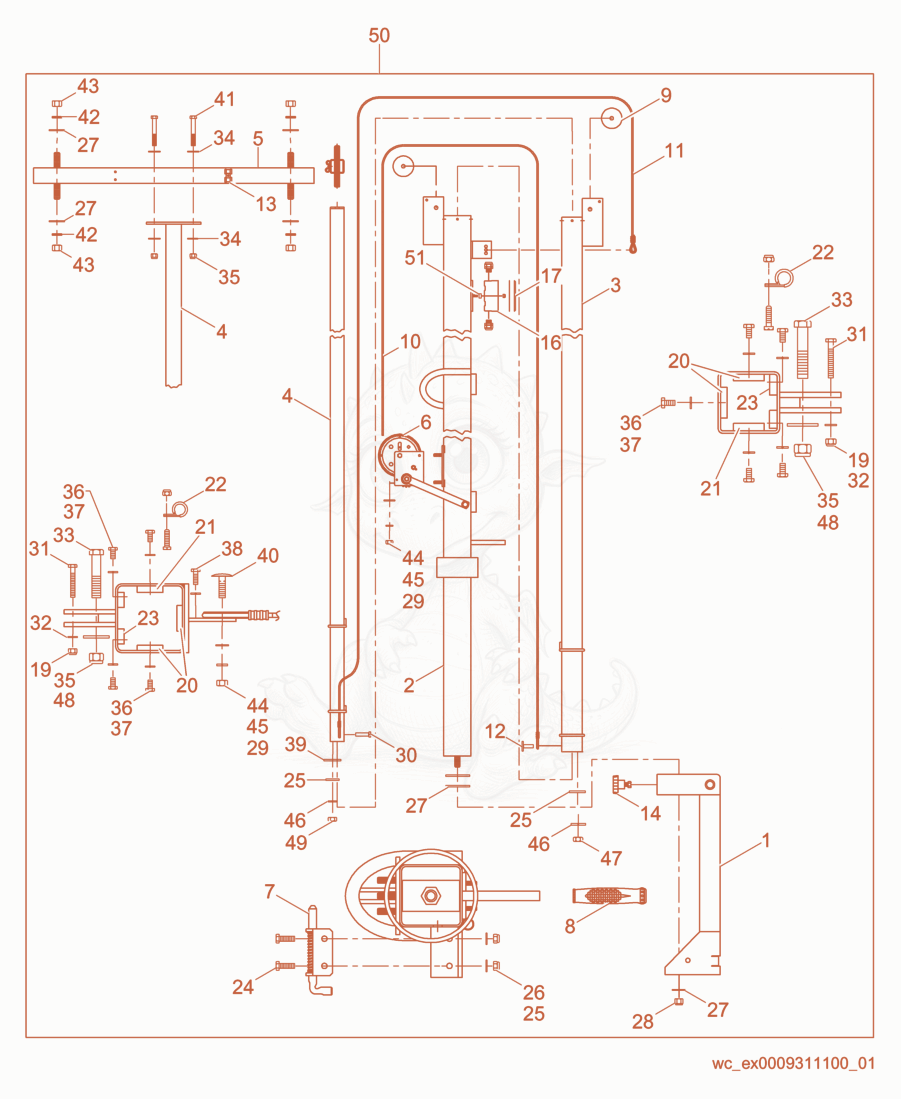

Exploded parts diagram of the Mast cpl./Manual Winch System of a Wacker Neuson LTC4L, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000155524
    $1,131.00
    TUBE-SUPPORT,BASE TOWER SWIVEL - 5000155524×1
  • 25000155525
    $1,636.64
    TUBE-TOWER 4 SECTION - 5000155525×1
  • 35000155526
    $914.12
    TUBE-TOWER 3 SECTION - 5000155526×1
  • 45000155527
    $401.50
    TUBE-TOWER 2 SECTION - 5000155527×1
  • 55000155528
    $416.36
    NLA-TUBE-2 TEE,BOLT-ON LIGHT SPRT - 5000155528×1
  • 65000155529
    $564.16
    WINCH-MNL,TOWER MNT,1500 LB - 5000155529×1
  • 75000155530
    $104.70
    LATCH-TOWER SECTIONS - 5000155530×1
  • 85000155531
    $19.50
    HANDLE-GRIP,TOWER ROTATION - 5000155531×1
  • 95000155532
    $31.77
    PULLEY-SINGLE GROOVE - 5000155532×3
  • 105000155533
    $172.43
    CABLE ASSY-17' LG,MOVES 3 SECT - 5000155533×1
  • 115000155534
    $109.09
    CABLE ASSY-11'LG,MOVES 2 SECT - 5000155534×1
  • 125000155535
    $7.12
    BOLT 5/16-18,CABLE ANCHOR,SS - 5000155535×1
  • 135000155536
    $18.54
    CLAMP-LOOM 3/8 - 5000155536×2
  • 145000155537
    $20.88
    KNOB-SWIVEL BASE LOCK - 5000155537×1
  • 165000155595Not stocked
    Junction box cpl.×1
  • 175000155589
    $39.24
    COVER-W/GASKET,JCT BOX - 5000155589×1
  • 195000025633
    $0.06
    NUT-LOCK 1/4-20,HEX,NYLON INS. - 5000025633×6
  • 205000155539
    $13.75
    GUIDE BLOCK-TOWER SECTIONS - 5000155539×4
  • 215000155540
    $7.70
    GUIDE BLOCK-TOWER SECTIONS - 5000155540×2
  • 225000155541
    $13.39
    CLAMP-LOOM 5/8 - 5000155541×2
  • 235000155542
    $12.61
    GUIDE BLOCK-TOWER SECTIONS - 5000155542×4
  • 245000025546
    $0.12
    SCREW 5/16-18 X 1 GR5,HX.HD. - 5000025546×2
  • 255000025636
    $0.04
    WASHER 5/16 NOM,ST,FLAT - 5000025636×11
  • 265000025634
    $0.22
    NUT-LOCK 5/16-18,HEX,NYLON INS - 5000025634×2
  • 275000025640
    $0.15
    WASHER 3/4 NOM,FLAT STEEL - 5000025640×9
  • 285000051676
    $0.58
    NUT-LOCK 3/4-10,HEX,NYL.INSERT - 5000051676×1
  • 295000025637
    $0.06
    WASHER 3/8 NOM,STEEL,FLAT - 5000025637×6
  • 305000025547
    $0.13
    SCREW 5/16-18 X 1-1/4 GR5,HXHD - 5000025547×1
  • 315000026670
    $0.65
    SCREW 1/4-20 X 1-3/4 GR5,HX.HD - 5000026670×2
  • 325000025635
    $0.02
    WASHER 1/4 NOM,STEEL,FLAT - 5000025635×2
  • 335000025690
    $1.17
    SCREW 1/2-13 X 2-1/2,HX.HD. - 5000025690×2
  • 345000025639
    $0.11
    WASHER 1/2 NOM,STEEL,FLAT - 5000025639×10
  • 355000025724
    $0.35
    NUT-LOCK 1/2-13,HEX,NYLON - 5000025724×4
  • 365000155555
    $0.98
    BOLT 1/4-20 X 1/2 ,HEX HD - 5000155555×9
  • 375000155556
    $0.95
    WASHER 1/4 ,LOCK - 5000155556×10
  • 385000020567Not stocked
    Hexagonal head cap screw×1
  • 395000155558
    $2.76
    WASHER 5/16 ,FENDER - 5000155558×1
  • 405000155559
    $2.70
    BOLT 3/8-16 X 1-1/4 ,CARRIAGE - 5000155559×1
  • 415000155560
    $4.52
    BOLT 1/2-13 X 3-1/2 ,HEX HD - 5000155560×2
  • 425000155561
    $3.20
    WASHER 3/4 ,LOCK - 5000155561×4
  • 435000153210
    $8.60
    NUT 3/4-10 - 5000153210×4
  • 445000025617
    $0.07
    NUT 3/8-16,HEX - 5000025617×4
  • 455000025649
    $0.04
    WASHER-LOCK 3/8,MED. - 5000025649×6
  • 465000025648
    $0.29
    WASHER-LOCK 5/16,MED - 5000025648×11
  • 475000025616
    $0.19
    NUT 5/16-18,HEX - 5000025616×8
  • 485000155848
    $1.10
    WASHER 1/2 ,FLAT,SS - 5000155848×4
  • 505000155573
    $6,402.02
    TUBE-TOWER CMPLT,30',W/MNL WIN - 5000155573×1
  • 505000155523
    $5,289.27
    TUBE-TOWER ASY-30',W/O MAN WNH - 5000155523×1
  • 515000155881
    $8.34
    Washer-rubber - 5000155881×2
