LTC4L-LIGHT TOWER,LOMBARDINI

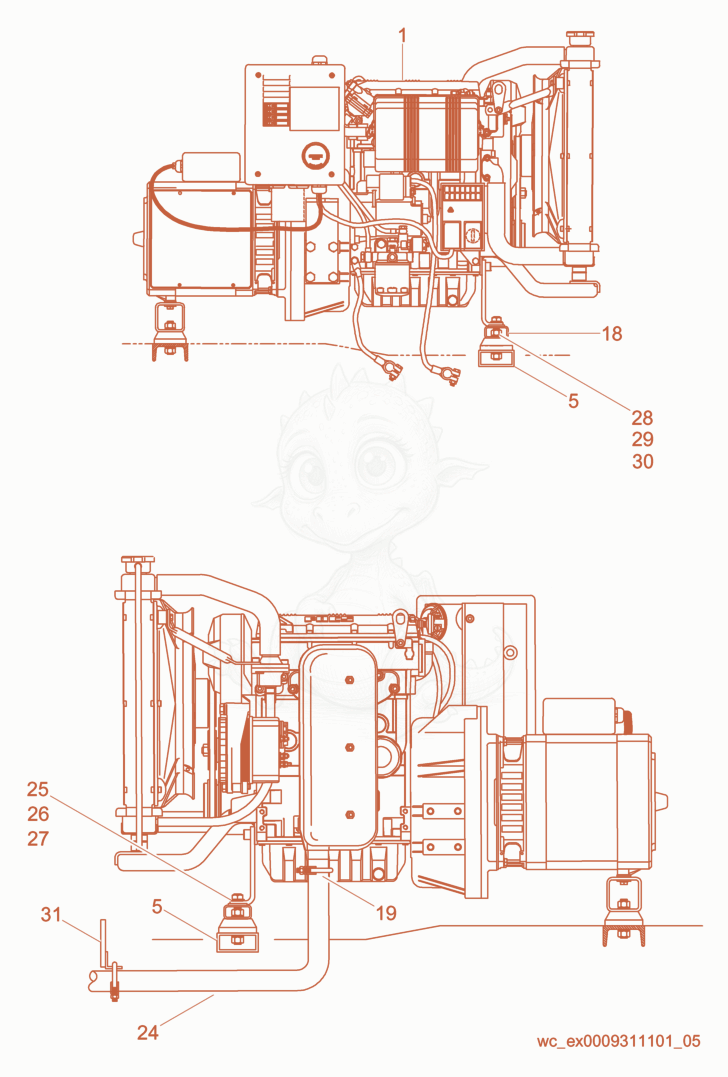

LTC4L Engine Support/Exhaust Pipe Diagram

Exploded parts diagram of the Engine Support/Exhaust Pipe of a Wacker Neuson LTC4L, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000155357
    $8,129.28
    ENGINE-LOMBARDINI - 5000155357×1
  • 55000155567
    $43.43
    MOUNT-VIBRATION,ENGINE,40 DUR - 5000155567×2
  • 185000155568
    $75.09
    TUBE-ENGINE RISER - 5000155568×1
  • 195000155569
    $13.32
    CLAMP 1-1/2 OD,U-BOLT - 5000155569×1
  • 245000155596Not stocked
    Exhaust pipe×1
  • 255000025689
    $1.88
    SCREW 1/2-13 X 2 GR5,HX.HD. - 5000025689×2
  • 265000160715
    $3.20
    WASHER 1/2 - 5000160715×1
  • 275000160740
    $2.89
    X-5000025724 NUT-LOCK - 5000160740×1
  • 285000155571
    $1.16
    BOLT 3/8-16 X 2 ,HEX HD - 5000155571×2
  • 295000160741
    $3.06
    WASHER 3/8 - 5000160741×1
  • 305000025723
    $0.09
    NUT-LOCK 3/8-16,HEX,NYLON INS. - 5000025723×2
  • 315000155675
    $57.65
    MOUNT-EXHAUST PIPE HANGER - 5000155675×1
