LTC4L-LIGHT TOWER,LOMBARDINI

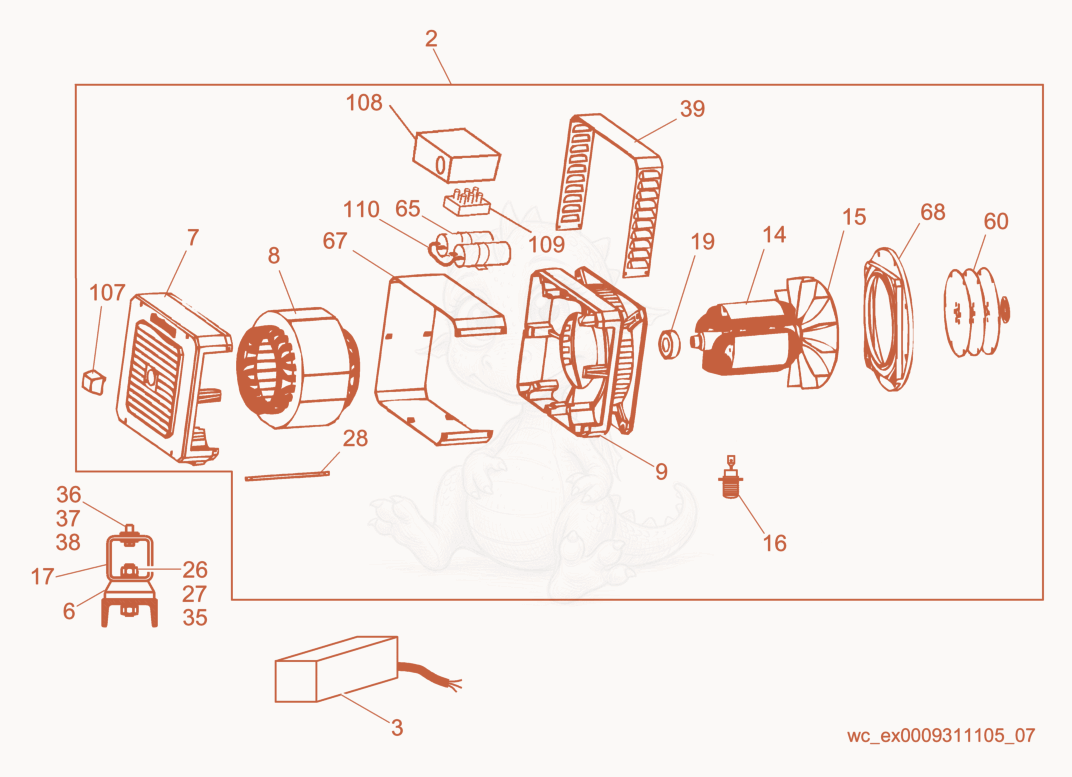

LTC4L Generator cpl. Diagram

Exploded parts diagram of the Generator cpl. of a Wacker Neuson LTC4L, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 25000155597Not stocked
    Generator×1
  • 35000155574
    $805.29
    Ballast Assy Metal Halide 5000155574×4
  • 65000155575
    $59.27
    MOUNT-VIBRATION,GEN.,30 DUROM,M12X1.75 - 5000155575×2
  • 75000155598Not stocked
    Rear cover×1
  • 85000155599Not stocked
    Stator×1
  • 95000155601
    $213.00
    COVER-FRONT - 5000155601×1
  • 145000155602Not stocked
    Rotor×1
  • 155000155603
    $51.84
    FAN - 5000155603×1
  • 165000155606Not stocked
    Diode×2
  • 175000155576
    $139.84
    NLA TUBE-RISER,GENERATOR - 5000155576×1
  • 195000155605Not stocked
    Bearing×1
  • 265000025639
    $0.11
    WASHER 1/2 NOM,STEEL,FLAT - 5000025639×2
  • 275000025650
    $0.50
    WASHER-LOCK 1/2,MED. - 5000025650×2
  • 285000155608
    $19.00
    X-5000028949 BOLT-COVER - 5000155608×4
  • 355000155578
    $3.63
    NUT 1/2-20,HEX - 5000155578×2
  • 365000011456
    $0.29
    SCREW M8 X 30 HX.HD. - 5000011456×2
  • 375000025636
    $0.04
    WASHER 5/16 NOM,ST,FLAT - 5000025636×2
  • 385000025648
    $0.29
    WASHER-LOCK 5/16,MED - 5000025648×2
  • 395000155609
    $54.81
    SCREEN-FAN (IP23) - 5000155609×1
  • 605000155614
    $28.48
    PLATE-FLEX SAE 5-6.5,6-HOLE - 5000155614×2
  • 655000158577
    $116.06
    CAPACITOR-18 MFD W/TIE WRAP - 5000158577×2
  • 675000155945Not stocked
    Metal cover band×1
  • 685000155627
    $143.31
    NLA FLANGE-ENGINE MOUNTING - 5000155627×1
  • 1075000155670
    $16.92
    NLA-PLUG-REAR COVER - 5000155670×1
  • 1085000155947
    $153.70
    COVER-CAPACITOR - 5000155947×1
  • 1095000155948
    $52.67
    MODULE-TERMINAL - 5000155948×1
  • 1105000158578
    $29.49
    WIRE-JUMPER - 5000158578×2
