LTC4L-LIGHT TOWER,LOMBARDINI

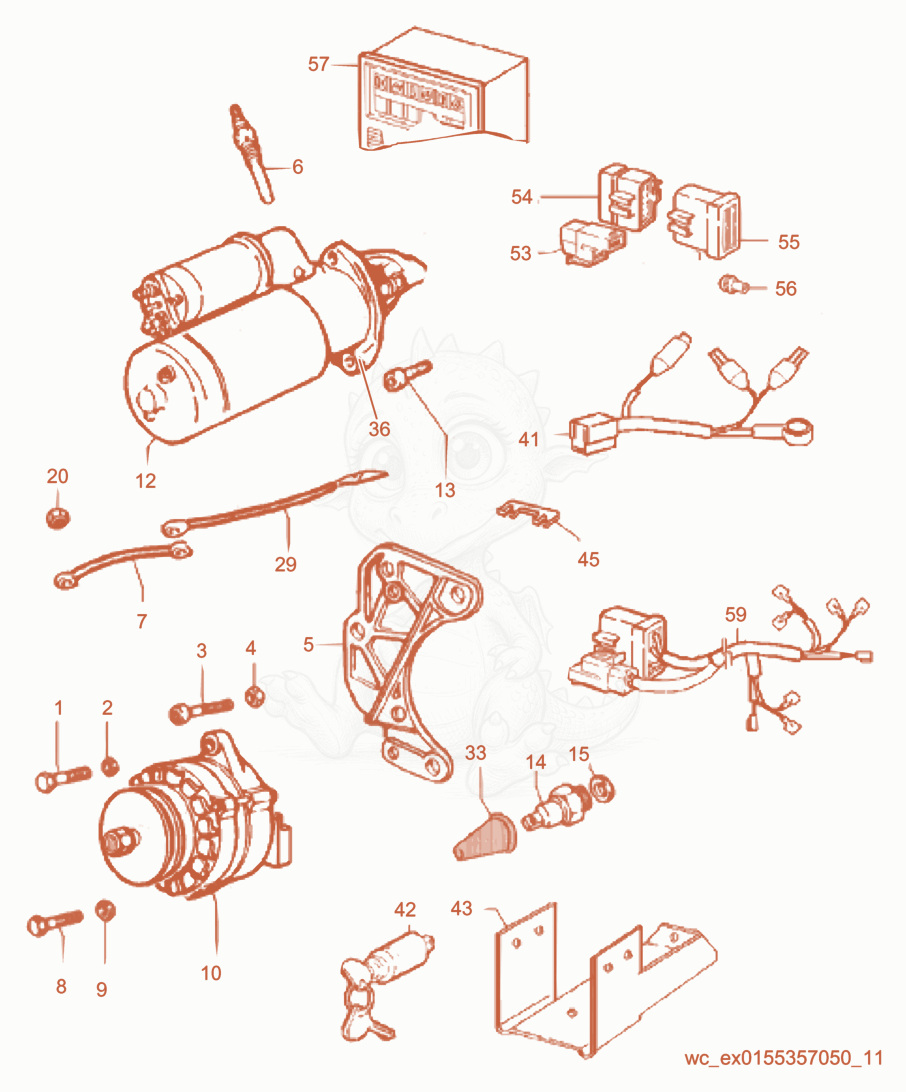

LTC4L Electrical Components Diagram

Exploded parts diagram of the Electrical Components of a Wacker Neuson LTC4L, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000160187
    $4.14
    BOLT M10 X 70 - 5000160187×1
  • 25000160232
    $11.64
    WASHER DIAM.10 - 5000160232×1
  • 35000159476
    $2.00
    SCREW M8 X 1.25 X 30 - 5000159476×3
  • 45000083011
    $1.54
    NUT M10 - 5000083011×1
  • 55000160347
    $110.97
    ALTERNATOR SUPPORT 45-65-80 A - 5000160347×1
  • 65000155748
    $57.44
    GLOW PLUG 12V - 5000155748×3
  • 75000159259
    $11.64
    WIRE-GLOW PLUG - 5000159259×2
  • 85000160187
    $4.14
    BOLT M10 X 70 - 5000160187×1
  • 95000160232
    $11.64
    WASHER DIAM.10 - 5000160232×1
  • 105000155749
    $941.69
    ALTERNATOR-12V,45A - 5000155749×1
  • 125000155750
    $1,146.09
    MOTOR-STARTING 12V,1.1KW - 5000155750×1
  • 135000084164
    $3.88
    SCREW M10 X 30 - 5000084164×2
  • 145000160227Not stocked
    Oil switch×1
  • 155000082184
    $1.54
    WASHER-COPPER - 5000082184×1
  • 205000159271Not stocked
    Nut×3
  • 295000160194
    $20.70
    WIRE-GLOW PLUG - 5000160194×1
  • 335000082254
    $2.84
    ELBOW - 5000082254×1
  • 415000155752
    $95.32
    WIRE-ALTERNATOR CONNECTION - 5000155752×1
  • 425000083016
    $227.67
    SWITCH-IGNITION - 5000083016×1
  • 435000160345
    $122.76
    BRACKET - 5000160345×1
  • 455000155753
    $3.62
    FUSE 80A - 5000155753×1
  • 535000160184
    $33.64
    connector - 5000160184×2
  • 545000160183
    $44.24
    connector - 5000160183×1
  • 555000160182
    $45.80
    connector - 5000160182×1
  • 565000150210
    $333.45
    X-5000058896 HUB ASSEMBLY - 5000150210×2
  • 575000155754
    $1,025.65
    PANEL-ENGINE MONITOR - 5000155754×1
  • 595000155755
    $616.36
    WIRE ASSY-ENGINE PANEL - 5000155755×1
