LTC4L-LIGHT TOWER,50 HZ

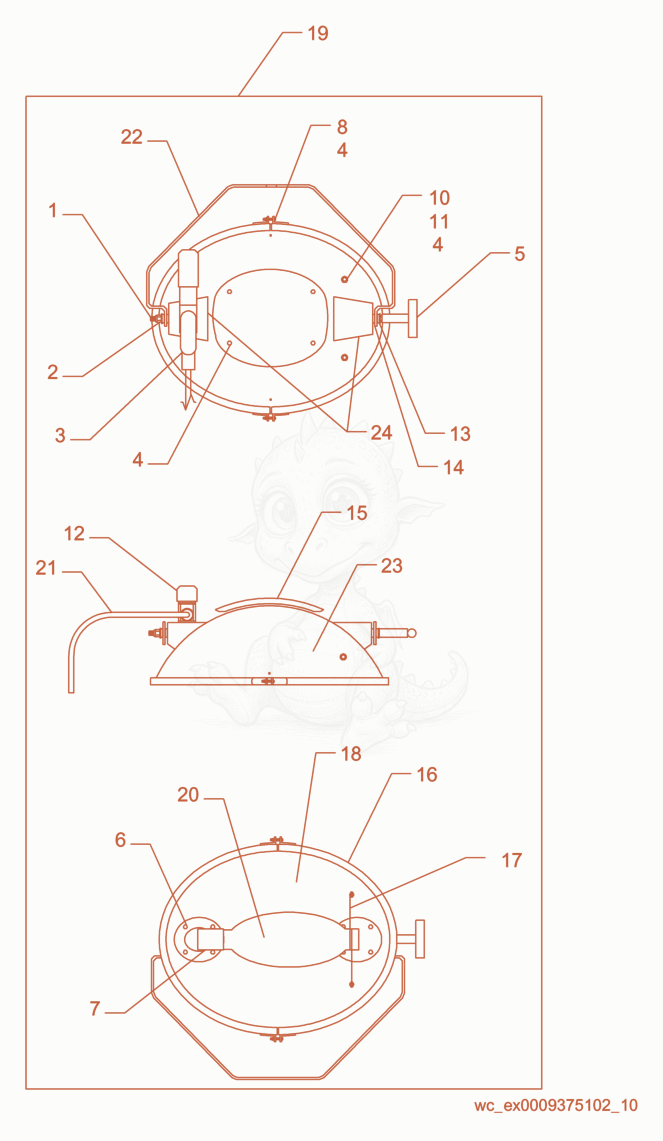

LTC4L Light cpl. Diagram
- STUD - 5000160437×2
- NUT-LOCK - 5000160438×1
- Connector box - 5000161053×1
- NUT-LOCK - 5000160439×8
- KNOB - 5000160440×1
- SCREW W/LOCKWASHER - 5000159718×8
- SOCKET - 5000159719×1
- screw - 5000160441×2
- screw - 5000160442×2
- washer - 5000159723×2
- HANDLE-LIGHT AIM - 5000159724×1
- WASHER-FLAT - 5000159725×2
- 145000159726Not stockedFlat washer×2
- HEATSHIELD - 5000159727×1
- RING W/ADJUSTING CLAMP - 5000159728×2
- BRACKET-BULB - 5000159729×1
- LENS W/GASKET - 5000160176×1
- LIGHT ASSEMBLY - 5000163138×1
- LIGHT-BULB-1000W - 5000160191×1
- CABLE - 5000179053×1
- YOKE - 5000160443×1
- REFLECTOR-OVAL - 5000161052×4
- SET-ALUMINUM ENDS,LEFT/RIGHT - 5000163416×4
