LTC4L-LIGHT TOWER,50HZ CE,115V

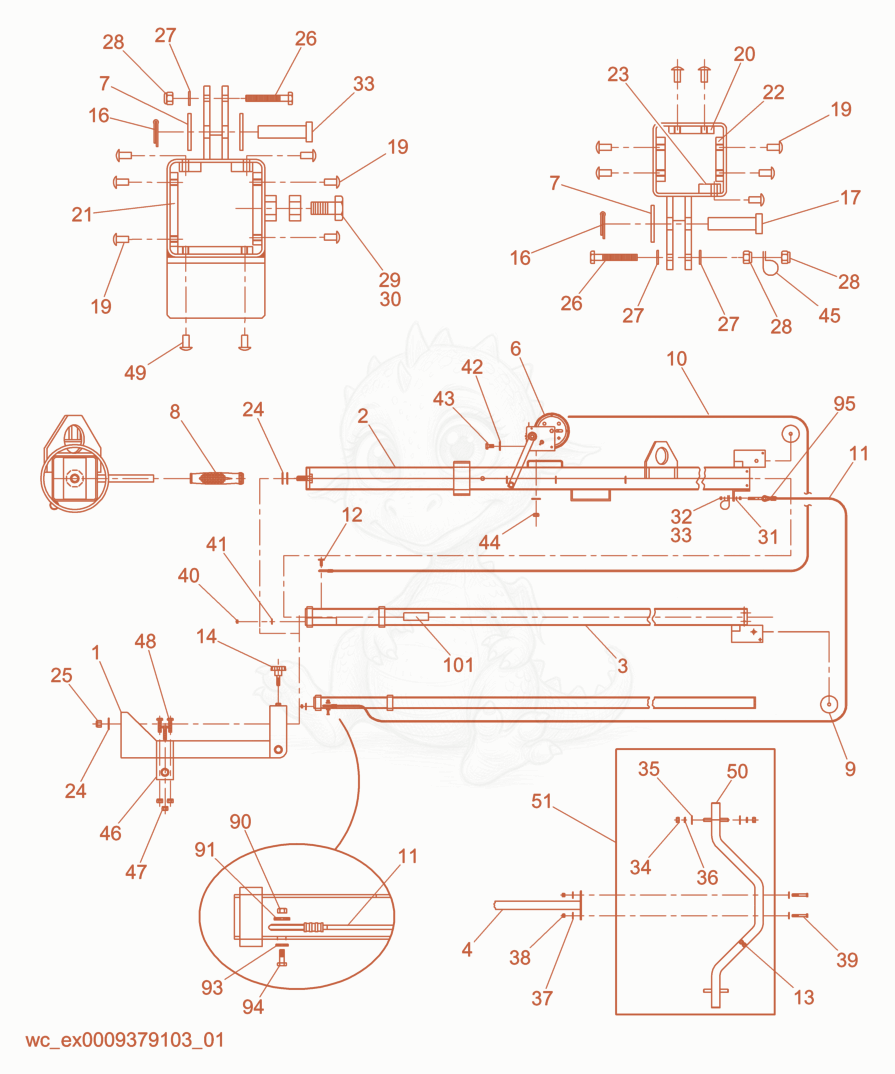

LTC4L Mast cpl./Manual Winch System Diagram
- BASE-SWIVEL - 5000159596×1
- TUBE - 5000159591×1
- TUBE - 5000159603×1
- TUBE - 5000159604×1
- WINCH-MNL,TOWER MNT,1500 LB - 5000155529×1
- WASHER 1/2 ,FLAT,SS - 5000155848×2
- HANDLE-GRIP,TOWER ROTATION - 5000155531×1
- PULLEY-SINGLE GROOVE - 5000155532×2
- CABLE ASSY-17' LG,MOVES 3 SECT - 5000155533×1
- CABLE ASSEMBLY, 123 - 5000162178×1
- BOLT 5/16-18,CABLE ANCHOR,SS - 5000155535×2
- CLAMP-LOOM 3/8 - 5000155536×2
- KNOB - 5000159634×1
- PIN-COTTER - 5000159601×2
- PIN-CLEVIS - 5000159632×2
- screw - 5000160508×13
- guide - 5000159628×1
- guide - 5000159626×3
- guide - 5000159627×2
- guide - 5000159640×3
- washer - 5000159639×3
- NUT-LOCK - 5000159641×1
- screw - 5000159617×2
- WASHER-FLAT - 5000159635×6
- X-5000010368 NUT-LOCK×2
- nut - 5000159624×1
- SCREW - 5000160432×1
- WASHER 3/8 ,SPLIT,LOCKING - 5000163155×2
- X-5000025617 NUT 3/8 -16,HEX - 5000155618×4
- WASHER-FLAT - 5000159579×4
- Nut - 5000160433×4
- WASHER-FLAT - 5000159642×4
- WASHER-LOCK - 5000159643×4
- WASHER-FLAT - 5000159638×4
- X-5000117614 NUT-LOCK - 5000159625×2
- X-0011382 SCREW M16X90 - 5000159620×2
- X-5000025634 LOCKNUT - 5000159573×2
- WASHER 5/16 ,FENDER - 5000155558×2
- WASHER-FLAT - 5000159636×3
- screw - 5000159618×3
- X-5000010365 NUT-LOCK - 5000159629×3
- CLAMP-P - 5000160434×2
- LATCH-BOLT - 5000160449×1
- X-5000030066 NUT - 5000160467×3
- SCREW - 5000160466×3
- screw - 5000160509×2
- Plug - 5000160539×2
- T-BAR ASSEMBLY - 5000160522×1
- X-5000010367 LOCKNUT-M8×1
- WASHER-FENDER 3/8 - 5000155587×1
- WASHER-FLAT,M8 - 5000161648×1
- SCREW-HEX HD,M8 - 5000161540×1
- BOLT-U - 5000162177×1
- REFLECTOR,RED - 5000155652×1
