LTE4K

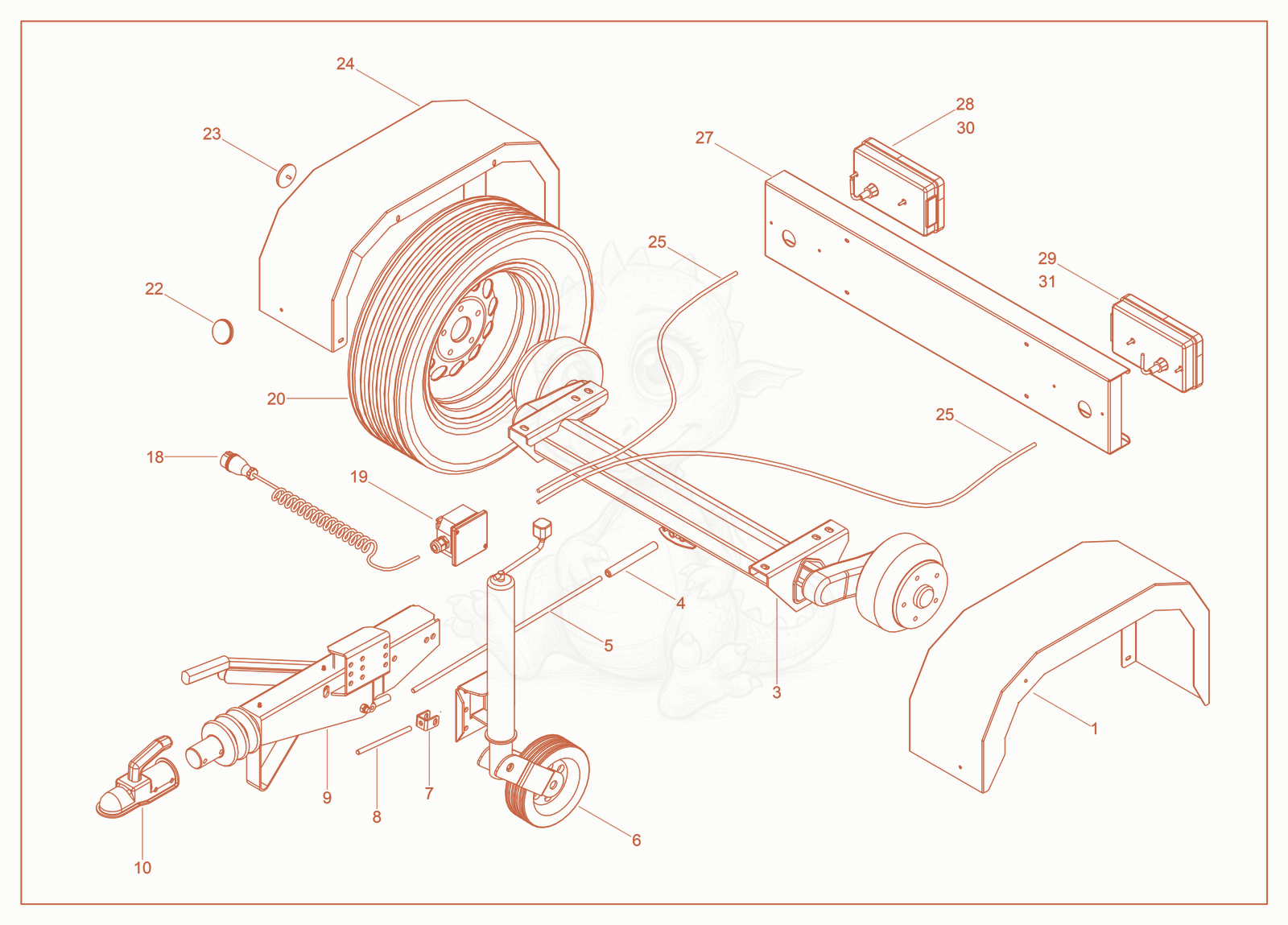

LTE4K Front Jack/Wheel Kit Diagram

Exploded parts diagram of the Front Jack/Wheel Kit of a Wacker Neuson LTE4K, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100043655Not stocked
    Fender (right)×1
  • 35100041088Not stocked
    Axle×1
  • 45100044328Not stocked
    Slide pin×1
  • 55100041090Not stocked
    Tie rod-Rear×1
  • 65100041091Not stocked
    Wheel×1
  • 75100041092Not stocked
    Bracket×2
  • 85100041093Not stocked
    Tie rod-Front×1
  • 95100041094Not stocked
    Channel×1
  • 105100041096Not stocked
    Hitch×1
  • 185100043659Not stocked
    Wiring harness-trailer lights×1
  • 195100044330Not stocked
    Junction box×1
  • 205100041106Not stocked
    Wheel×2
  • 225100041108Not stocked
    Reflecter (white)×2
  • 235100044331Not stocked
    Reflecter (Orange)×1
  • 245100043656Not stocked
    Fender (left)×1
  • 255100066473Not stocked
    REAR LIGHT HARNESS×1
  • 275100041111Not stocked
    Light bar bracket×1
  • 285100041113Not stocked
    Light (right)×1
  • 295100041112Not stocked
    Light (left)×1
  • 305100066065Not stocked
    RIGHT SIDE LIGHT×1
  • 315100066064Not stocked
    LEFT SIDE LIGHT×1
