LTE4K

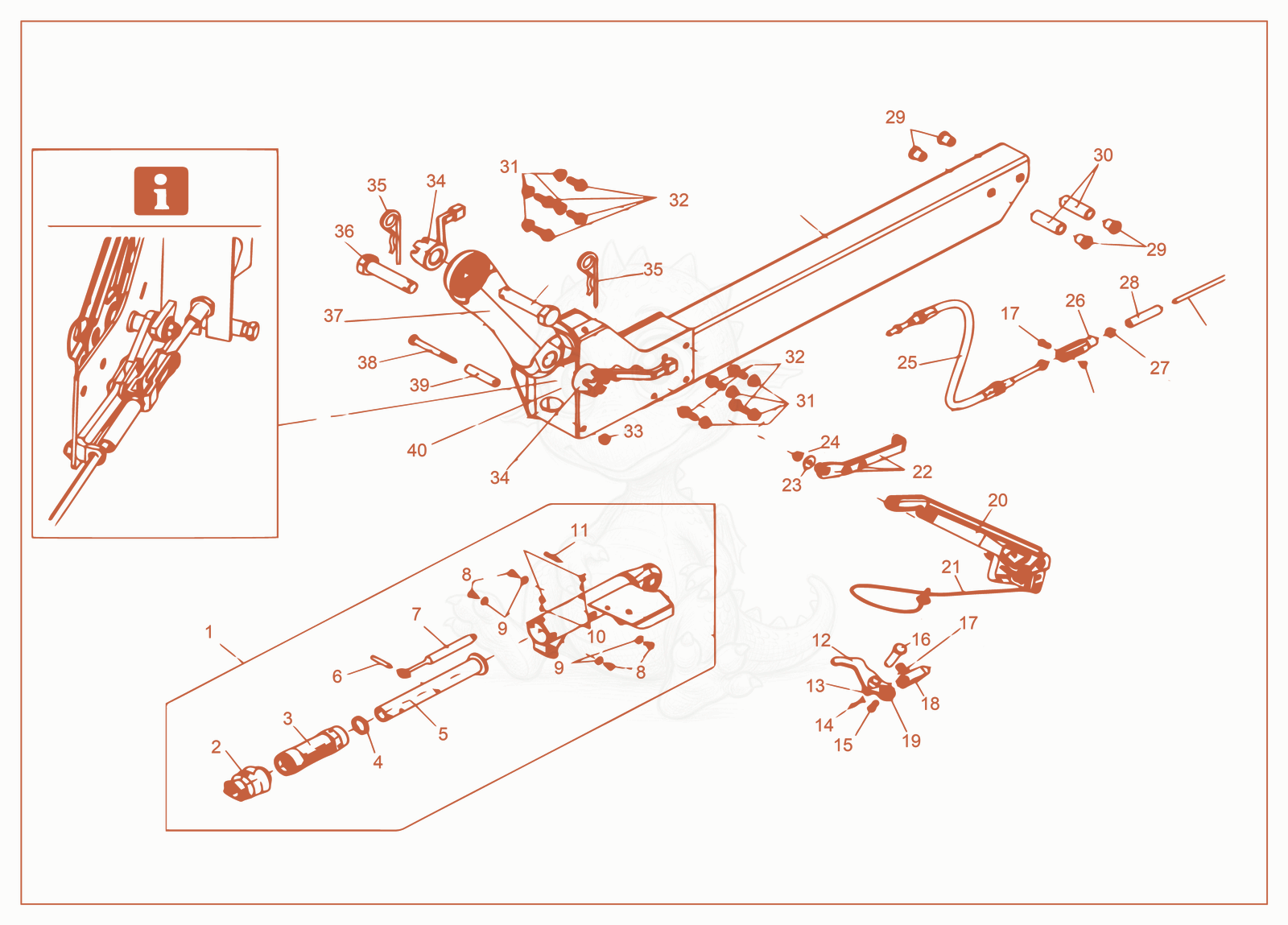

LTE4K Tow Bar Complete Diagram
- 15100062097Not stockedOverrun Device×1
- 25100078729Not stockedBellow×1
- 35100062099Not stockedbearing cartridge×1
- 45100078731Not stockedRing×1
- 55100062101Not stockedTUBE-DRAWER ASSY×1
- 65100062102Not stockedClamp×1
- 75100062103Not stockedSHOCK ABSORBER×1
- 85100062104Not stockedHex Bolt×4
- 95100062105Not stockedWasher×4
- 105100062106Not stockedGrease Nipple×2
- 115100062108Not stockedClamp×1
- 125100062109Not stockedBell Crank×1
- 135100062110Not stockedGrease Nipple×1
- 145100062111Not stockedSplit Pin×1
- 155100062112Not stockedbolt×1
- 165100062113Not stockedBolt×1
- 175100062114Not stockedSCREW×2
- 185100062115Not stockedFork Head×1
- 195100062116Not stockedTriangle Segment for Bell Crank×1
- 205100062117Not stockedHandbrake Lever×1
- 215100062118Not stockedcable×1
- 225100062120Not stockedBELLCRANK×1
- 235100062121Not stockedWasher×1
- 245100062122Not stockedHEX NUT×1
- 255100062123Not stockedBowden cable×1
- 265100062125Not stockedFork Head×1
- 275100062126Not stockedHEX NUT×1
- 285100062127Not stockedSleeve×1
- 295100062129Not stockedBushing×4
- 305100062130Not stockedSLEEVE×2
- 315100062132Not stockedHEX NUT×8
- 325100062133Not stockedHex Bolt×8
- 335100062134Not stockedHEX NUT×1
- 345100062135Not stockedClamp Handle×2
- 355100062136Not stockedPin×2
- 365100062137Not stockedBOLT-BEARING×1
- 375100062138Not stockedArm×1
- 385100062139Not stockedHex Bolt×1
- 395100062140Not stockedSleeve×1
- 405100062141Not stockedAdapter×1
- 405100062142Not stockedAdapter×1
