LTE4K

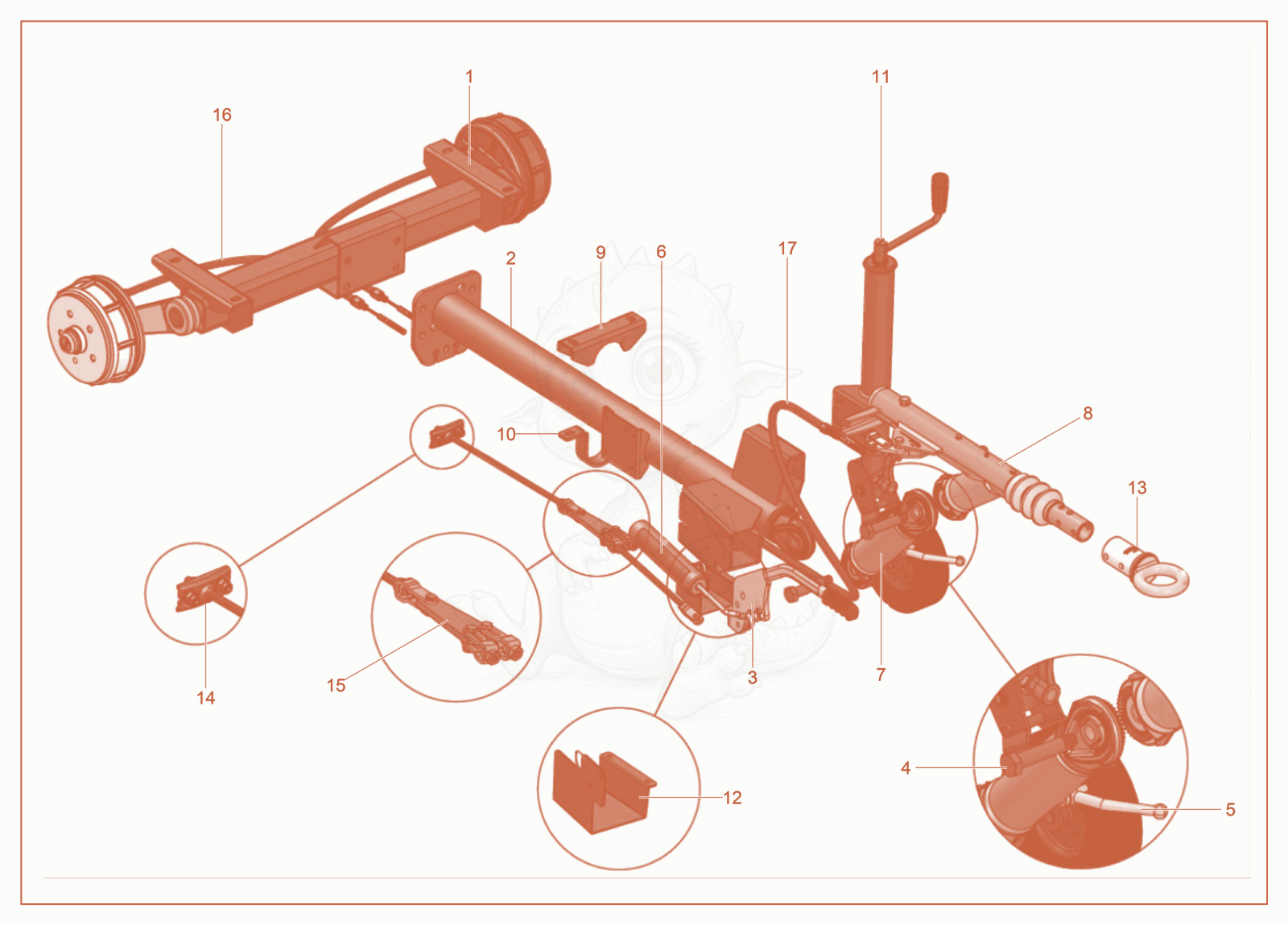

LTE4K Tow Bar Complete Diagram

Exploded parts diagram of the Tow Bar Complete of a Wacker Neuson LTE4K, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100078649Not stocked
    AXLE×1
  • 25100078650Not stocked
    TOW BAR×1
  • 35100078651Not stocked
    Handbrake Lever×1
  • 45100078653Not stocked
    Locking Screw×2
  • 55100078654Not stocked
    Handle×2
  • 65100078627Not stocked
    Barrel×1
  • 75100078628Not stocked
    Intermediate Tow Bar×1
  • 85100078655Not stocked
    Repulsor×1
  • 95100078657Not stocked
    Bracket×1
  • 105100078712Not stocked
    Collar×1
  • 115100078713Not stocked
    Wheel assembly×1
  • 125100078715Not stocked
    Guard×1
  • 135100078716Not stocked
    Pintle Hitch×1
  • 145100078717Not stocked
    Brake Balancer×1
  • 155100078719Not stocked
    Connection plate×1
  • 165100078720Not stocked
    Break rope×2
  • 175100078630Not stocked
    Break rope×1
