LTE4K

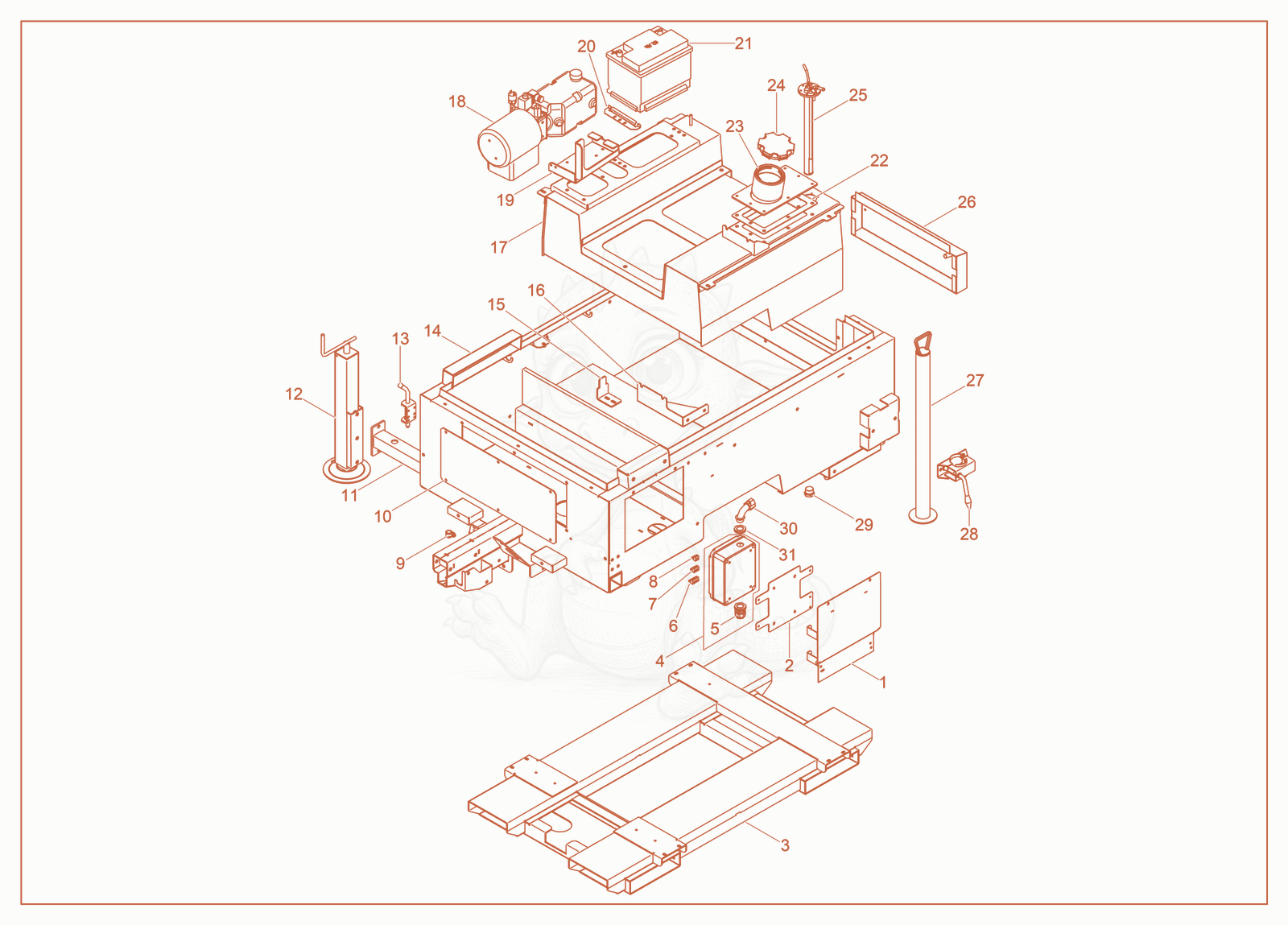

LTE4K Skid Assembly Diagram

Exploded parts diagram of the Skid Assembly of a Wacker Neuson LTE4K, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100041023Not stocked
    Bracket×1
  • 25100041053Not stocked
    Bracket×1
  • 35100043377Not stocked
    Fork pocket×1
  • 45100043762Not stocked
    Junction box×1
  • 55100040791Not stocked
    Cord grip×1
  • 65100041024Not stocked
    Connector housing, 5 pole×1
  • 75100041052Not stocked
    Connector housing, 3 pole×1
  • 85100040996Not stocked
    Connector housing, 2 pole×1
  • 95100040779Not stocked
    Hose clamp×1
  • 105100041031Not stocked
    Front cover×1
  • 115100040675Not stocked
    Tube×2
  • 125100042650Not stocked
    Support-adjustable×2
  • 135100040676Not stocked
    Locking pin×2
  • 145100043730Not stocked
    Frame cpl.×1
  • 155100041030Not stocked
    Bracket×1
  • 165100043376Not stocked
    Bracket×1
  • 175100041046Not stocked
    Fuel tank×1
  • 185100044285Not stocked
    Hydraulic unit×1
  • 195100041040Not stocked
    Bracket×1
  • 205100040859Not stocked
    Battery holder×2
  • 215100040860Not stocked
    Battery×1
  • 225100041044Not stocked
    Gasket×1
  • 235100041043Not stocked
    Fuel tank bracket×1
  • 245100041041Not stocked
    Fuel tank cap×1
  • 255100041042Not stocked
    Fuel level gauge×1
  • 265100041045Not stocked
    Rear cover×1
  • 275100043552Not stocked
    Stabilizer×2
  • 285100040837Not stocked
    Clamp×2
  • 295100041026Not stocked
    Cap plug×1
  • 305100040857Not stocked
    Elbow fitting×1
  • 315100041051Not stocked
    Nut×1
