LTN4Y RH

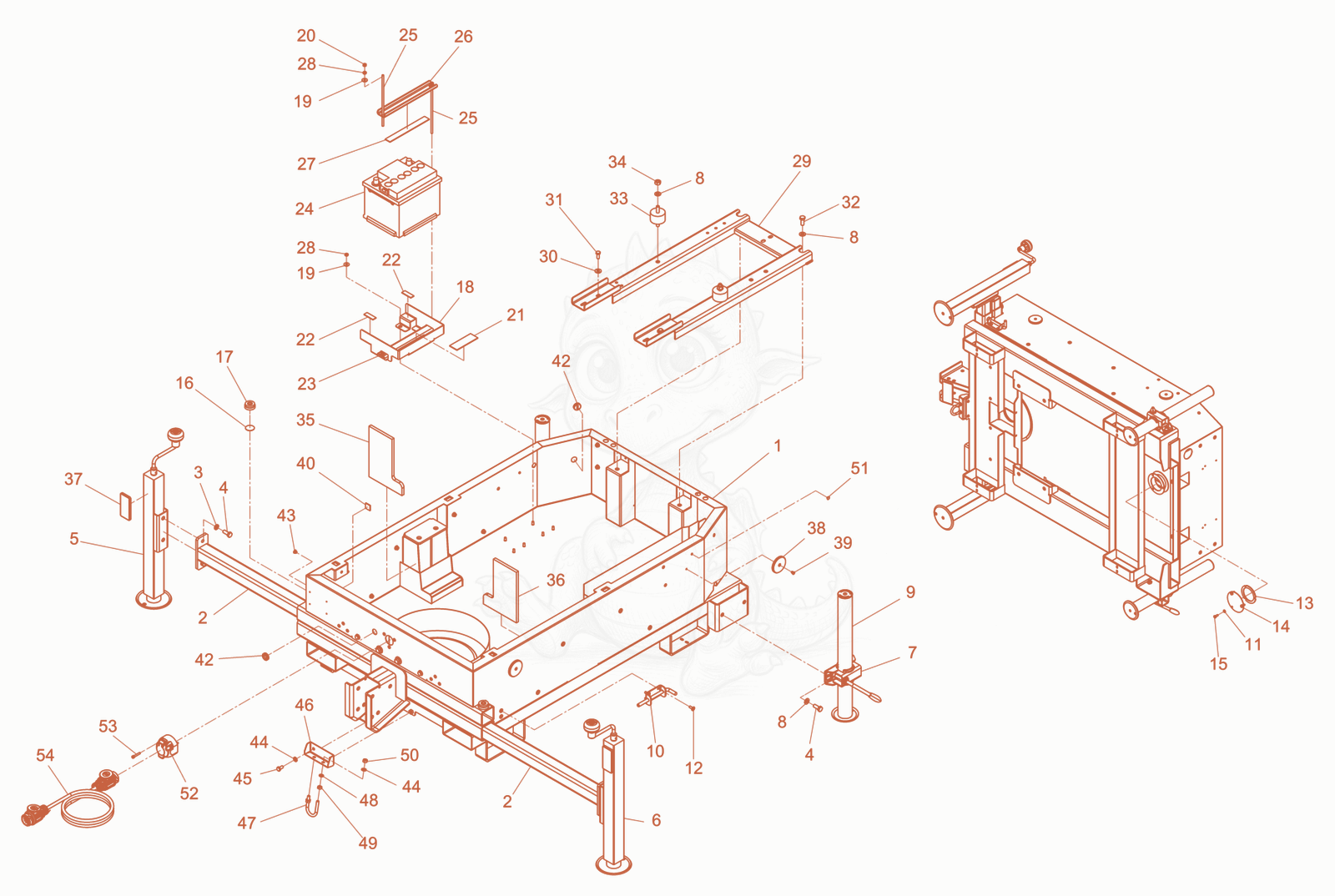

LTN4YRH frame with axle suspension Diagram

Exploded parts diagram of the frame with axle suspension of a Wacker Neuson LTN4YRH, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100007629Not stocked
    Frame×1
  • 25100007488Not stocked
    Brace×2
  • 35100006629
    $2.12
    Lock washer A10 - 5100006629×4
  • 45100007485Not stocked
    Hexagonal head cap screw×8
  • 55100007556Not stocked
    lifting jack×1
  • 65100007557Not stocked
    lifting jack×1
  • 75100007010Not stocked
    shackle×2
  • 85100006551
    $1.64
    Washer - 5100006551×8
  • 95100007302Not stocked
    support leg×2
  • 105100007171Not stocked
    spring bolt×2
  • 115100006546
    $0.35
    Washer - 5100006546×3
  • 125100007134Not stocked
    cheese head screw×8
  • 125100006661
    $6.37
    Bolt - 5100006661×8
  • 135100007239Not stocked
    Profiled joint×0.25
  • 145100007303Not stocked
    Covering×1
  • 155100006539
    $2.12
    Hexhead screw - 5100006539×3
  • 165100007304Not stocked
    Adhesive tape×2
  • 175100007305Not stocked
    spirit level×2
  • 185100007444Not stocked
    Holder×1
  • 195100006920
    $0.75
    Washer 6,4 - 5100006920×8
  • 205100006542
    $1.60
    Nut - 5100006542×2
  • 215100007446Not stocked
    Pad×1
  • 225100007445Not stocked
    Pad×2
  • 235100007447Not stocked
    Battery support×1
  • 245100007309Not stocked
    Battery×1
  • 255100007448Not stocked
    Threaded bolt×2
  • 265100007450Not stocked
    Battery support×1
  • 275100007449Not stocked
    Pad×1
  • 285100006560
    $0.62
    Nut - 5100006560×8
  • 295100007311Not stocked
    Engine mounting×1
  • 305100006547
    $1.60
    Washer - 5100006547×2
  • 315100006559
    $4.25
    Hexhead screw - 5100006559×2
  • 325100006556
    $8.49
    Hexhead screw - 5100006556×2
  • 335100007310Not stocked
    Shockmount×2
  • 345100006544
    $6.11
    Nut - 5100006544×2
  • 355100007320Not stocked
    Gasket right×1
  • 365100007321Not stocked
    Gasket left×1
  • 375100007324Not stocked
    reflector×2
  • 385100007318Not stocked
    reflector×4
  • 395100007317Not stocked
    Blind rivet×4
  • 405100007313Not stocked
    cable tie×2
  • 425100007081Not stocked
    plug×2
  • 435100007325Not stocked
    Plug×1
  • 445100006553
    $0.88
    Washer - 5100006553×4
  • 455100006558
    $3.76
    Hexhead screw - 5100006558×2
  • 465100007645Not stocked
    Holder×1
  • 475100007326Not stocked
    U-bolt×1
  • 485100007319Not stocked
    Lock washer×2
  • 495100006562
    $1.99
    Nut - 5100006562×2
  • 505100006543
    $3.00
    Nut - 5100006543×2
  • 515100007630Not stocked
    Plug×2
  • 525100007655Not stocked
    Socket×1
  • 535100006911Not stocked
    Cheese head screw×3
  • 545100007656Not stocked
    extension cable×1
