LTN5Y UK

LTN5YUK Trailer with brake Diagram

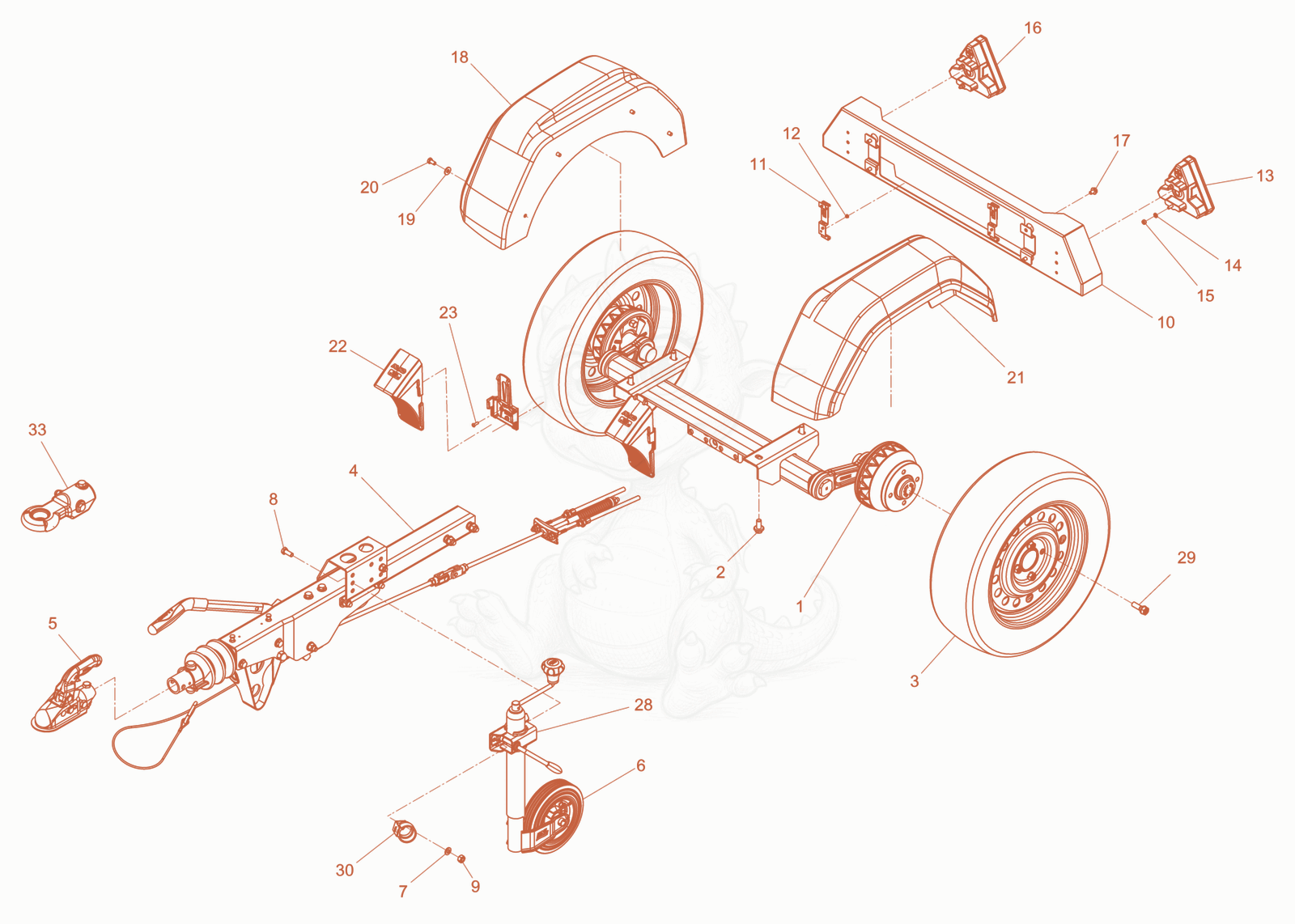

Exploded parts diagram of the Trailer with brake of a Wacker Neuson LTN5YUK, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100006991Not stocked
    axle with brake×1
  • 25100006992Not stocked
    hexagonal head cap screw×4
  • 35100007413Not stocked
    Wheel cpl.×2
  • 45100006994Not stocked
    trailer drawbar×1
  • 55100006995Not stocked
    trailer hitch×1
  • 65100006996Not stocked
    support wheel×1
  • 75100006551
    $1.64
    Washer - 5100006551×2
  • 85100006556
    $8.49
    Hexhead screw - 5100006556×2
  • 95100006544
    $6.11
    Nut - 5100006544×2
  • 105100006997Not stocked
    holder×1
  • 105100006998Not stocked
    retaining clip×2
  • 105100006999Not stocked
    blind rivet×6
  • 135100007000Not stocked
    rear light, left×1
  • 145100006546
    $0.35
    Washer - 5100006546×4
  • 155100006542
    $1.60
    Nut - 5100006542×4
  • 165100007001Not stocked
    rear light, right×1
  • 175100007002Not stocked
    hexagonal head cap screw×4
  • 185100007003Not stocked
    guard plate right×1
  • 195100006547
    $1.60
    Washer - 5100006547×8
  • 205100006558
    $3.76
    Hexhead screw - 5100006558×8
  • 215100007004Not stocked
    guard plate left×1
  • 225100007005Not stocked
    wheel chock×2
  • 235100007290Not stocked
    Countersunk screw×8
  • 285100007010Not stocked
    shackle×1
  • 295100007291Not stocked
    Hexagonal head cap screw×8
  • 305100007294Not stocked
    Holder×1
  • 335100007015Not stocked
    trailer hitch×1
