LTN5YUK Fuel tank Diagram

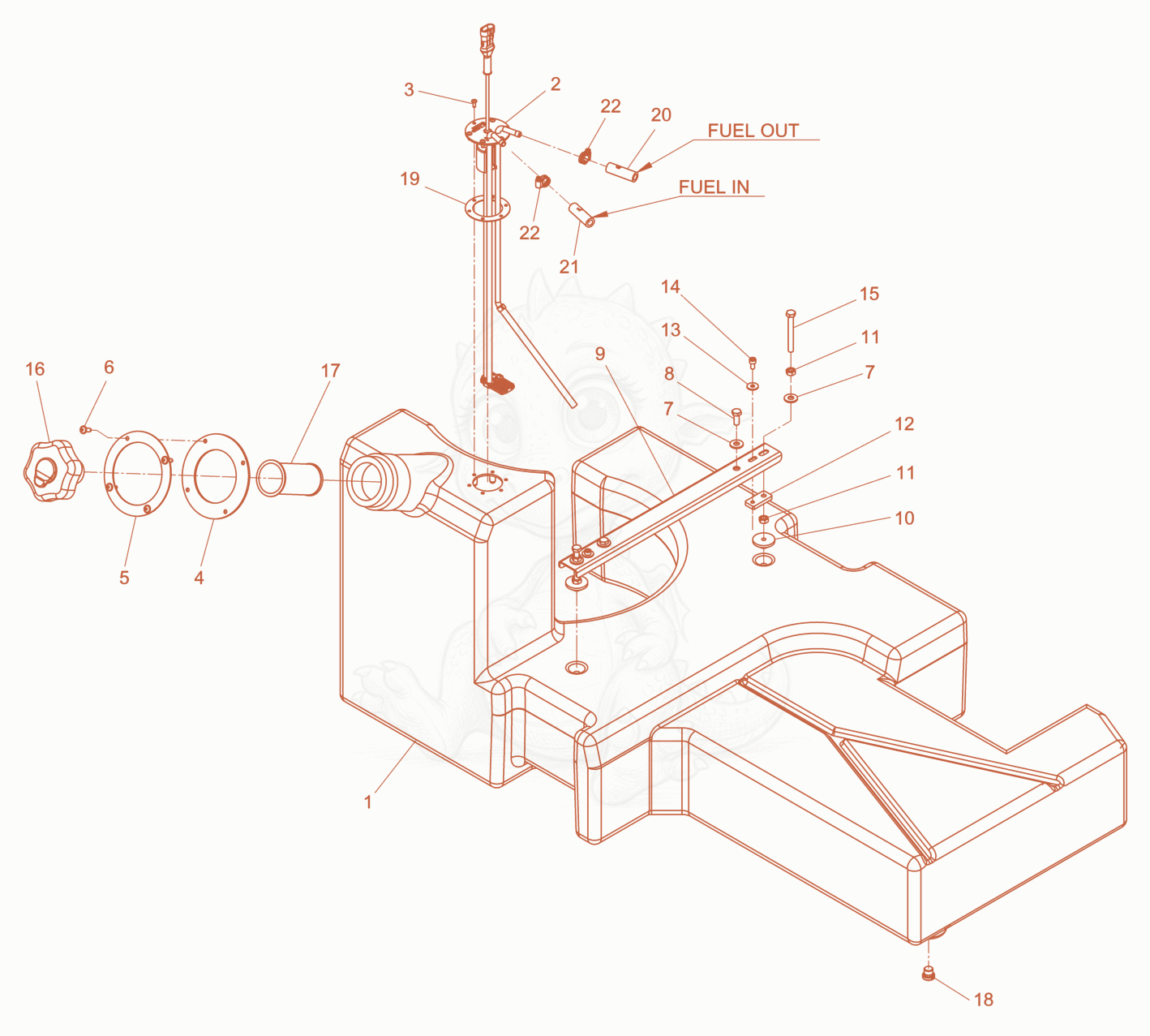

Exploded parts diagram of the Fuel tank of a Wacker Neuson LTN5YUK, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100007016Not stocked
    fuel tank×1
  • 25100007017Not stocked
    fuel gauge×1
  • 35100007018Not stocked
    oval head screw×6
  • 45100007019Not stocked
    gasket×1
  • 55100007020Not stocked
    flange×1
  • 65100007021Not stocked
    oval head screw×4
  • 75100006547
    $1.60
    Washer - 5100006547×4
  • 85100006559
    $4.25
    Hexhead screw - 5100006559×2
  • 95100007022Not stocked
    bar×1
  • 105100007023Not stocked
    shockmount×2
  • 115100006562
    $1.99
    Nut - 5100006562×4
  • 125100007024Not stocked
    spacer×2
  • 135100006920
    $0.75
    Washer 6,4 - 5100006920×2
  • 145100006723
    $4.25
    Cyl. Head screw - 5100006723×2
  • 155100007025Not stocked
    hexagonal head cap screw×2
  • 165000220118
    $13.13
    key - 5000220118Unknown×1
  • 165100007026Not stocked
    tank cover×1
  • 175100007027Not stocked
    strainer×1
  • 185100007028Not stocked
    locking plug×1
  • 195100007029Not stocked
    gasket×1
  • 205100007330Not stocked
    Fuel hose×1
  • 215100007331Not stocked
    Fuel hose×1
  • 225100006527
    $9.39
    Worm drive hose clip 10-16mm - 5100006527×2
