LTN5Y UK

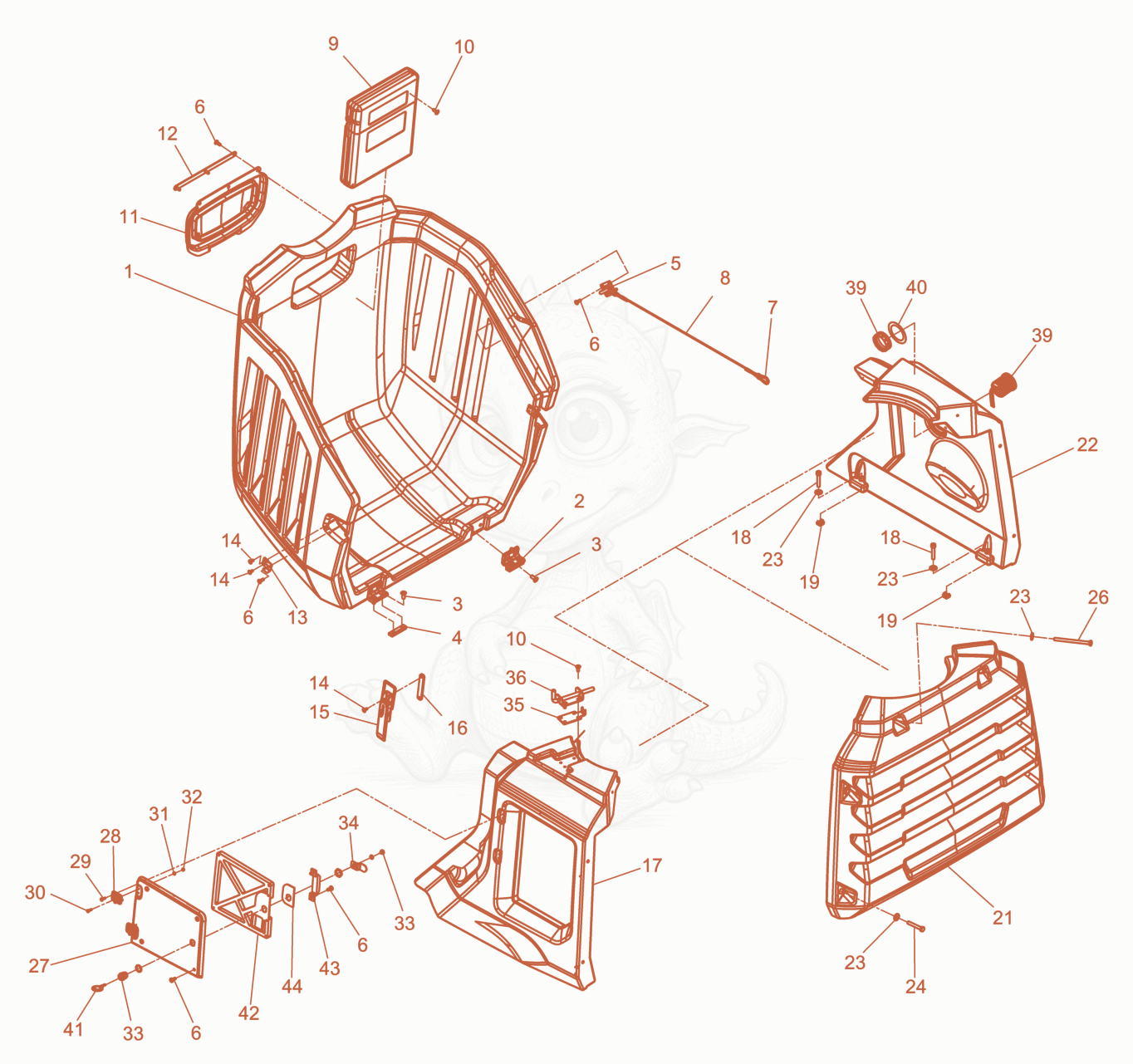

LTN5YUK bonnet Diagram

Exploded parts diagram of the bonnet of a Wacker Neuson LTN5YUK, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100007191Not stocked
    bonnet×1
  • 25100007192Not stocked
    hinge×2
  • 35100007193Not stocked
    countersunk screw×8
  • 45100007194Not stocked
    bar×2
  • 55100007195Not stocked
    hook×1
  • 65100007021Not stocked
    oval head screw×15
  • 75100007231Not stocked
    Snap hook×2
  • 85100007197Not stocked
    cable×1
  • 95100007198Not stocked
    document box×1
  • 105100006661
    $6.37
    Bolt - 5100006661×8
  • 115100007199Not stocked
    covering×1
  • 125100007200Not stocked
    bar×1
  • 135100007201Not stocked
    locking mechanism×2
  • 145100007202Not stocked
    countersunk screw×8
  • 155100007203Not stocked
    locking mechanism×2
  • 165100007204Not stocked
    bar×2
  • 175100007205Not stocked
    hood, right×1
  • 185100006977Not stocked
    Cheese head screw×4
  • 195100007207Not stocked
    nut×4
  • 215100007208Not stocked
    covering×1
  • 225100007209Not stocked
    hood, left×1
  • 235100006547
    $1.60
    Washer - 5100006547×10
  • 265100007211Not stocked
    hexagonal head cap screw×2
  • 275100007212Not stocked
    door×1
  • 285100007213Not stocked
    hinge×2
  • 295100007214Not stocked
    countersunk screw×4
  • 305100007215Not stocked
    countersunk screw×4
  • 315100007062Not stocked
    washer×4
  • 325100007216Not stocked
    hexagon nut×4
  • 335100007217Not stocked
    lock×1
  • 345100007218Not stocked
    locking mechanism×1
  • 355100007219Not stocked
    locking plate×1
  • 365100007171Not stocked
    spring bolt×1
  • 395100007220Not stocked
    tank indicator×1
  • 405100007221Not stocked
    disc×1
  • 415000220118
    $13.13
    key - 5000220118×1
  • 425100007592Not stocked
    door reinforcement×1
  • 435100007593Not stocked
    Door lock reinforcement×1
  • 445100007594Not stocked
    Plate×1
